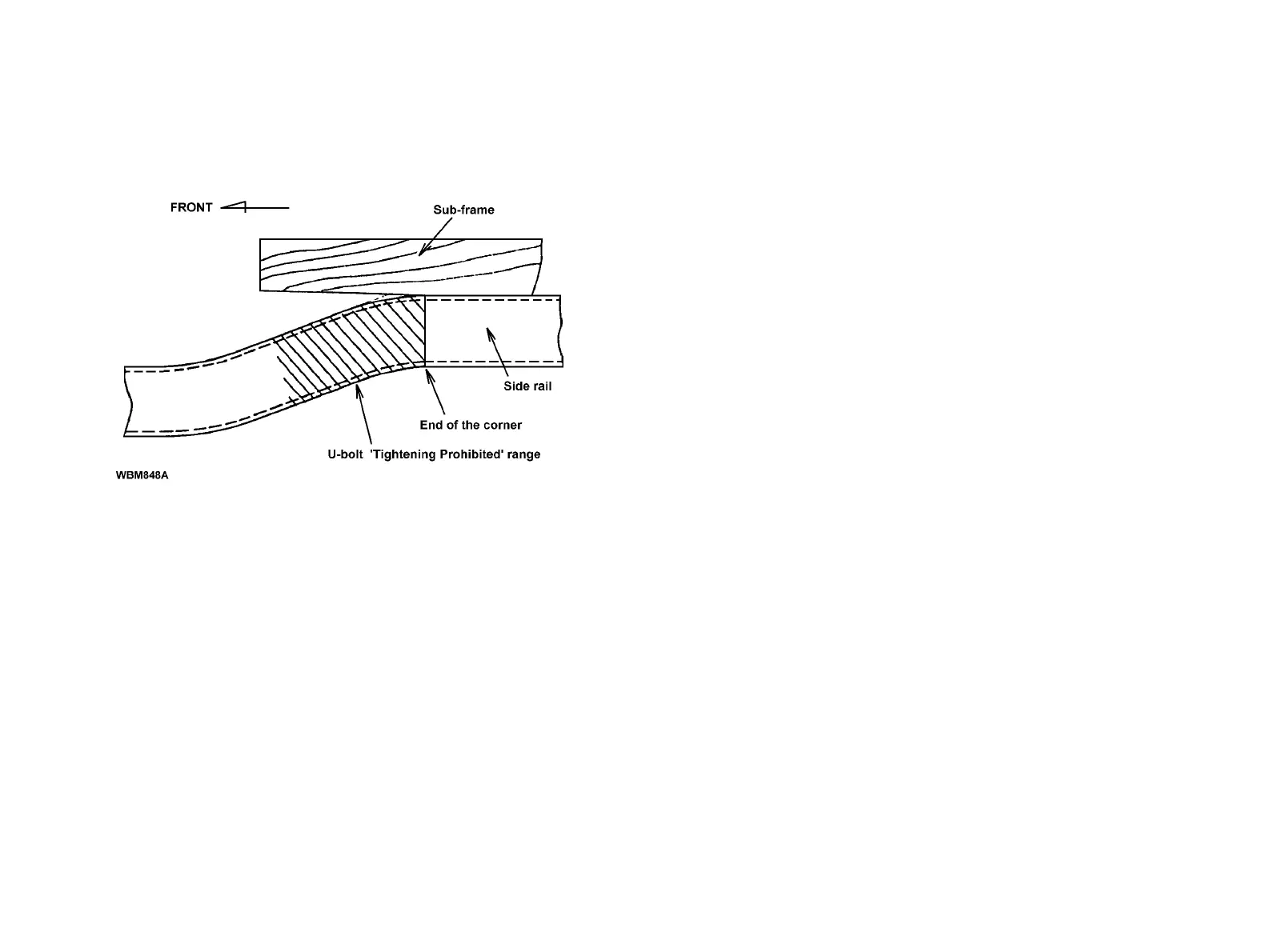

3) U-BOLT “TIGHTENING PROHIBITED” RANGE
a Separate until the U-bolt does not contact the end of the corner where
the height of the chassis frame changes.
b Do not tighten through the use of U-bolts where clearance from the
side rail has been created by the end of the sub-frame or the like.
4) TIGHTENING WITH MOUNTING BRACKETS
Where U-bolts cannot be used, such as when adding tanks, use mounting
brackets for mounting.
a As a rule, use bolts when mounting the mounting brackets to side rail.
When drilling holes, the precautions for drilling holes must be
observed.
b Do not install mounting brackets to side rails in the following areas:
• No more than 7.87 in (200 mm) from the edge of the crossmember
• No more than 1.97 in (50 mm) from the corner of the side rail
• No more than 7.87 in (200 mm) from the edge of the reinforcement
materials.
C16
