Wire color code and Symbol

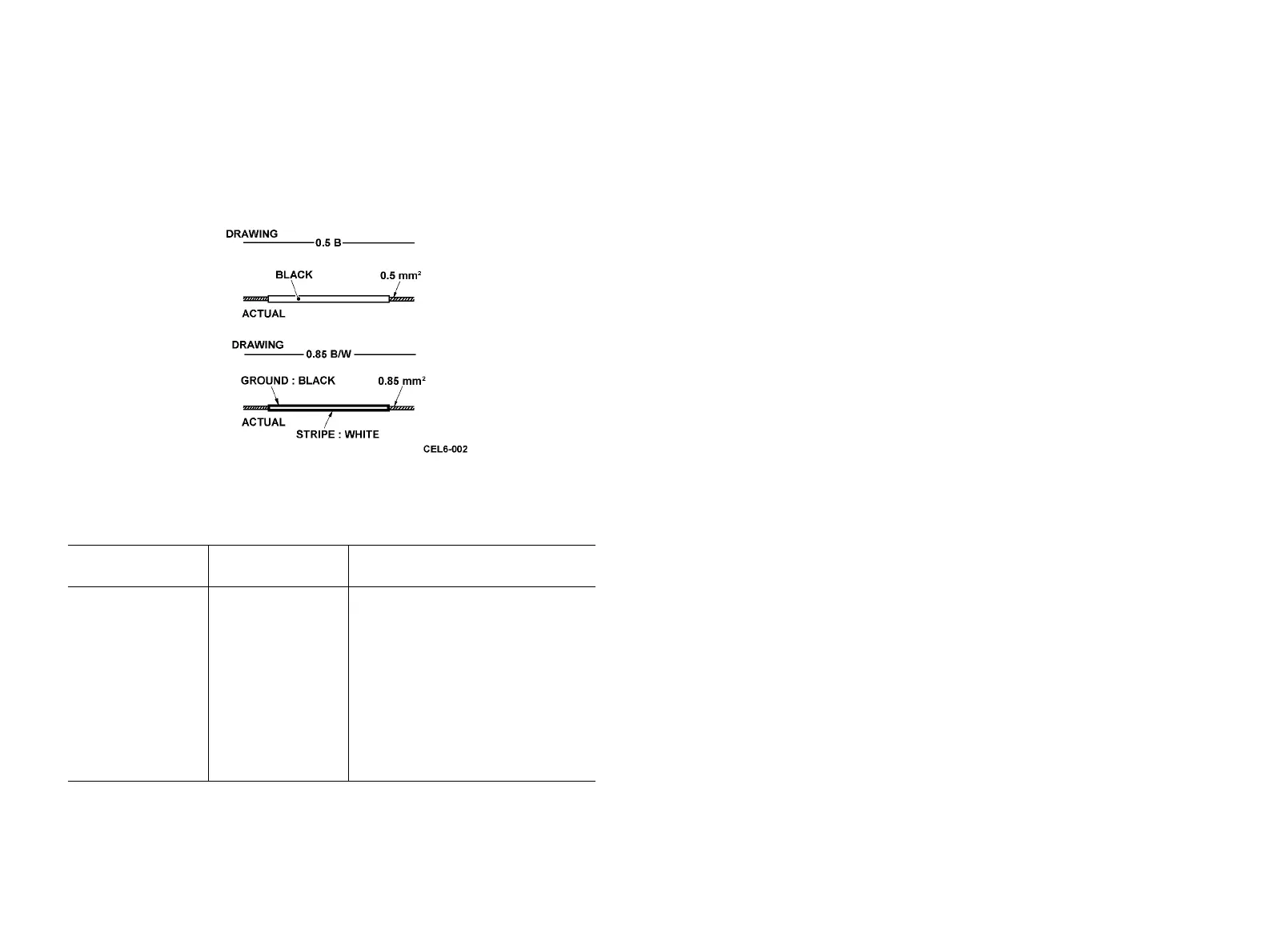

The color of a wire covering is indicated by an alphabetic symbol. If there
are two symbols, the first symbol indicates the ground color of the cover
-
ing and the second one the color of the marking (stripe).
The alphabetical symbols are as follows.
Aiphabetical
symbol
Color
Mainly-used-location
(Circuit name)
W White Power supply
B Black Grounding (earth)
R Red Lighting
Y Yellow Meter
G Green Signal
L Blue Window wiper
BR Brown
LG Light green
GY Gray
