6. POWER SOURCE FOR AUXILIARY EQUIPMENT

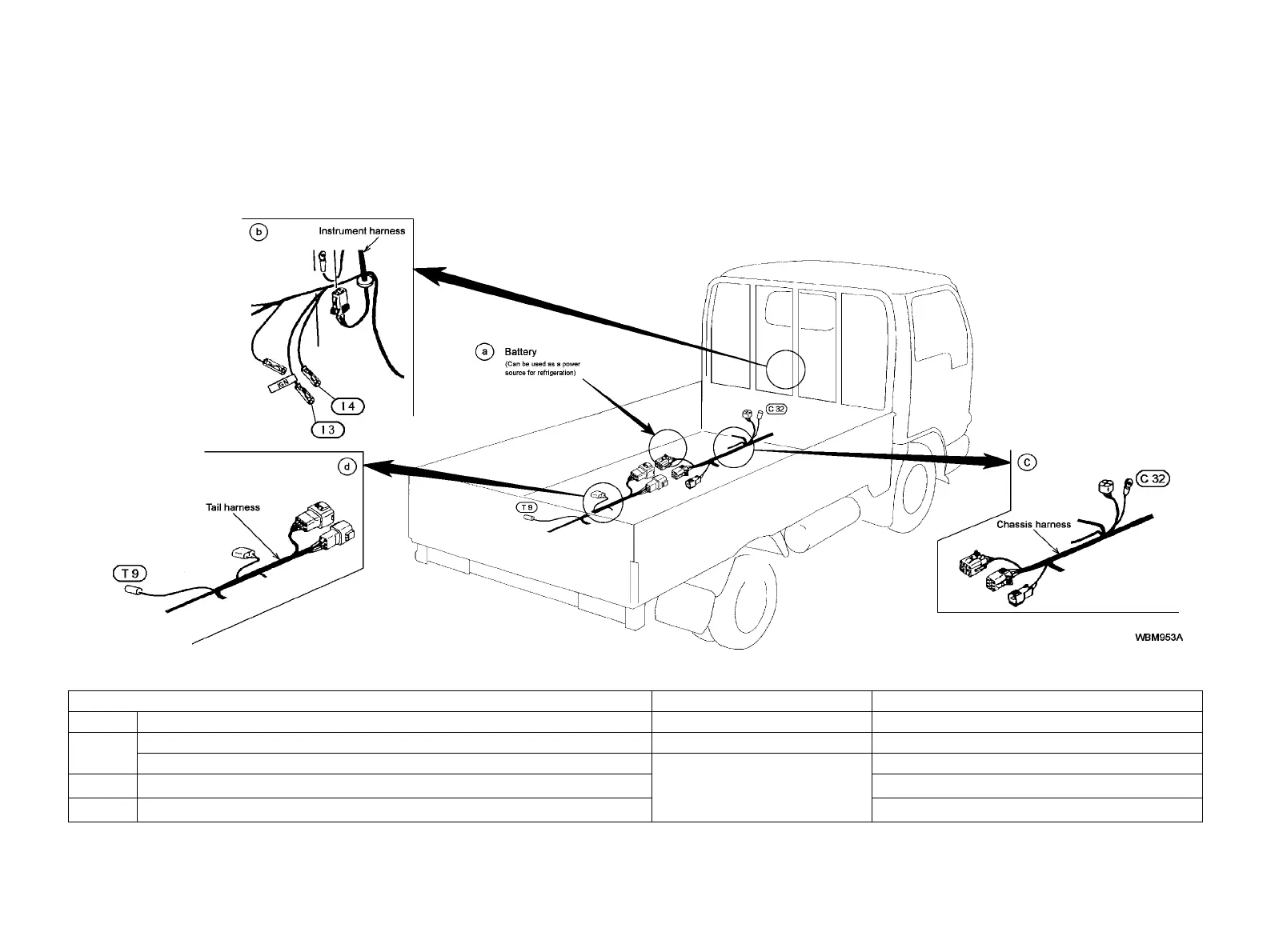

A power source for auxiliary equipment is provided as shown below.
When using the power source, be careful not to exceed the capacity.
(1) Power outlet for auxiliary
Item Allowable current (Watts) Wire size and color
a Battery 25A (300 W) Max. -
b
Optional power source for auxiliary equipment (I3) 5A (60W) 0.5L
Optional power source for auxiliary equipment (I4)
5A (60 W) Max.
0.5R/L
c
Optional power source for auxiliary equipment (C32) 0.85R/L
d
Optional power source for auxiliary equipment (T9) 0.5L
C22
