Page 280 (Exhaust Pipe and Muffler Data)

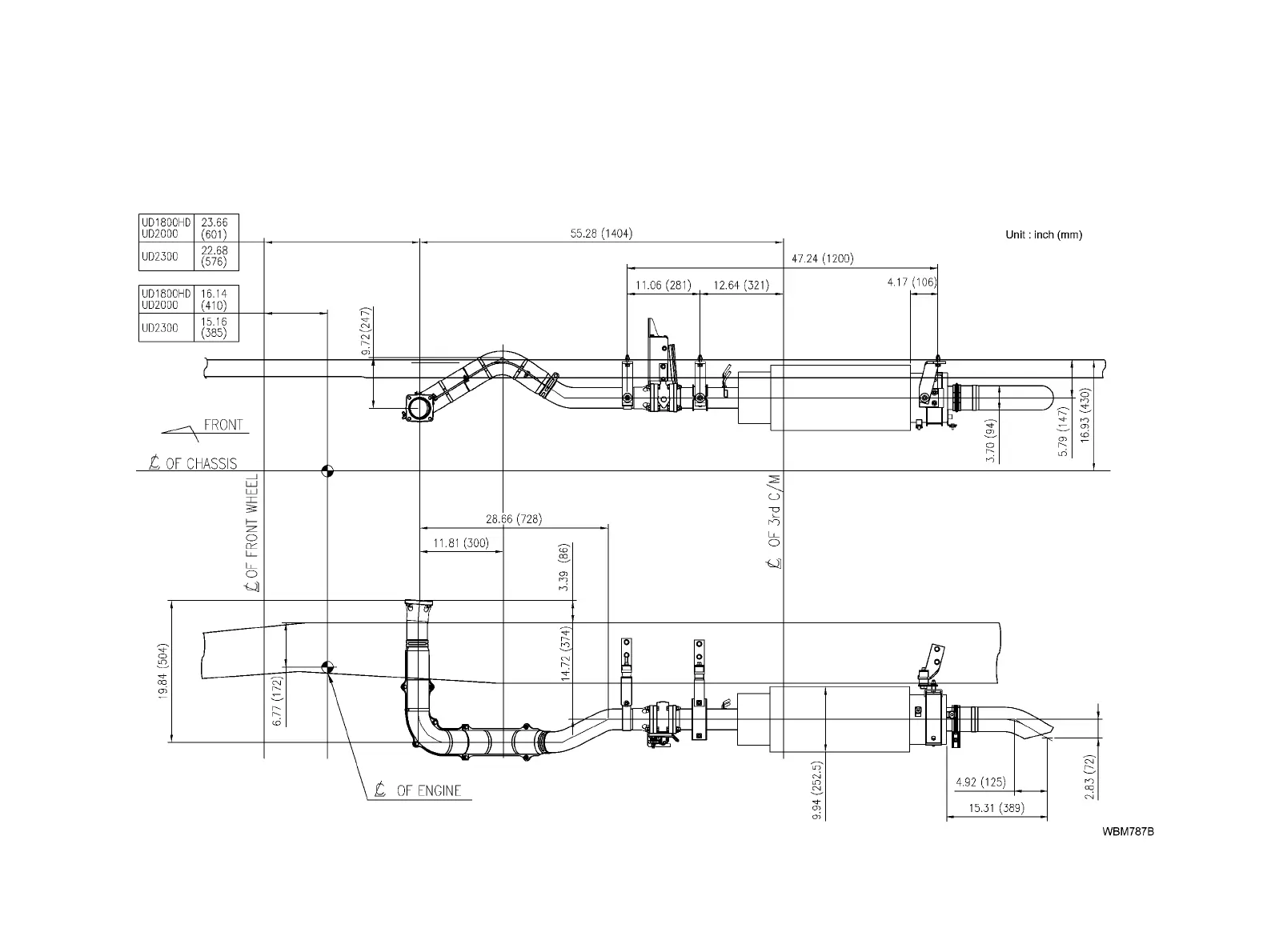

UD Trucks UD2000 - Exhaust Pipe and Muffler Data
385 pages
Manual
Save Page as PDF
To Next Page
To Next Page
To Previous Page
To Previous Page
Loading...
EXHAUST PIPE AND MUFFLER DA
T
A
UD1800E, UD1800F
, UD
1800H, UD1800K, UD1800N
UD2000E, UD2000F
, UD
2000H, UD2000K, UD2000N
