AXLE AND WHEEL DATA
AXLE INFORMATION
AXLE INFORMATION CHART

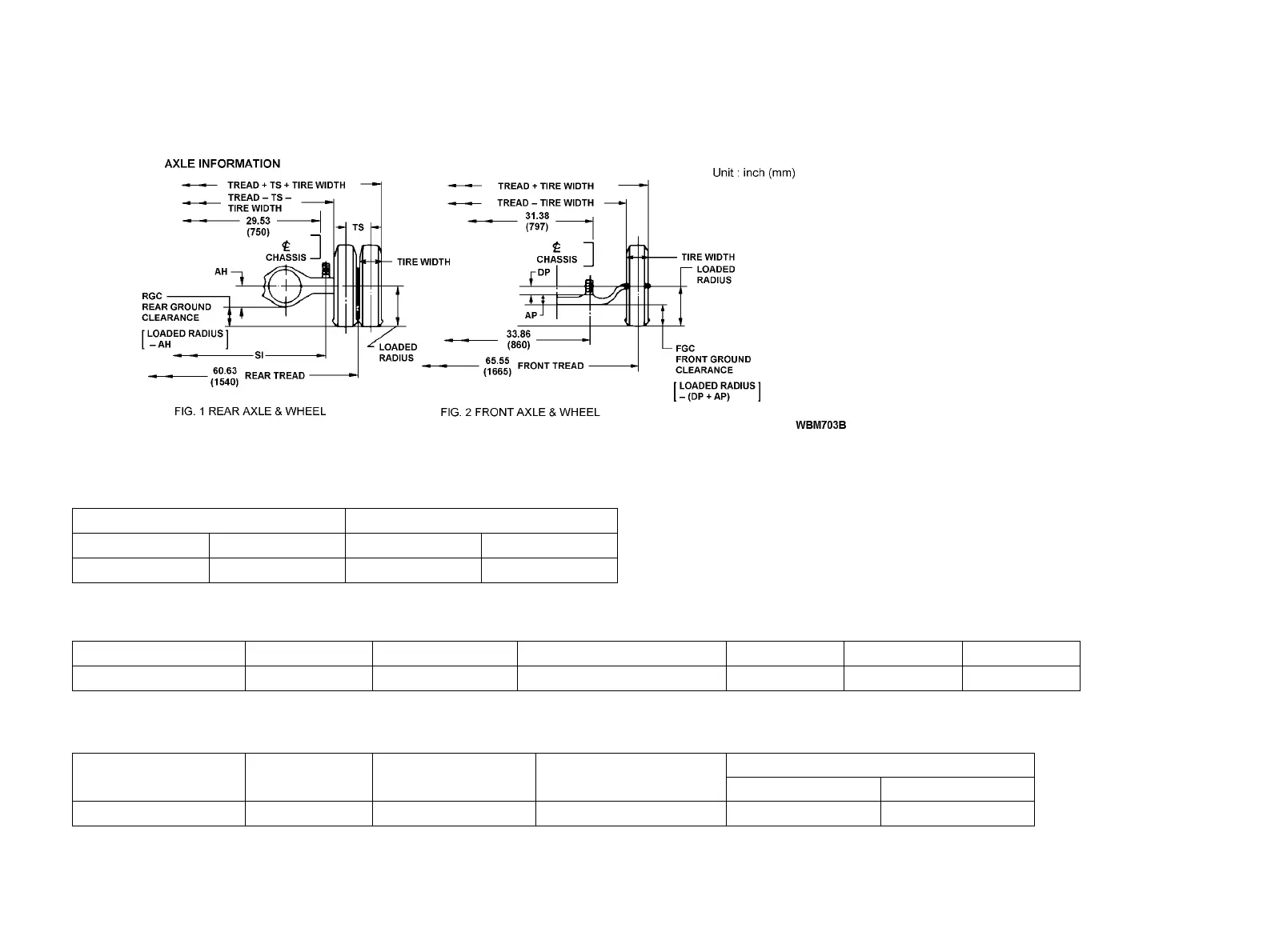

(SEE FIG. 1 & 2) Unit : inch (mm)
WHEEL INFORMATION CHART
(SEE FIG. 1 & 2) Unit : inch (mm)
TIRE INFORMATION
Unit : inch (mm)
REAR AXLE FRONT AXLE
SI AH AP DP
35.04 (890) 7.48 (190) 2.80 (71) 3.74 (95)
TIRE SIZE RIM DISC OFFSET HUB BOLT PATTERN TS FGC RGC
LT215/85R16 16 X 6K 5.00 (127) 6 10.00 (254) 7.52 (191) 6.57 (167)
TIRE SIZE RIM TIRE WIDTH Max. OVERALL DIA.
LOADED RADIUS
STATIC DYNAMIC
LT215/85R16
16 X 6K
8.86 (225) 30.83 (783) 14.06 (357) 14.69 (373)
B8
