PROCEDURE FOR RELOCATING THE OUTSIDE
MIRRORS
• When installing a body with a 102-inch width, it is necessary to relo-
cate the outside mirrors.
The mirrors on all UD Trucks, are installed for a 96-inch width body
during vehicle assembly.
When installing a rear body with a 102-inch width, perform the relo-
cation operation for both the right and the left mirrors.

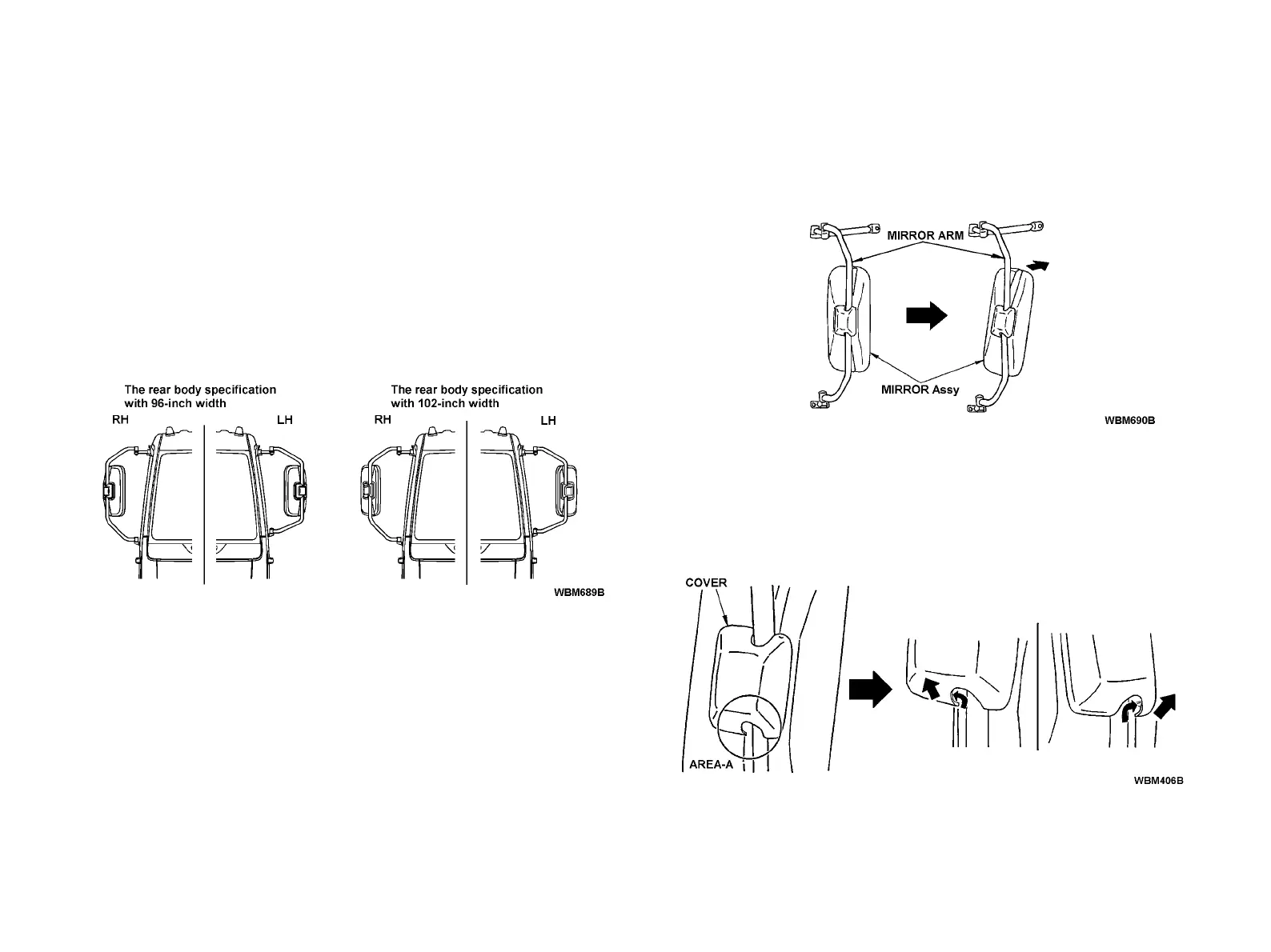

• Schematic drawings for the installation of the mirrors for each body
specification are shown below:
PROCEDURE FOR RELOCATING
• The procedure is the same for both the right and the left mirrors
assembly.
1) Tilt the top of the mirror assembly out.
2) There is clearance (area A) at the notch of the cover, and
using this clearance, pull the cover toward the direction of the
arrow, and then pry out the tang of the cover (2 areas at the
bottom side).
