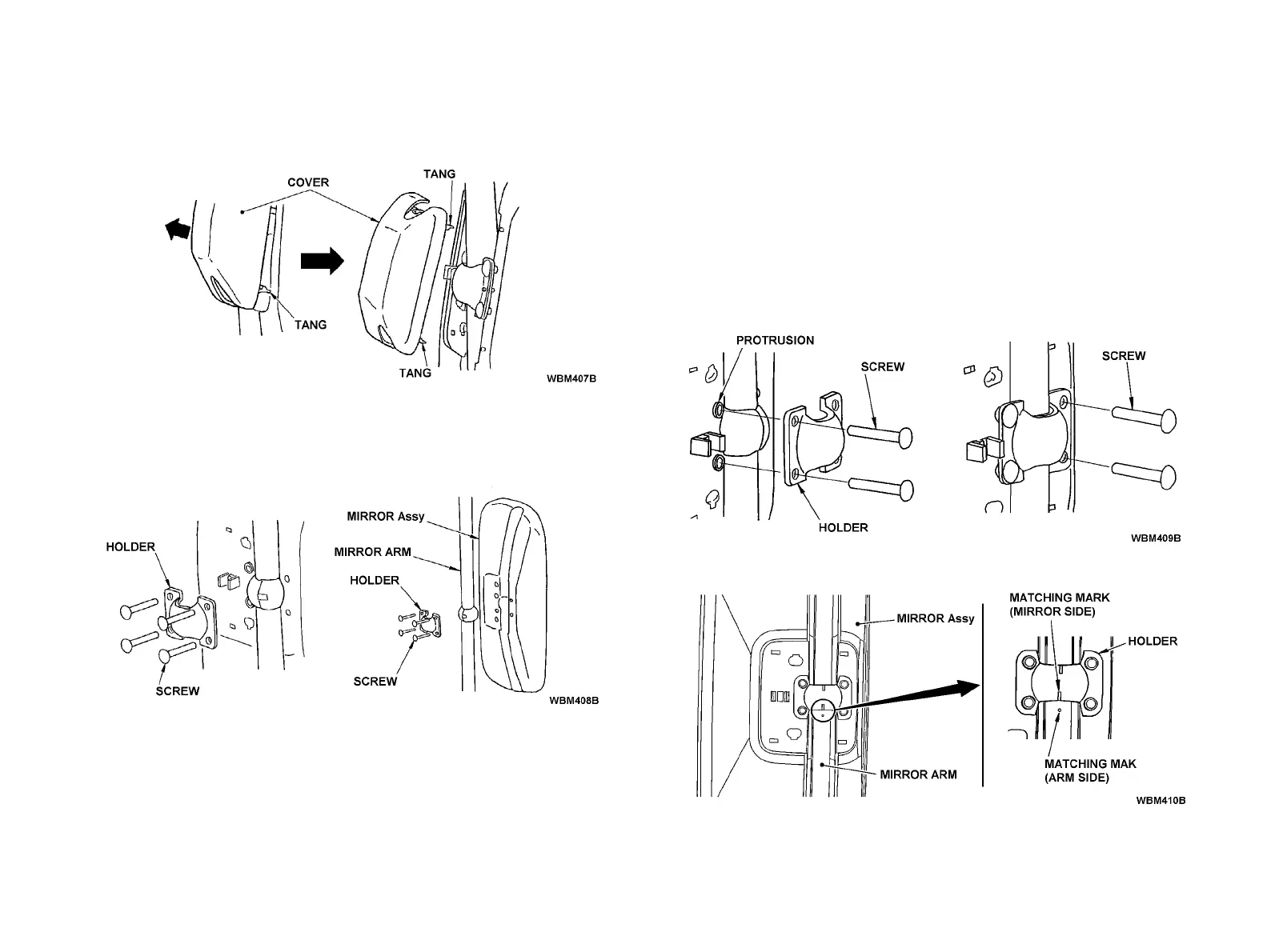

3) When the tangs on the bottom side are pried open, then pull the
cover and remove it.
4) Loosen the (4) screws on the holder, and remove the holder as
well as the mirror assembly.
5) Remove the mirror assembly on the opposite side using the same
procedure as in step 4).
6) Install the mirror assembly from the right to the left side, and the
mirror assembly from the left to the right side.
7) Attach the mirror assembly to the mirror arm and the ball joint using
the (4) screws.
Tighten the protruding side of the mirror assembly first and then
tighten the screws on the opposite side.
Caution:
• Align the matching marks on the mirror holder(s) and the mirror
arm(s).
Screw tightening torque: 2.2-3.7 ft•lbf {3-5 N•m, 0.3-0.5 kgf•m}
