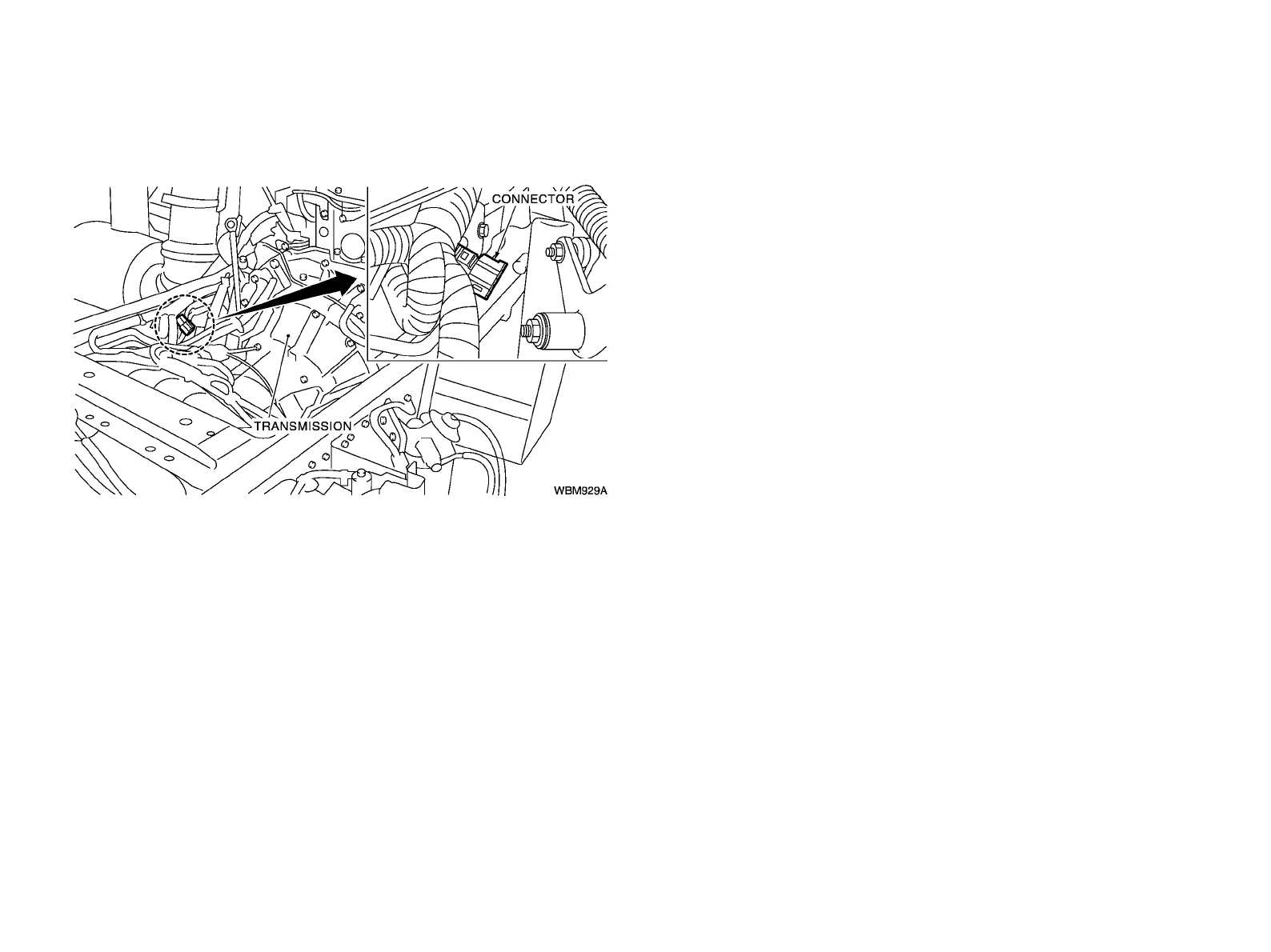

3) Connect the harness to the connector on the chassis harness.
(The connector is placed in the chassis harness section on the
left side frame of the transmission)
4) The connector to be used is the waterproof 4-pole terminal (6189
0841).
5) Cautions about attachment
• For brackets and similar parts, use ones provided by the chassis
maker.
• Do not mount the engine control lever in a position where it may be
directly splashed with water. If the sensor section, in particular, may
be directly splashed with water (including times of a car wash),
protect it with a cover.
• Do not disassemble the engine control lever. Be careful not to drop
the engine control unit or to give a strong impact to it. It may cause
a malfunction or break down.
• An extension sub-harness is available as an optional part.
Part number : 24024 37Z04 [Harness length : 137.80 inch
(3500 mm)]
• Use the sub-harness connector 6188 0541 (male : chassis harness
side) and 6189 0841 (female : engine control lever side),
manufactured by Sumitomo.
• It is recommended to use the part below for the transmission PTO
switch.
Part number : 25165 Z5900
C26
