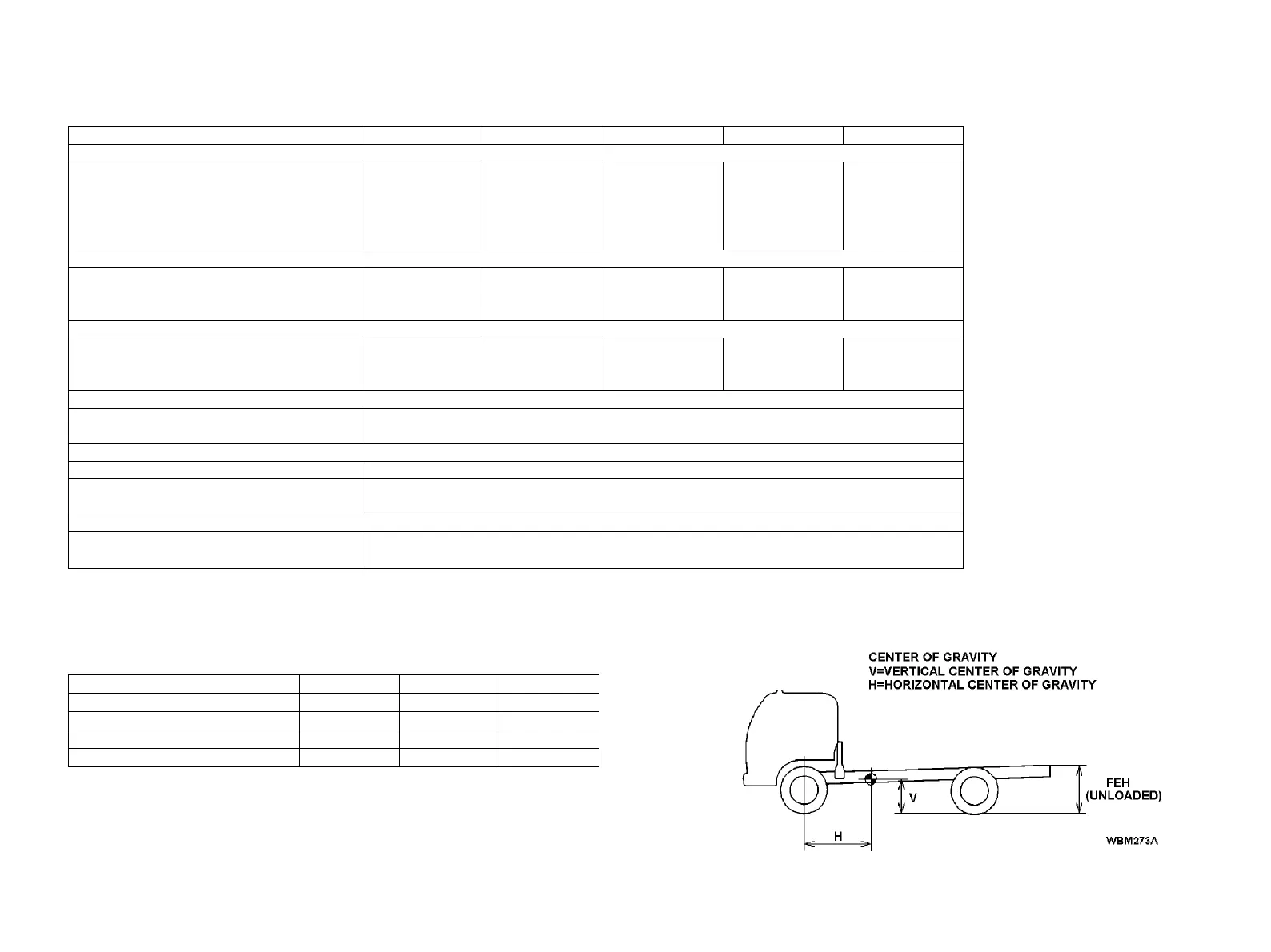

UD3300 SERIES (LEAF SUSPENSION)
NOTE: STANDARD SPECIFICATION WITH 11R22.5 - 14PR (G) TIRES
ADDITIONAL MASSES FOR OPTIONAL PARTS
(NISSAN DIESEL MOTOR CO., LTD. GENUINE PART)
Unit: lb. (kg)
NOTE: THE ABOVE DATA CONCERN THE UD3300H.
MODEL UD3300E UD3300H UD3300K UD3300M UD3300R
DIMENSIONS Unit: inch (mm)
WHEELBASE 150.39 (3,820) 177.17 (4,500) 192.91 (4,900) 208.66 (5,300) 238.19 (6,050)
OVERALL LENGTH 245.67 (6,240) 300.39 (7,630) 320.28 (8,135) 347.64 (8,830) 398.82 (10,130)
OVERALL WIDTH 95.47 (2,425) 95.47 (2,425) 95.47 (2,425) 95.47 (2,425) 95.47 (2,425)
OVERALL HEIGHT 106.50 (2,705) 107.68 (2,735) 107.68 (2,735) 107.68 (2,735) 107.68 (2,735)
CAB TO REAR AXLE CENTER 118.27 (3,004) 145.04 (3,684) 160.79 (4,084) 176.54 (4,484) 206.06 (5,234)
MASSES Unit: lb. (kg)
FRONT 6,310 (2,860) 6,375 (2,890) 6,440 (2,920) 6,485 (2,940) 6,615 (3,000)
CHASSIS-CAB REAR 3,895 (1,765) 4,025 (1,825) 4,070 (1,845) 4,135 (1,875) 4,225 (1,915)
TOTAL 10,205 (4,625) 10,400 (4,715) 10,510 (4,765) 10,620 (4,815) 10,840 (4,915)
CENTER OF GRAVITY Unit: inch (mm)
V 31.10 (790) 32.28 (820) 32.28 (820) 32.28 (820) 32.28 (820)
CHASSIS-CAB H 57.48 (1,460) 68.90 (1,750) 74.80 (1,900) 81.50 (2,070) 92.91 (2,360)
FEH 43.50 (1,105) 43.50 (1,105) 43.50 (1,105) 43.50 (1,105) 43.70 (1,110)
UNSPRUNG MASS Unit: lb. (kg)
FRONT 1,545 (700)
REAR 2,870 (1,300)
GVMR & GAMR Unit: lb. (kg)
GVMR 32,900 (14,925)
GAMR
FRONT 11,900 (5,400)
REAR 21,000 (9,525)
PERMISSIBLE LOAD Unit: lb. (kg)
FRONT TIRE 6,175 (2,800) x 2
REAR TIRE 5,840 (2,650) x 4
PARTS ASSEMBLY NAME FRONT REAR TOTAL
2500 series ATM TRANSMISSION 92.6 (42) 11.0 (5) 103.6 (47)
TRANSMISSION PTO 11.0 (5) 4.4 (2) 15.4 (7)
THIRD SEAT 13.2 (6) – 13.2 (6)
REAR SHOCK ABSORBER – 55.1 (25) 55.1 (25)
