I 1 : Front combination light L.H. I 24: Warm up switch I 47: Back-up light relay I 70: Blower motor
I 2 : Door switch (driver’s side) I 25: Combination meter I 48: Bulb check relay I 71: Fan resistor
I 3 : Power supply (for superstructure) I 26: Combination meter I 49: Heater relay I 72: Door lock timer
I 4 : Optional connector (for maker light) I 27: Combination meter I 50: Clearance & I.D. light relay I 73: Engine coolant level buzzer
I 5 : ATM diagnosis switch I 28: Combination meter I 51: Main relay I 74: Exhaust brake park relay
I 6 : Engine diagnosis switch I 29: Hazard switch I 52: Power window relay I 75: ACT power relay
I 7 : ABS diagnosis switch I 30: Idle volume I 53: Air conditioner relay I 76: Exhaust brake cut relay
I 8 : PC consult I 31: To Chassis harness I 54: Thermo control amplifier I 77: Wiper motor
I 9 : Body ground [S.M.J.] (C 2) I 55: CAN resistor I 78: To Room light harness (R 1)

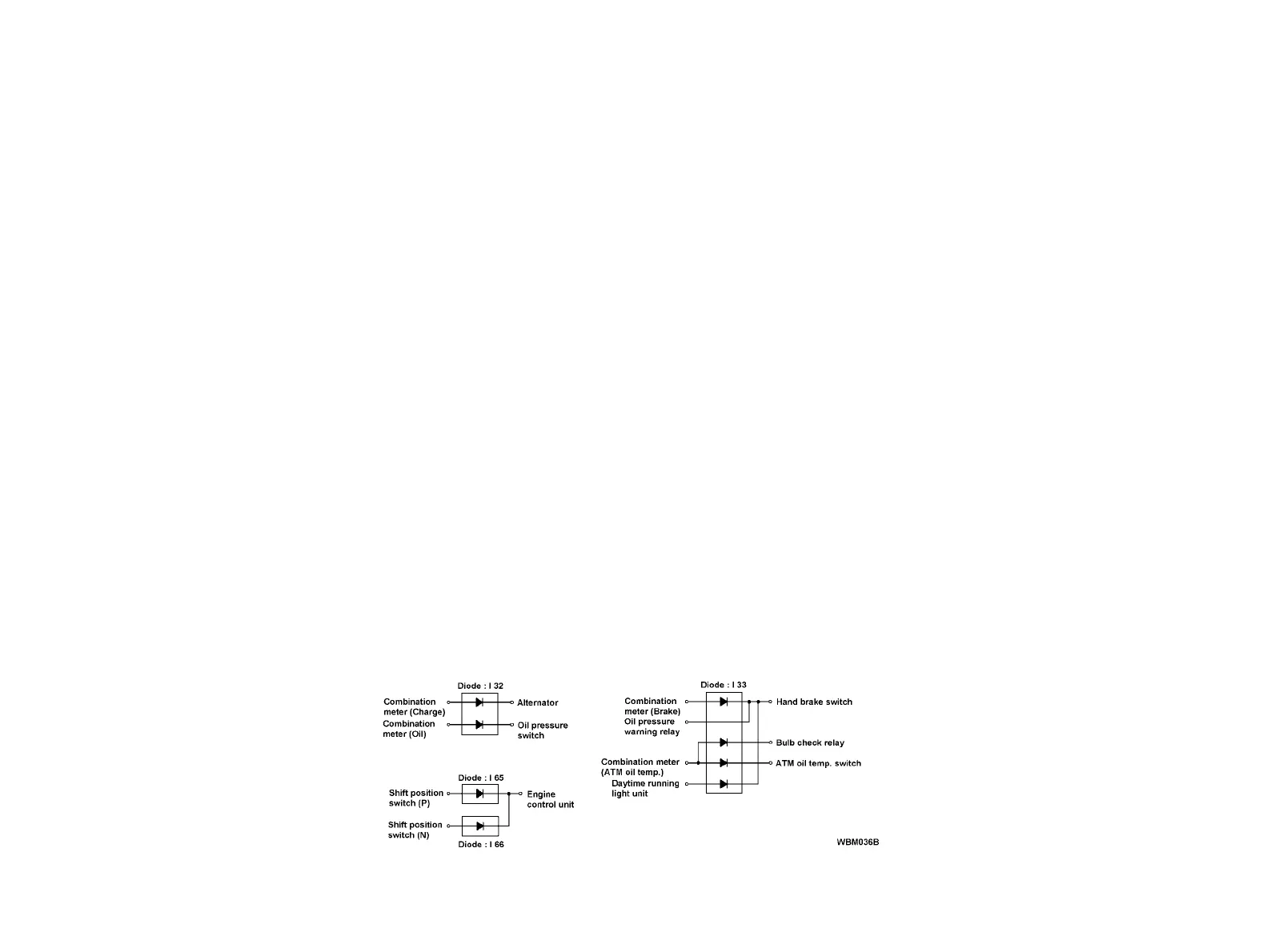

I 10: To Door harness L.H. (DL 1) I 32: Diode I 56: ATM control unit I 79: Wiper amplifier
I 11: Brake fluid level switch I 33: Diode I 57: ATM control unit I 80: To Door harness R.H. (DR 1)
I 12: Daytime running light unit I 34: AT illumination I 58: ATM control unit I 81: Washer motor
I 13: Daytime running light unit I 35: Overdrive switch I 59: Engine control unit I 82: Body ground
I 14: Wiper and washer switch, I 36: Parking brake switch I 60: Engine control unit I 83: Door switch (passenger side)
Exhaust brake switch I 37: Accelerator sensor I 61: Engine control unit I 84: To ABS harness (C 53)
I 15: Ignition switch I 38: Accelerator switch I 62: Engine control unit I 85: Headlight R.H.
I 16: Horn switch I 39: Radio I 63: Engine control unit I 86: Front combination light R.H.
I 17: Lighting switch I 40: Fan switch I 64: To Chassis harness I 87: Oil pressure warning relay
I 18: Vacuum switch I 41: Air conditioner switch [S.M.J.] (C 16) I 88: Power outlet relay
I 19: Stop light switch I 42: Fan switch illumination I 65: Diode I 89: DPF indicator unit
I 20: Horn relay I 43: Cigarette lighter I 66: Diode I 90: Brake switch
I 21: Combination flasher unit I 44: Keyless entry unit I 67: Junction connector I 91: DPF reset switch
I 22: PTO switch I 45: Fuse block I 68: Junction connector I 92: Power outlet connector
I 23: Illumination control switch I 46: Ignition relay I 69: PTO junction B
C32
