ENKOFORM VMK
2.2. ELEMENTS DESCRIPTION
2.2.1 PANEL IN DETAIL
The unit element of the system is the PANEL.
Although this system is formed by many
components, the unit of the system will be the
PANEL. The placement of some PANELS next to each
other will make possible to adjust to the required
geometry of the wall.
The PANEL is made up of:
 MK-120 WALERS (1st line beams)
 VM 20 BEAMS (2nd line beams)
 WALER-VM20 CLAMPS 2T (clamp between
the two beams)
 LIFTING BRACKET E V-100
 BOARD
 WOOD PLANKS
The assembly formed this way makes a completely
stiff component, ready to be used as the unit of the
system.

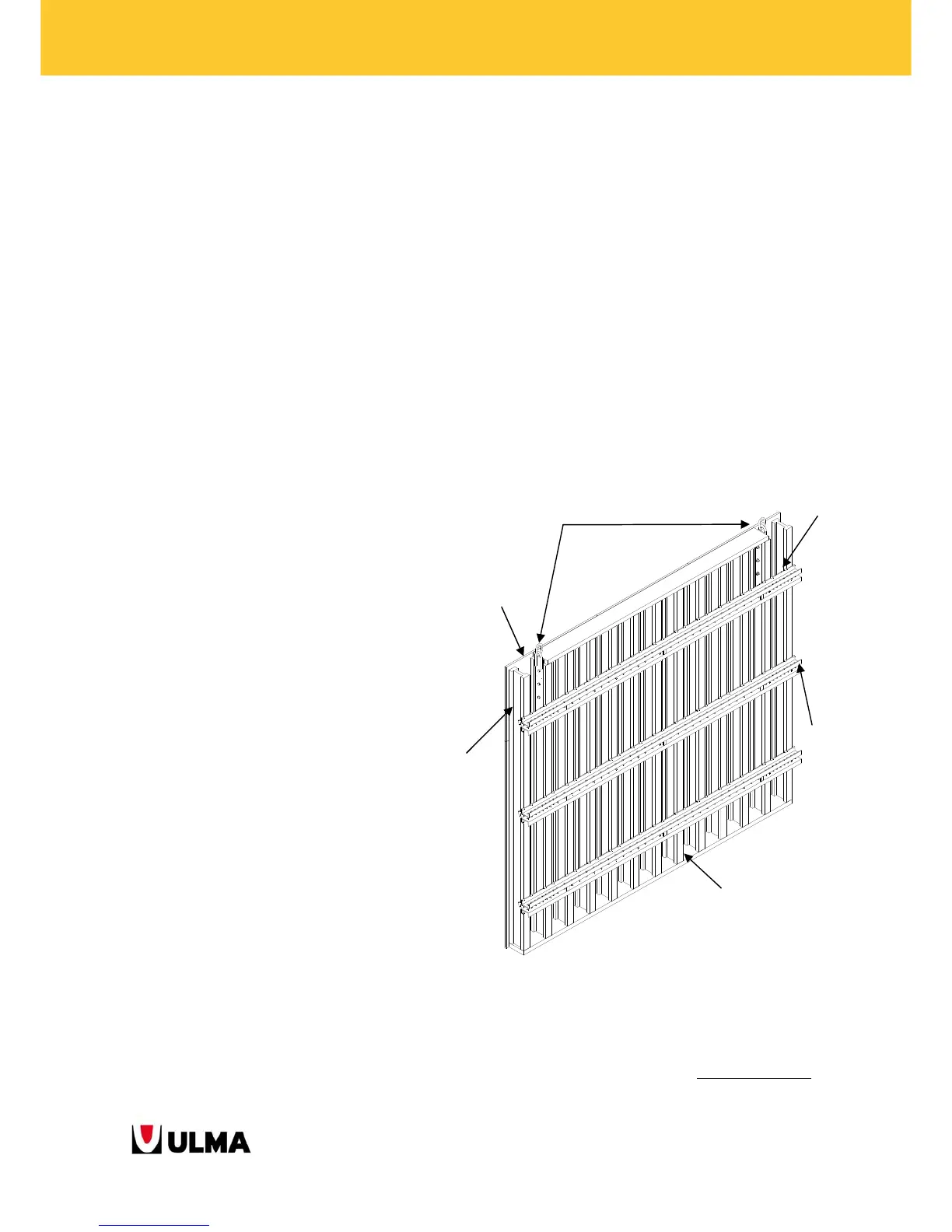

PANEL made up of BOARD, VM20 BEAMS and MK-120 WALERS.
The functions of the PANEL’s basic components
are
explained in the following lines:
E V-100 Lifting brackets
Beam VM20
Board
Waler
MK-120
Wood
p
lank
Clamp
RVM20 2T
