4.1. WALER MK-120
The range of MK-120 WALERS is:
1.125 / 1.25 / 1,375 / 1.625 / 1,875 / 2.125 / 2.375 /
2.625 / 3.125 / 3.625 / 4.125 / 4.625 / 4.875 / 5.625 /
m.
But this range can be extended by means of the
WALER CONNECTOR MK, PANEL CONNECTOR MK
and ADJUSTABLE CONNECTOR MK.
4.1.1 WALER CONNECTOR MK. Waler range
every 25 cm.
The WALER CONNECTOR makes it possible to join 2
MK-120 WALERS to form a third one of a different
length.
The WALER CONNECTOR and the standard range of
MK-120 WALERS, make up a range of walers at least
every 250 mm. (there are quite a lot of lengths with a
125mm gap between them in this range).

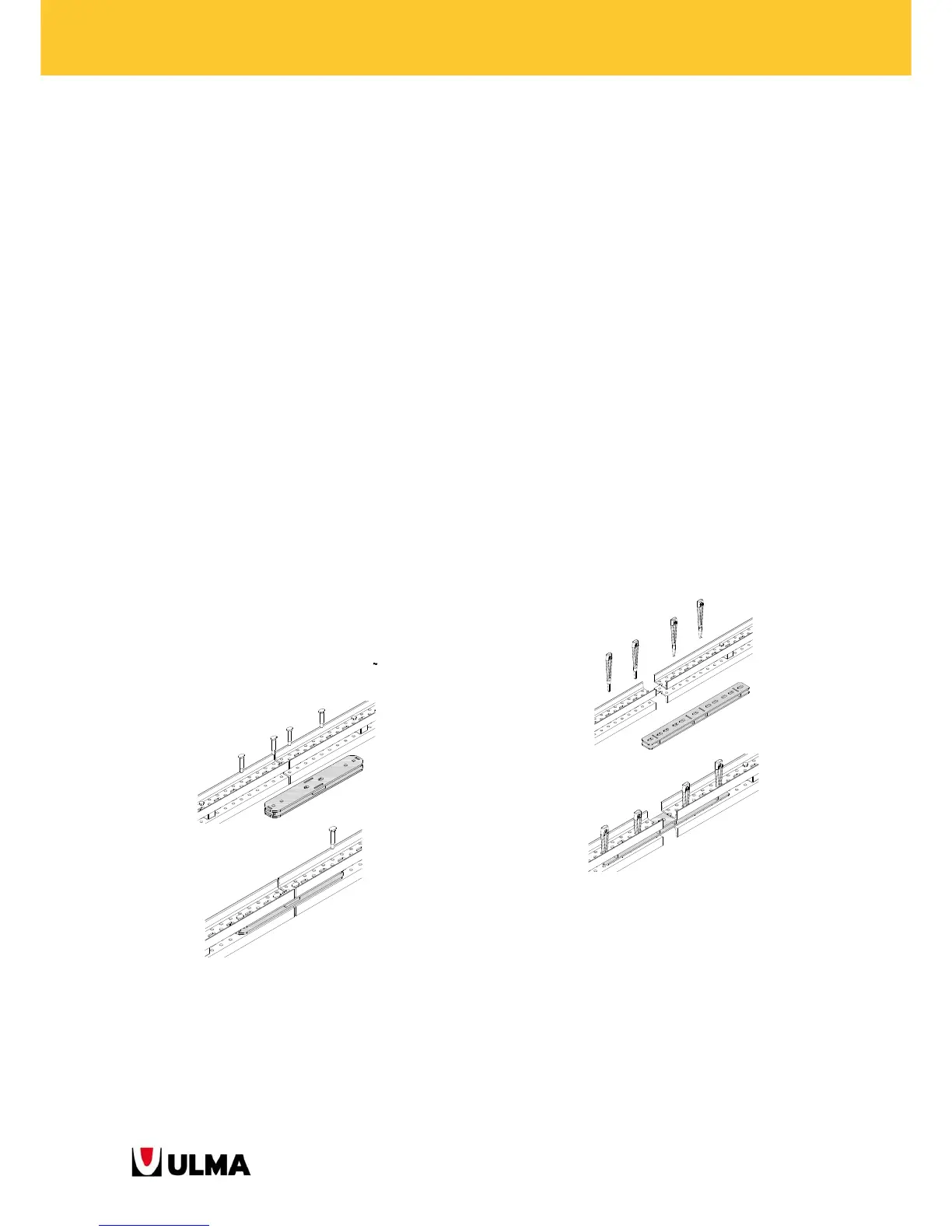

MK-120 WALERS joined by means of the WALER CONNECTOR MK.
The joint will be carried out with 4 E20x70 PINS. (Each
PIN will have a COTTER PIN 5).
4.1.2 PANEL CONNECTOR MK for connecting
walers.
The PANEL CONNECTOR MK can be used to connect
2 WALERS to form a 3
rd
one.
This component can lengthen the result of
connecting 2 walers between 0 and 165 mm. It is
used in a similar way to the WALER CONNECTOR,
but it makes possible to achieve more lengths.
The PANEL CONNECTOR MK together with the
range of MK-120 WALERS make up a very accurate
range (it can be adjusted every 1 mm).
Joint of 2 MK-120 WALERS by means of the PANEL CONNECTOR
MK.
4.1.3 ADJUSTABLE CONNECTOR MK for
connecting walers.
The ADJUSTABLE CONNECTOR MK connects 2
WALERS MK-120 to form a 3
rd
one. It lengthens the
result of connecting 2 walers between 165 and 310
mm.
