ENKOFORM VMK
5.2.5 PUSH-PULL PROPS
The working loads of the PUSH-PULL PROPS will be represented depending on the extension.
WORKING LOAD OF PUSH-PULL PROPS
PUSH-PULL PROP 1.1-
1.7
PUSH-PULL PROP 2.4-
3.5
PUSH-PULL PROP 3.6-
4.8
PUSH-PULL PROP 5-6
L [m] Working load [kN] L [m] Working load [kN] L [m] Working load [kN] L [m] Working load [kN]
1.1
35.8
2.4
47.0
3.6
32.3
5
16.3
1.3
29.4
2.8
31.4
4
26.5
5.25
14.2
1.5
19.6
3.2
19.1
4.4
21.6
5.5
12.7
1.7
10.8
3.5
13.4
4.8
16.2
5.75
11.8
6
10.8

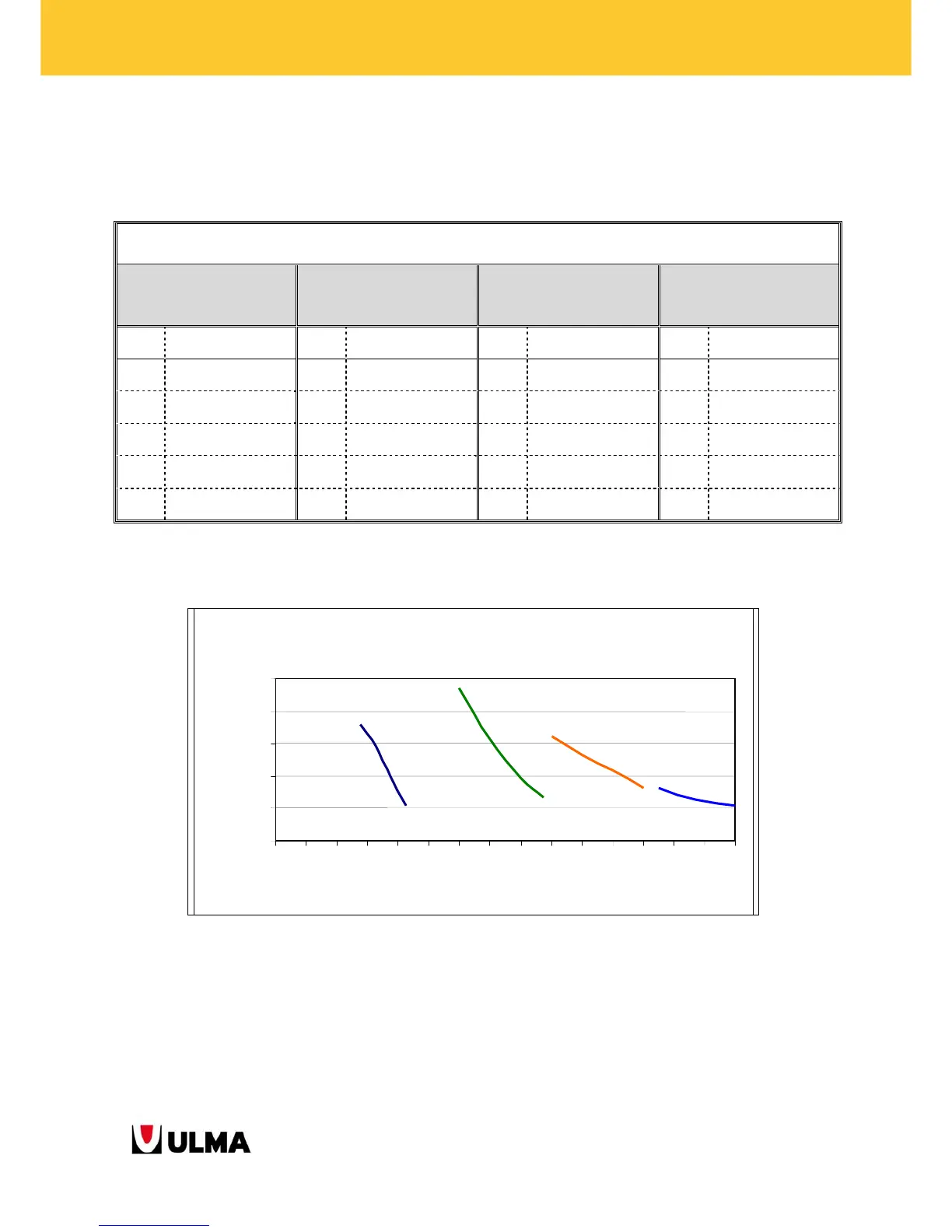

The same values in a diagram:
WORKING LOADS OF PUSH-PULL PROPS

0.0
10.0

20.0

30.0

40.0

50,0

0

0.4 0.8

1.2
1.6 2

2.4

2.8 3.2

3.6 4

4.4
4.8 5.2

5.6 6

Length of the Push-pull props[m]

Working load [kN]
1.1-1.7
2.4-3.5
3.6-4.8
5-6
