ENKOFORM VMK
Construcción
56


ENKOFORM VMK
5.1.4 BEAM VM20
The technical properties of the BEAM VM20 are (in SLS):
M
ad
= 5 kNm Maximum bending moment
Q
ad
= 11 kN Maximum shear force
EI = 450 kN m
2
] Rigidity (EI)

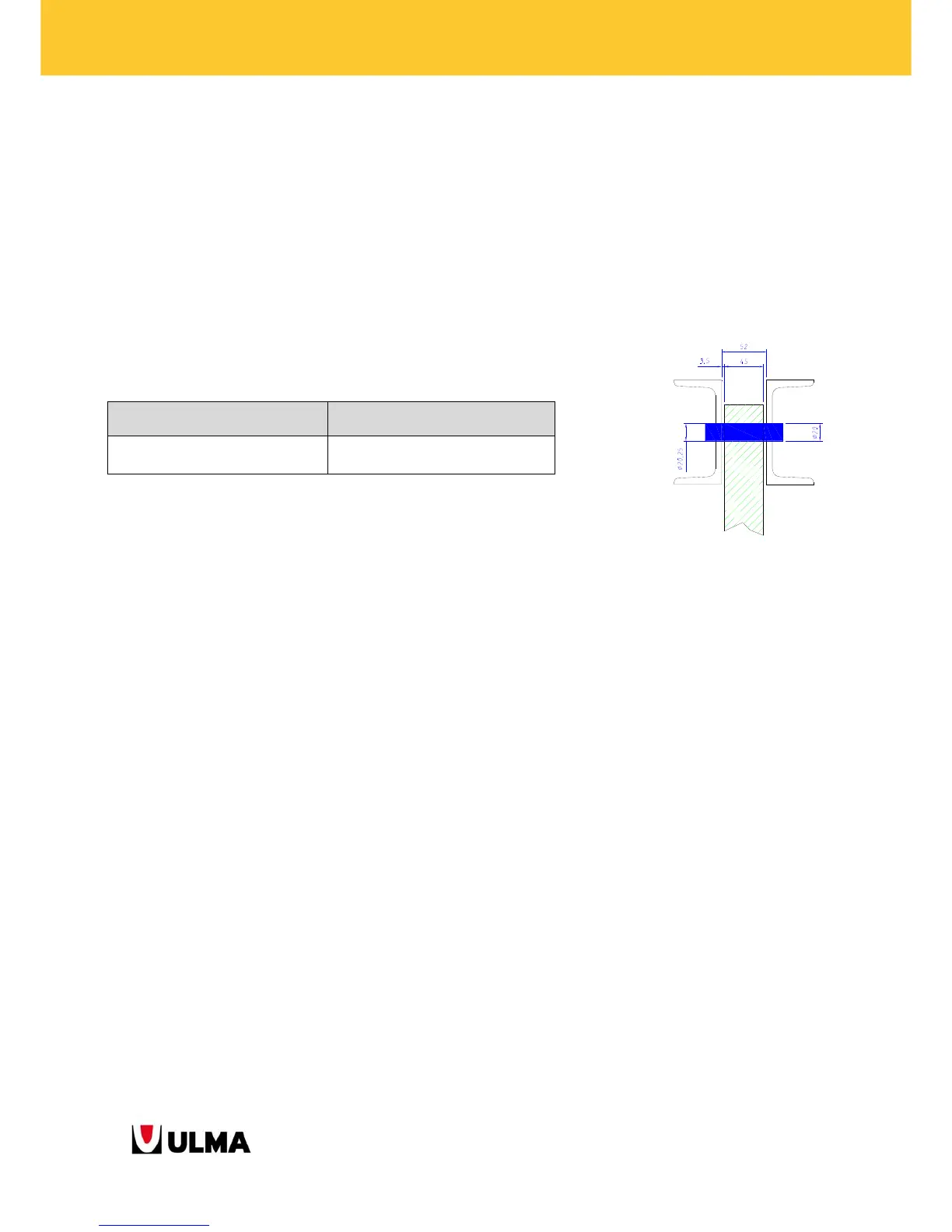

5.1.5 PIN E20x70 + PUSH-PULL PROP E
Working load of the PIN E20x70 in the WALER MK-120 with the PUSH-PULL PROP E:
5.1.6 BOARD
Taking into account the wide range of BOARDS in the market, it has been written that includes all the mechanical
properties of different types of Boards. Please use this document for further information. The program CALCUMAX
can be used to calculate BOARDS.
Name Working Load (S.L.S.)
PIN E20x70 90 kN
