ENKOFORM VMK
4.8.2 Outer solution

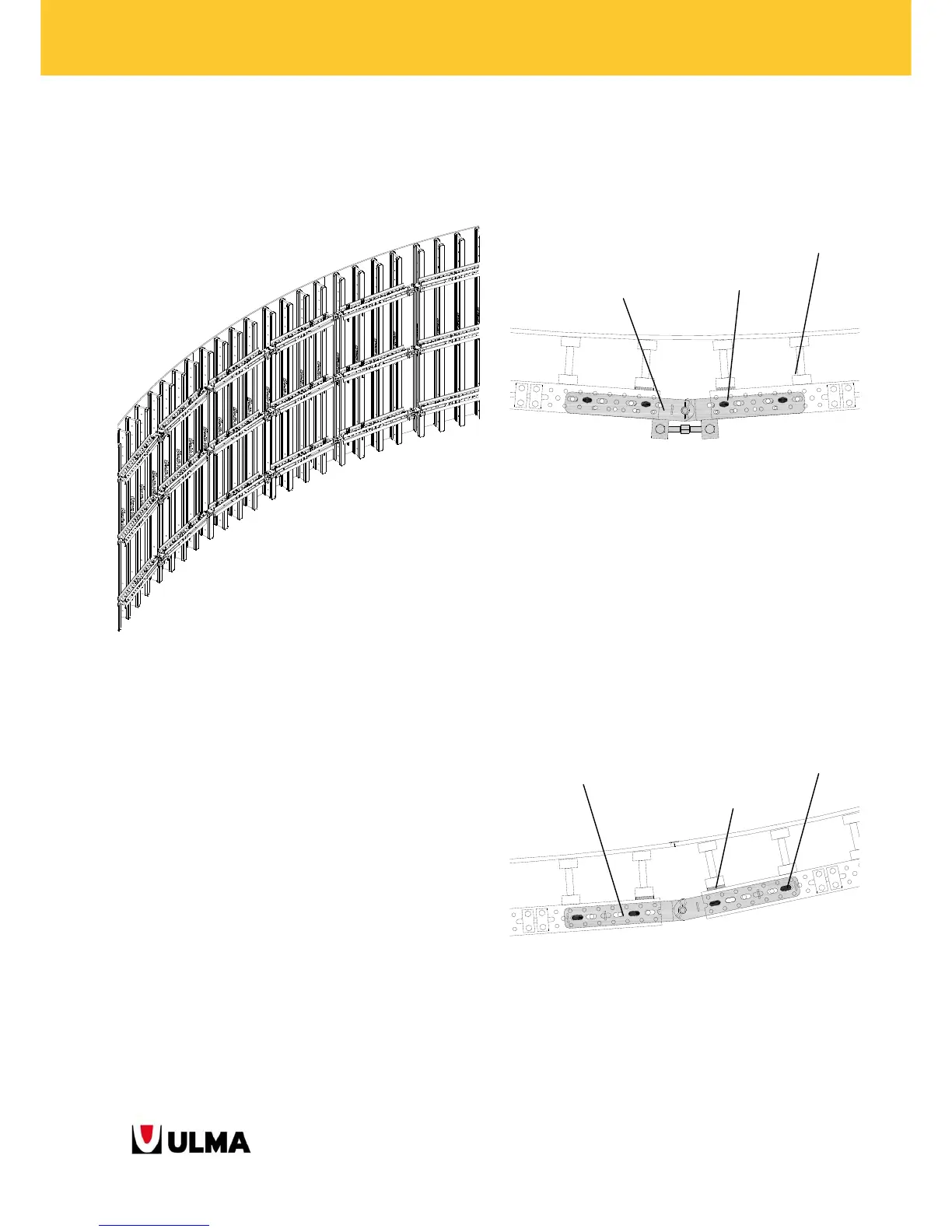

General view an outer circular formwork.
The ARTICULATED ADJUSTABLE CONNECTOR MK connects 2
different WALERS MK-120 inside 1 PANEL.
Where necessary, TIMBER STUDS are placed
between the BEAM VM20 and WALER MK-120. This
way, the radius is obtained easily.
The ARTICULATED CONNECTOR MK connects 2 different PANELS.
Wedge MK

Pin e20x70

Articulated adjustable
connector MK
Timber stud

Timber stud
Panel connector MK
