ENKOFORM VMK
4.13. PANEL STABILIZATION
The use of PUSH-PULL PROPS to stabilize the PANELS
provides:
 Protection of the formwork from possible wind
strengths.
 An easier placement and position of the
formwork.

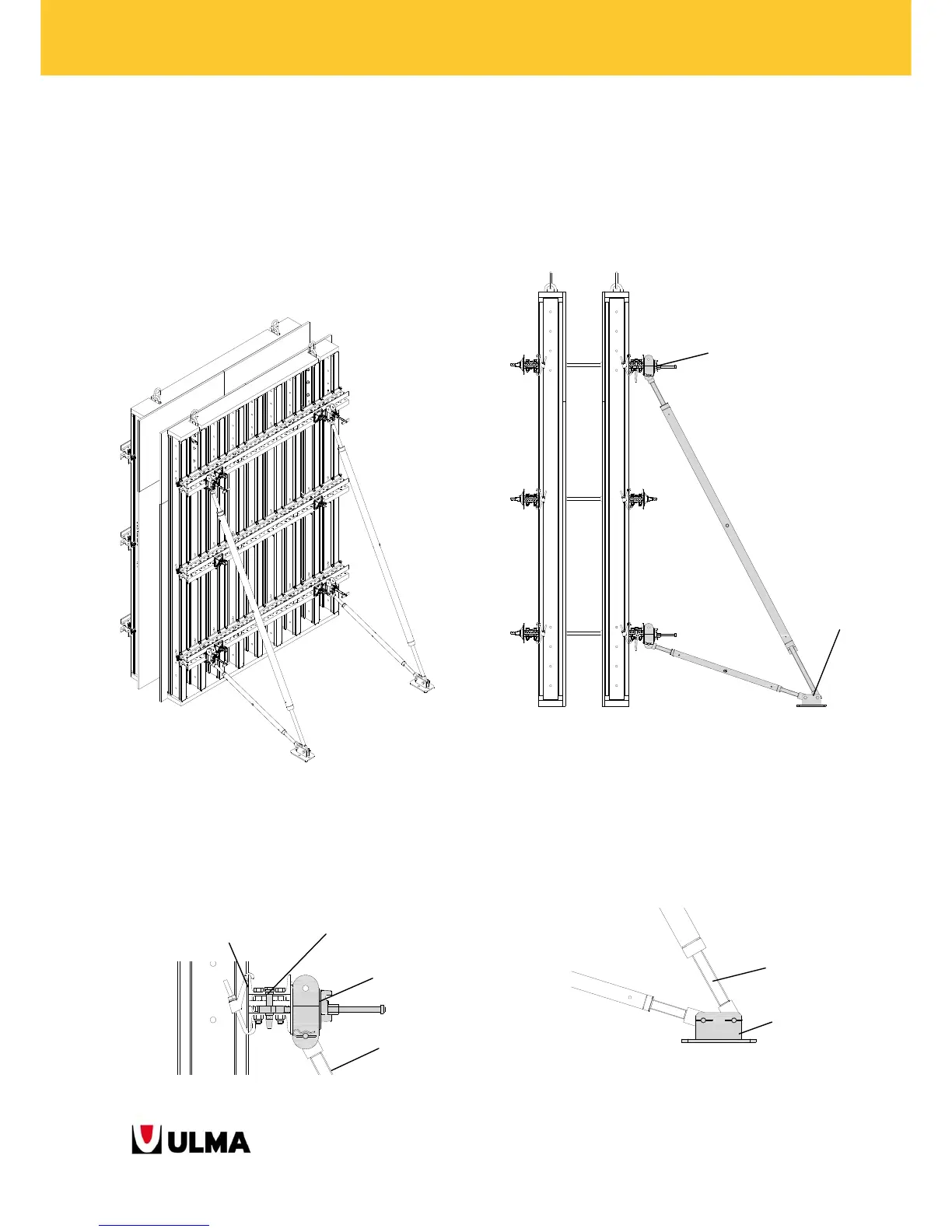

General view of PANELS with PIPE.
PUSH-PULL PROPS are joined to the MK-120 WALERS
with HEAD PUSH-PULL PROPS. Just one PUSH-PULL
PROPS could be placed to each HEAD PUSH-PULL
PROP.
The PUSH-PULL PROPS HEAD is joined to MK-120
WALERS with one E20x190 PIN (each pin will carry at
the same time a COTTER PIN R 5) or with no PIN at
all.
Panel with PUSH-PULL PROPS in MK-120 WALERS.
PUSH-PULL PROPS are joined to the ground by means
of the PUSH-PULL PROPS SHOE, which will be
anchored to the ground. Each PUSH-PULL PROP
SHOES will have a maximum of 2 PUSH-PULL PROPS.
Detail of the joint of PUSH-PULL PROPS to the PUSH-PULL PROP
SHOE.
Pi
p
e brace head
Push-pull
prop
Waler MK-120
Pin e20x70
Push-pull prop
head
Push-pull
prop shoe
Push-
p
ull
p
ro
p
Push-pull
prop shoe
