ENKOFORM VMK
5.3. PUSH-PULL PROPS E

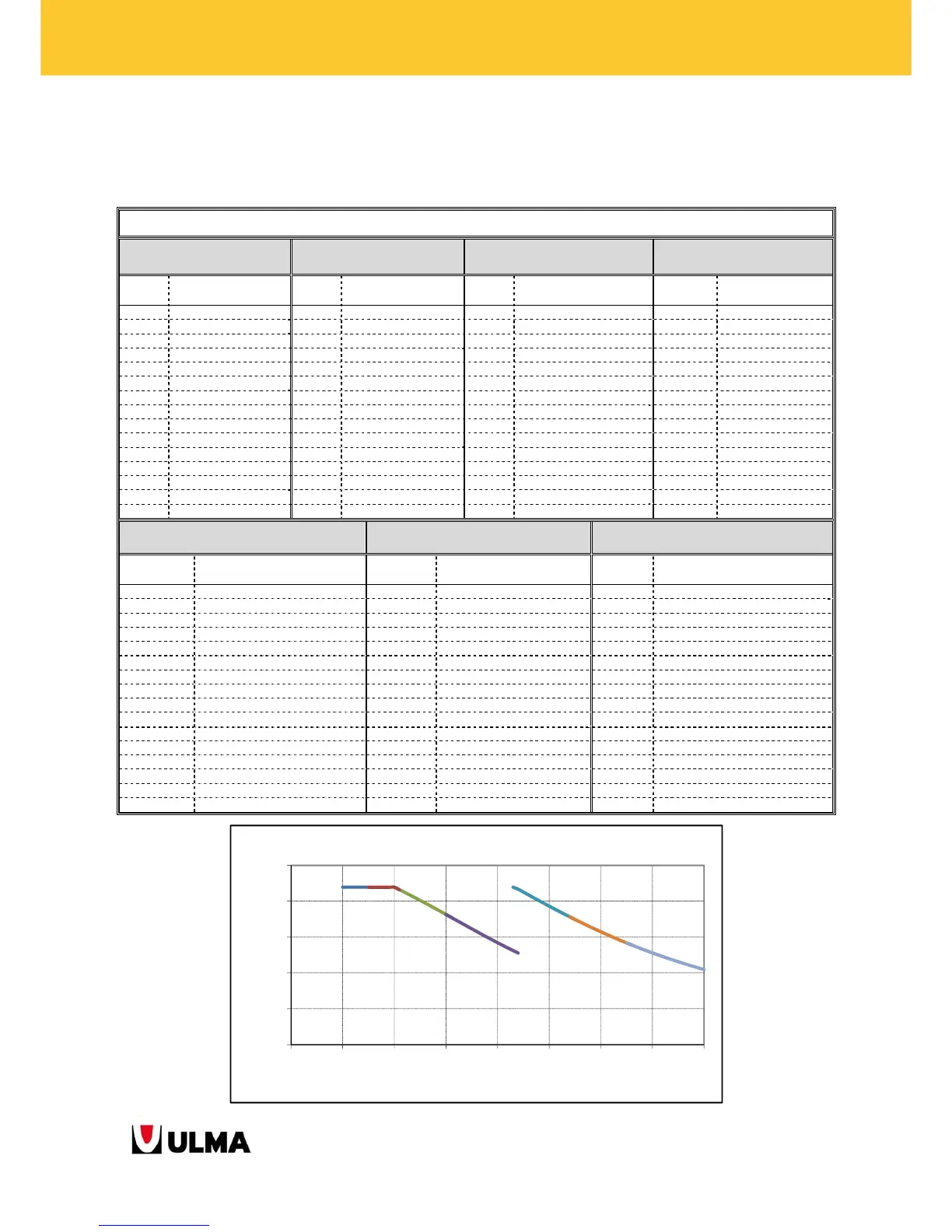

Table and diagram of working loads in PUSH-PULL PROPS E:
WORKING LOADS OF PUSH-PULL PROPS E
PUSH-PULL PROP E
0.51-0.75
PUSH-PULL PROP E
0.75-1.05
PUSH-PULL PROP E 1.00-
1.55
PUSH-PULL PROP E 1.51-
2.20
L [m] Working load [kN] L [m] Working load [kN] L [m] Working load [kN] L [m] Working load [kN]
0.50 90 0.75 90 1.00 87.8 1.50 72.6
0.55 90 0.80 90 1.05 86.3 1.55 71.0
0.60 90 0.85 90 1.10 84.9 1.60 69.4
0.65 90 0.90 90 1.15 83.4 1.65 67.8
0.70 90 0.95 89.2 1.20 81.9 1.70 66.2
0.75 90 1.00 87.8 1.25 80.4 1.75 64.6
1.05 86.3 1.30 78.9 1.80 63.0
1.35 77.3 1.85 61.4
1.40 75.7 1.90 59.9
1.45 74.2 1.95 58.3
1.50 72.6 2.00 56.8
1.55 71.0 2.05 55.3
2.10 53.9
2.15 52.4
2.20 51.0
PUSH-PULL PROP E 2.15-2.75 PUSH-PULL PROP E 2.70-3.30 PUSH-PULL PROP E 3.25-4
L [m] Working load [kN] L [m] Working load [kN] L [m] Working load [kN]
2.15 87.8 2.70 71.2 3,25 56,70
2.20 86.6 2.75 69.8 3,30 55,54
2.25 85.0 2.80 68.3 3,35 54,40
2.30 83.5 2.85 66.9 3,40 53,29
2.35 81.9 2.90 65.6 3,45 52,21
2.40 80.3 2.95 64.2 3,50 51,15
2.45 78.7 3.00 62.9 3,55 50,12
2.50 77.2 3.05 61.6 3,60 49,11
2.55 75.7 3.10 60.3 3,65 48,13
2.60 74.2 3.15 59.1 3,70 47,17
2.65 72.7 3.20 57.8 3,75 46,23
2.70 71.2 3.25 56.7 3,80 45,32
2.75 69.8 3.30 55.5 3,85 44,43
3,90 43,56
3,95 42,72
4,00 41,90


0
20
40
60
80
100
00,511,522,533,54
Working load [kN]
Length of the push-pull prop [m]
WORKING LOAD OF PUSH-PULL PROPS E
1,00-
0,75
-
0,51-
1,51-
2,15-
3,25-
2,7-
