ENKOFORM VMK
4.15. SHIFTING OF PANEL

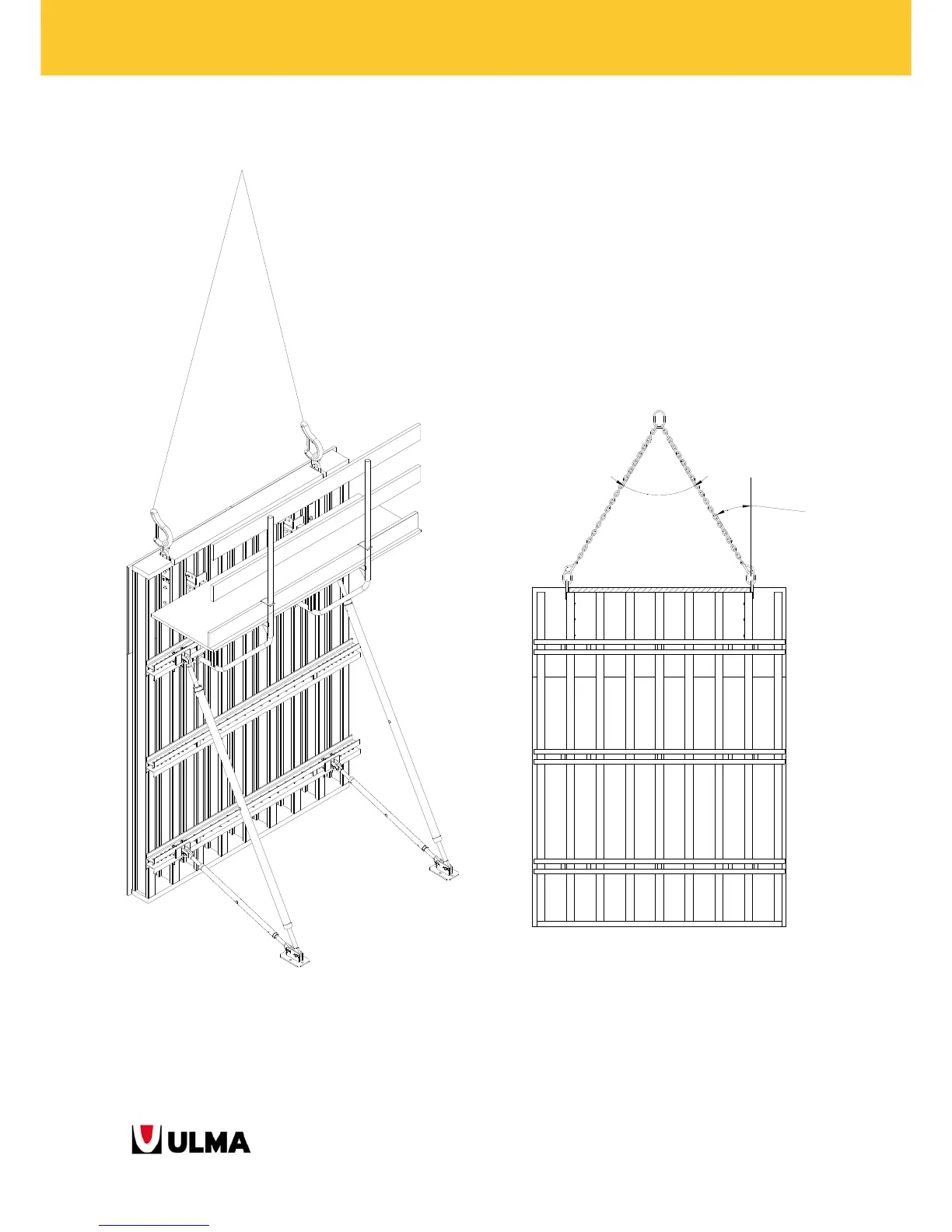

PANEL shifting with PUSH-PULL PROPS and WALKWAY BRACKETS.
Each PANEL will have 2 E V-100 LIFTING BRACKETS;
i.e., the E V-100 LIFTING BRACKETS are part of the
PANEL.
The LIFTING BRACKET E V-100 is fixed to the VM 20
BEAM with 4 M16 screws.
The maximum working load for each LIFTING
BRACKET E V-100 is 1300 kg (13 kN). This limit could
be lower depending on the configuration of the
PANEL.
The maximum angle between the 2 chains of the
LIFTING BRACKET E V-100 is 60º.
The maximum angle between the chains of the E V-100 LIFTING
BRACKETS is 60º.
M
a
x
.
3
0
º
Max. 60º
