3.2. LIFTING BRACKET E V-100
This component is part of the PANEL of the system ENKOFORM VMK. I.e., it is not a removable bracket, but each
PANEL will have two brackets.
E V-100 LIFTING BRACKETS will be placed when assembling the PANEL.
Each LIFTING BRACKET E V-100 is designed for a maximum load of 13 kN (i.e. the maximum weight of a PANEL will
be 26 kN (2653 kg)), although it might be much lower, depending on the geometry configuration of the PANEL.
See chapter 5.1.7 to calculate the working load of the LIFTING BRACKET E V-100.

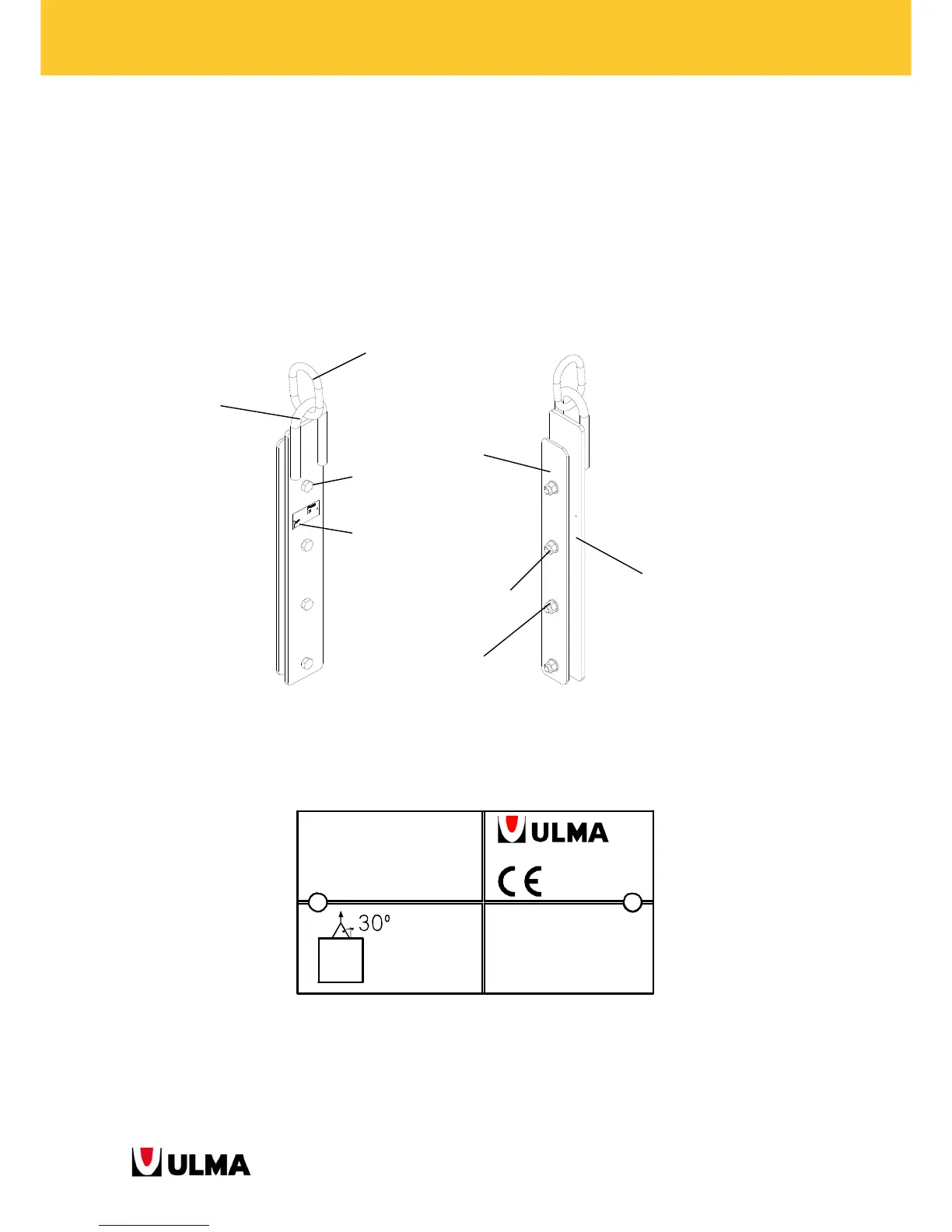

General view of the LIFTING BRACKET E V-100.
IDENTIFICATION PLATE:
Detail of IDENTIFICATIVE PLATE.
ULMA C y E,S.Coop.
Otadui,3 - Apdo.13
20560 OÑATI (SPAIN)
CARGA MAX. DE USO
MAX. WORKING LOAD
MAX. TRAGFÄHIGKEIT
1300 kg
(2860 lbs)
ANGULO MAX.
DE ESLINGAS
MAX. CHAIN
ANGLE
MAX. NEIGUNGS-
WINKEL
ENKOFORM V-100
GANCHO IZADO
LIFTING BRACKET
KRANÖSE
1960220
Outer plate
Inner plate
Bracket
Sta
p
le
Screw M16x70
Identification plate
Washer A17
Nut M16
