Ulma ENKOFORM VMK - Joint between Panels (with Filler); By Means of BOARD and VM20 BEAMS

ENKOFORM VMK
Construcción
35


ENKOFORM VMK
4.5. JOINT BETWEEN PANELS (WITH FILLER)
4.5.1 By means of BOARD and VM20 BEAMS
The component used to join two PANELS with a filler
between them is the ADJUSTABLE CONNECTOR MK.
Joint between two PANELS with a filler PANEL between them.
When it is required to join 2 PANELS with a filler
PANEL between them, they will be joined by means of
the ADJUSTABLE CONNECTOR MK. The FILLER PANEL
is usually used for stripping (after concreting).

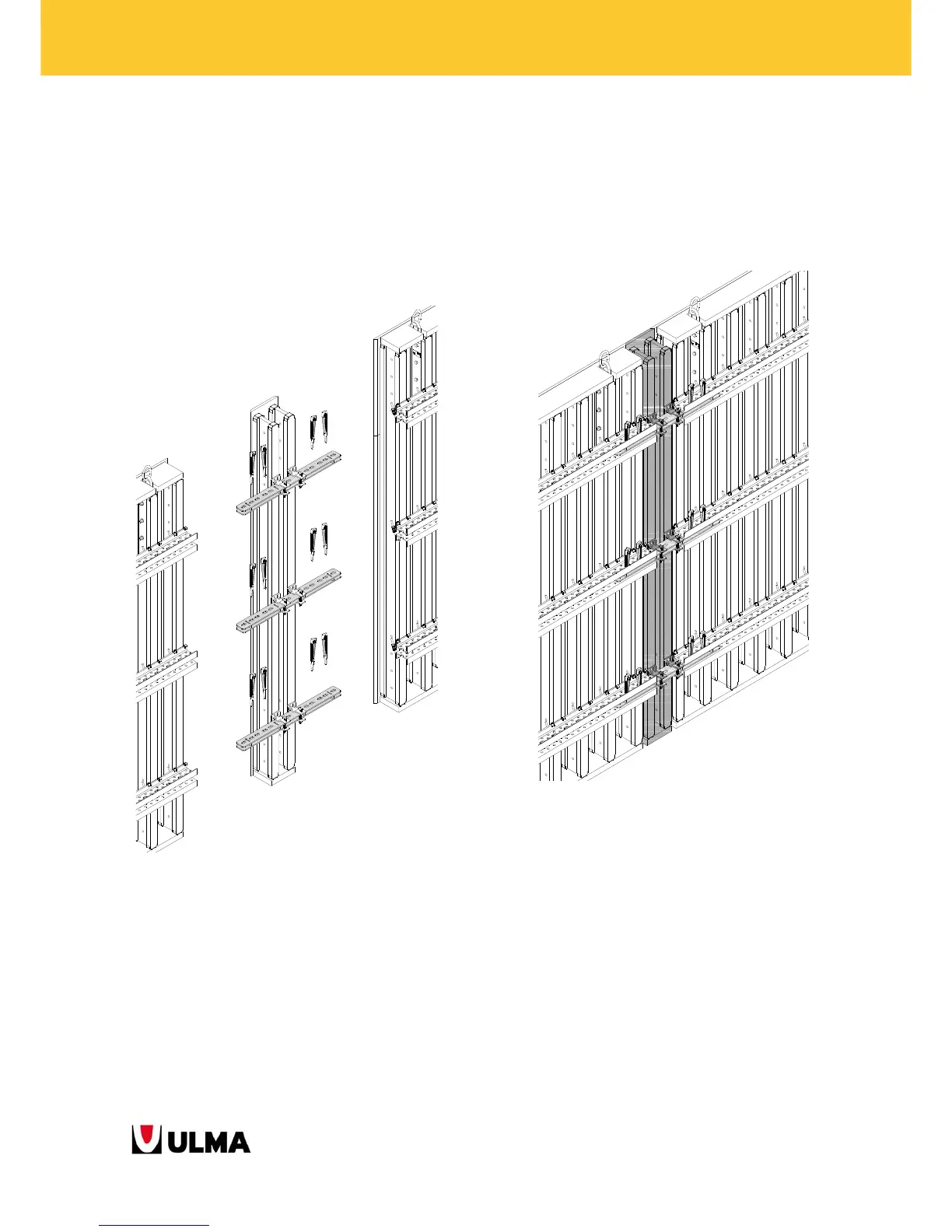

Two PANELS joined with a FILLER PANEL between them.
Main functions of the ADJUSTABLE CONNECTOR
MK:
 To form FILLER PANELS.
 Correct the possible errors of PANEL assembling.
