Ulma ENKOFORM VMK - Walkway Bracket E V-100; W Alkway Bracket in Beam VM 20; W Alkway Bracket in Waler MK-120

ENKOFORM VMK
Construcción
49


ENKOFORM VMK
4.14. WALKWAY BRACKET E V-100

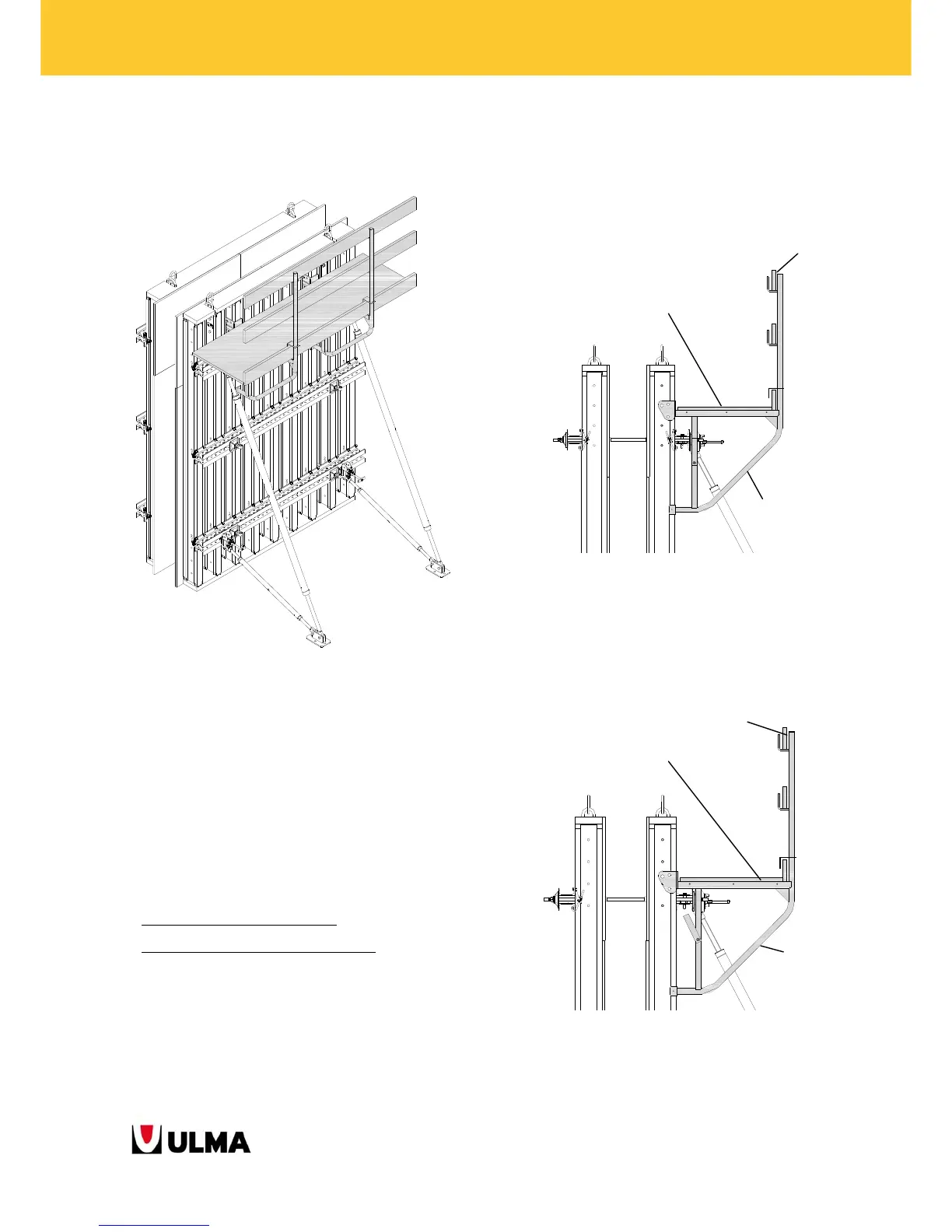

General view of PANELS with TIE RODS, PUSH-PULL PROPS and
E V-100 WALKWAY BRACKETS.

E V-100 WALKWAY BRACKETS allow forming
working platforms to make possible the concreting.
Some planks will be placed on walkway brackets,
forming the working surface. Other planks will act as
handrails.
The WALKWAY BRACKET E V-100 can be placed in:
 BEAM VM20 (vertical position):
 WALER MK-120 (horizontal position):
4.14.1 Walkway bracket in beam VM 20:
The WALKWAY BRACKET E V-100 will be placed in
one of the holes used to place the BEAM VM 20
CONNECTOR. It will be fixed by means of a screw.
WALKWAY BRACKET E V-100 placed vertically in BEAM VM20.
4.14.2 Walkway bracket in waler MK-120:
The WALKWAY BRACKET will lie on the wings of the
UPN.
WALKWAY BRACKET placed on a WALER MK-120 in horizontal
position.
Wood
plank
Walkway
bracket
3-layer-board or
wood planks
Wood
plank
Walkway
bracket
3-layer-board or
wood planks

