ENKOFORM VMK
4.8. ROUND FORMWORK
This type of formwork will be used in walls with radius
bigger than 20 m.
2 different CONNECTORS are used in round
formwork. The ARTICULATED ADJUSTABLE
CONNECTOR MK is used for connecting 2 WALERS
MK inside a round PANEL. The ARTICULATED
CONNECTOR MK is used for connecting 2 round
panels.
4.8.1 Inner solution

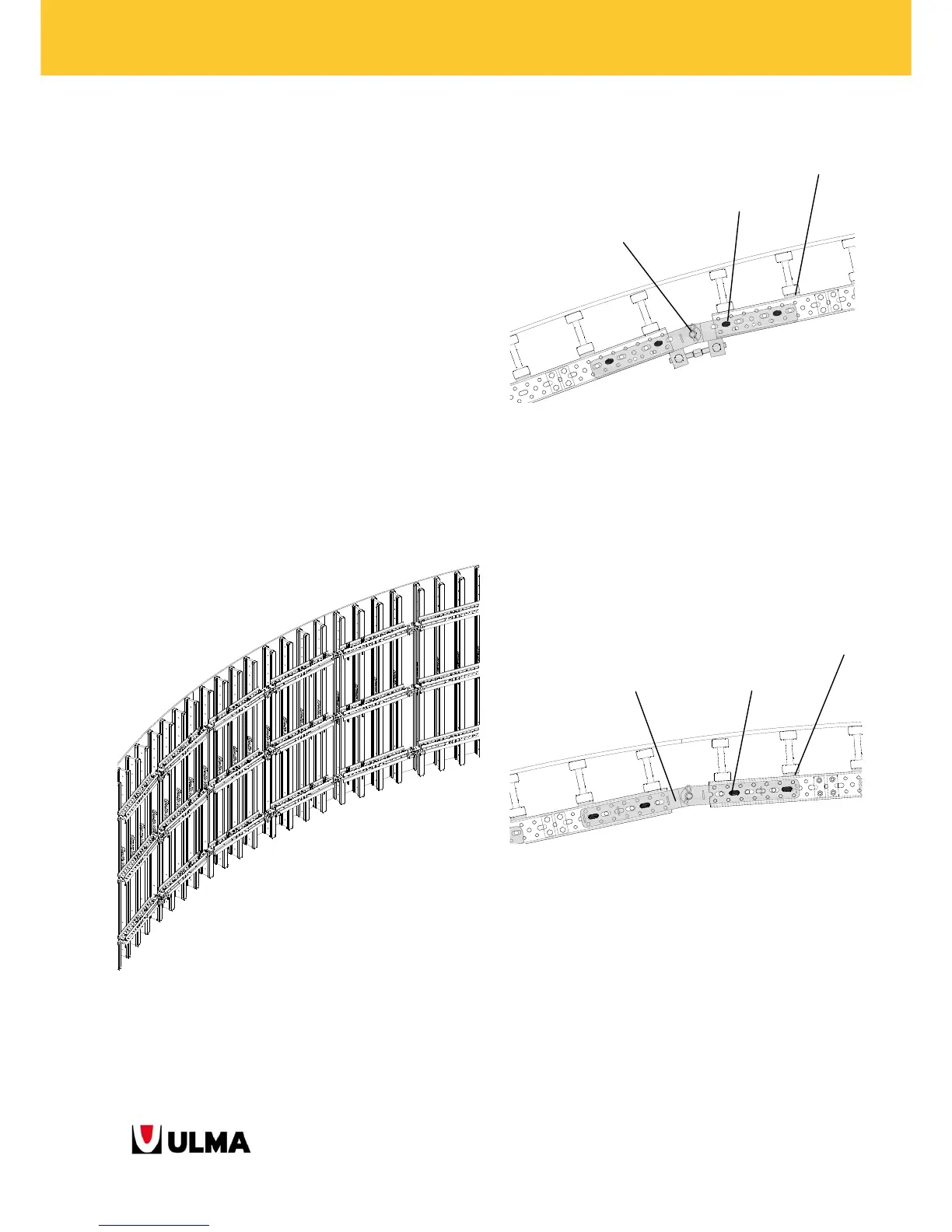

General view of an inner circular formwork.
The ARTICULATED ADJUSTABLE CONNECTOR MK connects 2
different WALERS MK-120 inside 1 PANEL.
Where necessary, TIMBER STUDS are placed
between the BEAM VM20 and WALER MK-120. This
way, the radius is obtained easily.
The ARTICULATED CONNECTOR MK connects 2 different PANELS.
Pin e20x70
Articulated adjustable
connector MK
Panel connector MK
Wedge MK
Timber stud
Timber stud
