ENKOFORM VMK
4.6. 90º CORNERS
In 90º corners, the outer and inner parts will be solved
in different ways:
 The outer part is solved by means of MK OUTSIDE
CORNER HEADS.
 The inner one is solved by means of the CORNER
CONNECTOR MK:
Example of solution to inner 90º corners.

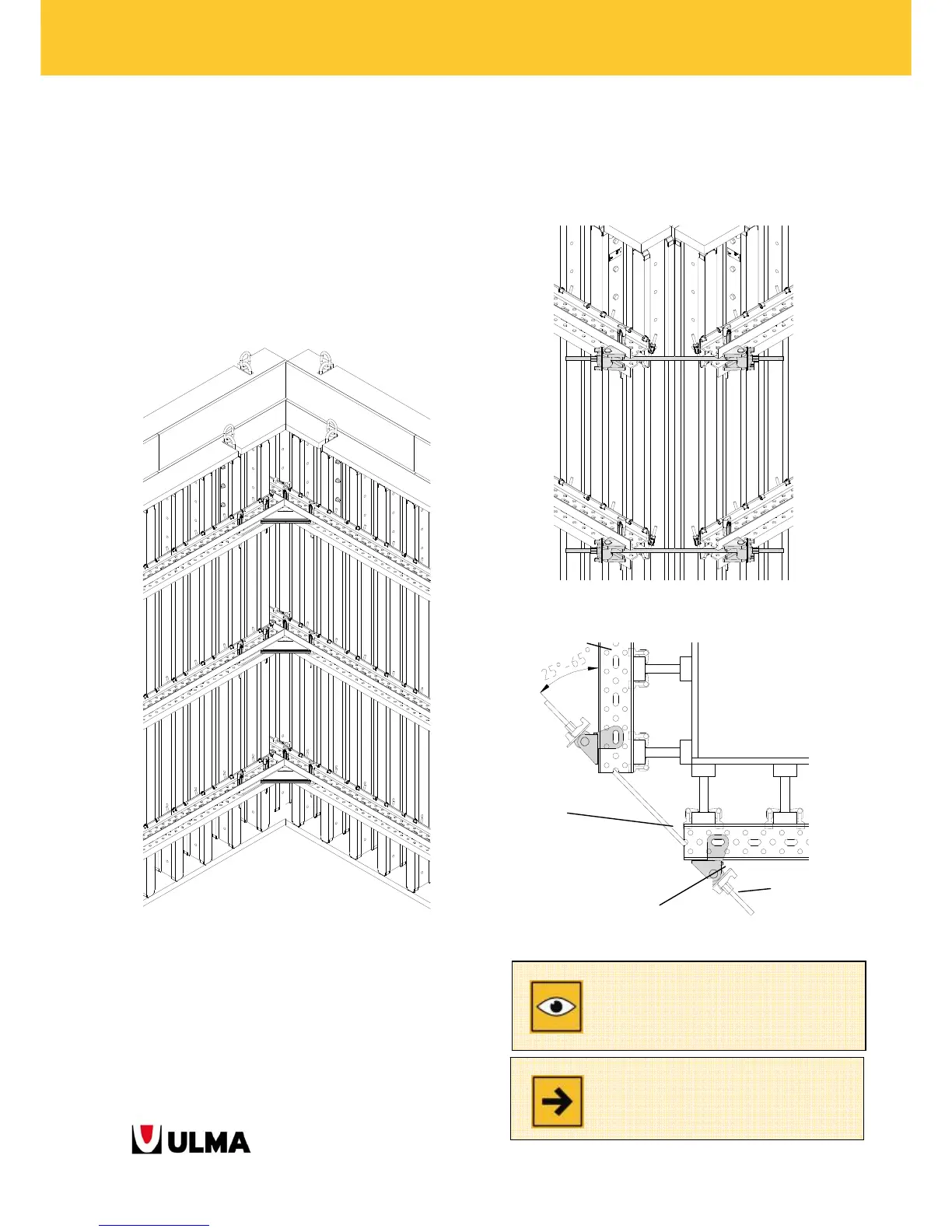

4.6.1 Outer solution. Outside corner head
The outer part of the joint of two PANELS is solved
with the OUTSIDE CORNER HEAD MK.
Solution of the outer part of 90º corners with the OUTSIDE
CORNER HEAD.
Detail of the joints of the PANEL.
Waler MK-120
Outside corner
head MK
Tie rod 15
Plate nut 15
The optimum working angle is 45º. The
working range of the OUTSIDE CORNER
HEAD MK is between 25 and 65º.

Each OUTSIDE CORNER HEAD will have
1 WEDGE MK.

