2. Components and accessories

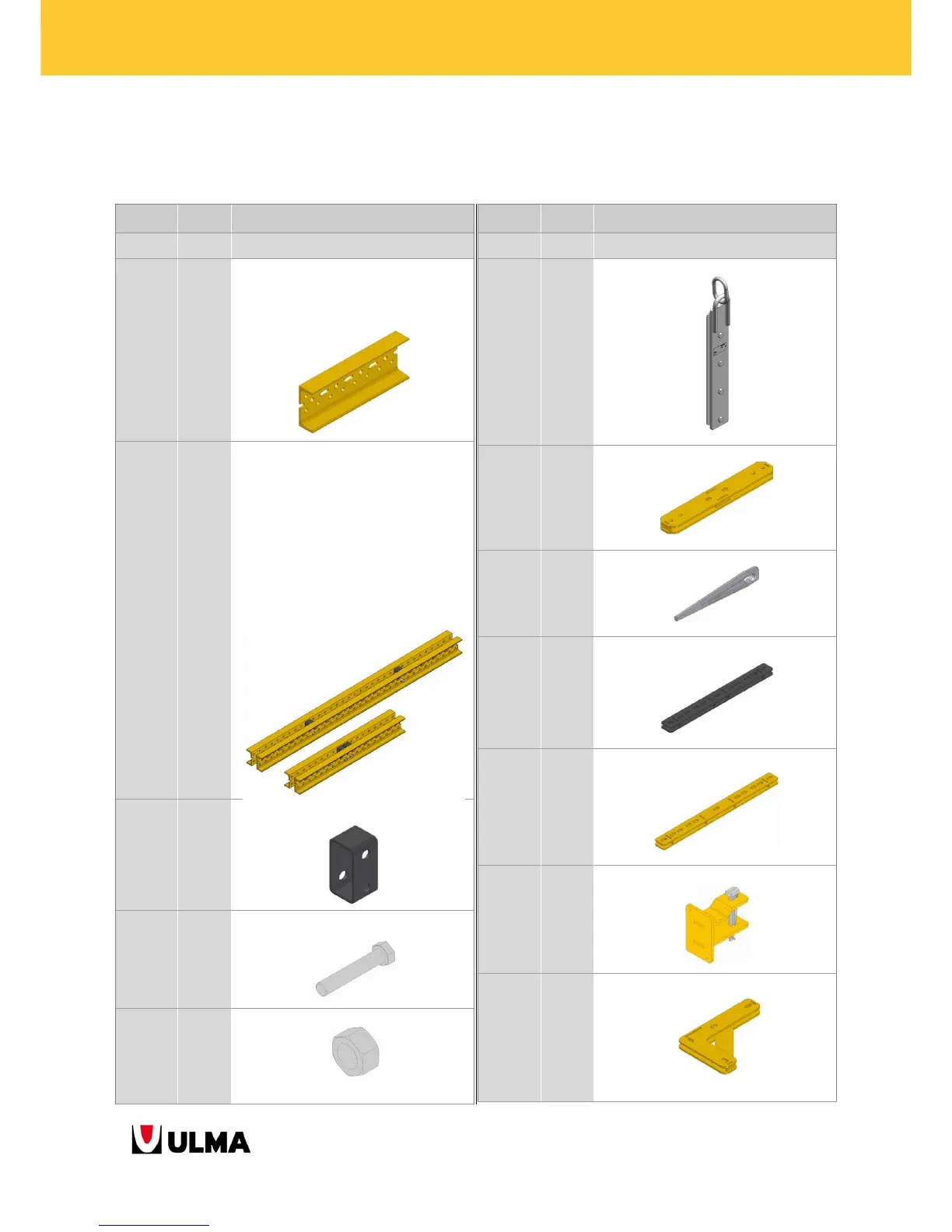

2.1. GRAPHIC DESCRIPTION
Code
Weight
kg.
Name
MK-120 WALERS AND PROFILES
1990104
1990105
1990106
1990107
1990163
6
7,5
9,1
10,7
97,6
PROFILE MK-120 / 0,5
PROFILE MK-120 / 0,625
PROFILE MK-120 / 0,75
PROFILE MK-120 / 0,875
PROFILE MK-120 / 7,875
1990209
1990211
1990213
1990215
1990217
1990219
1990221
1990225
1990229
1990233
1990237
1990239
1990245
29,4
35,4
41,9
48,3
54,3
60,5
68,6
80,9
93,4
107,6
120,1
126,3
146,7
WALER MK-120 / 1,125
WALER MK-120 / 1,375
WALER MK-120 / 1,625
WALER MK-120 / 1,875
WALER MK-120 / 2,125
WALER MK-120 / 2,375
WALER MK-120 / 2,625
WALER MK-120 / 3,125
WALER MK-120 / 3,625
WALER MK-120 / 4,125
WALER MK-120 / 4,625
WALER MK-120 / 4,875
WALER MK-120 / 5,625
1990200 0,46
SPACER TUBE MK-120 / 52
0241690 0,19
BOLT M16x90 DIN-931-8.8
0241600 0,04
SCREW M16 DIN-934-8
Code
Weight
kg.
Name
CONNECTION AND LIFTING COMPONENTS
1960220 10,2 LIFTING BRACKET E V-100

1990700 12,3 WALER CONNECTOR MK
1990801 0,6 WEDGE MK
1990800 9,5 PANEL CONNECTOR MK
1990810 11,1 ADJUSTABLE CONNECTOR MK
1990811 1,81 C-VM20 COUPLING MK
1990890 16,7 CORNER CONNECTOR MK
