4.9. LIFT SHAFTS OR PIERS
Lift shafts and piers are solved in a similar way.

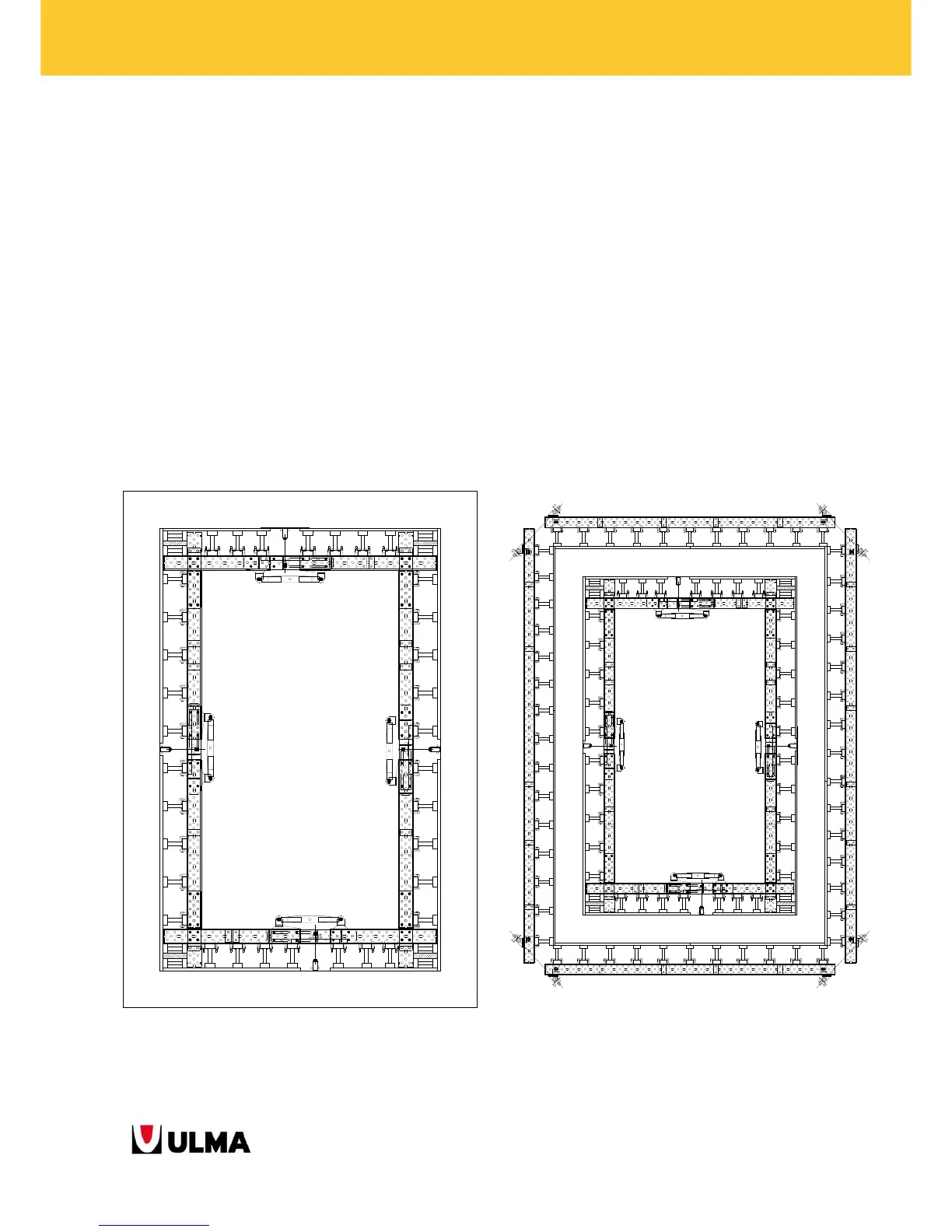

4.9.1 Solution of the inner part
The inner part is solved by means of 4 CORNER
PANELS and 4 COMPENSATION PLATES, because they
are no fair-faced walls. PANELS are connected to each
other by means of ADJUS. COMPENSATION
CONNECTORS MK, ADJUS. COMPENSATION HEADS
MK and PUSH-PULL PROPS.
4.9.2 Solution of the outer part
Whenever it is possible, the outer part will be solved
with one PANEL on each side. In case it were not
possible, the number of PANELS used to solve it will
be as low as possible.
The four straight PANELS will be connected to each
other by means of OUTSIDE CONRNER HEADS MK,
TIE RODS and PLATE NUTS 15.
