ENKOFORM VMK
5 6

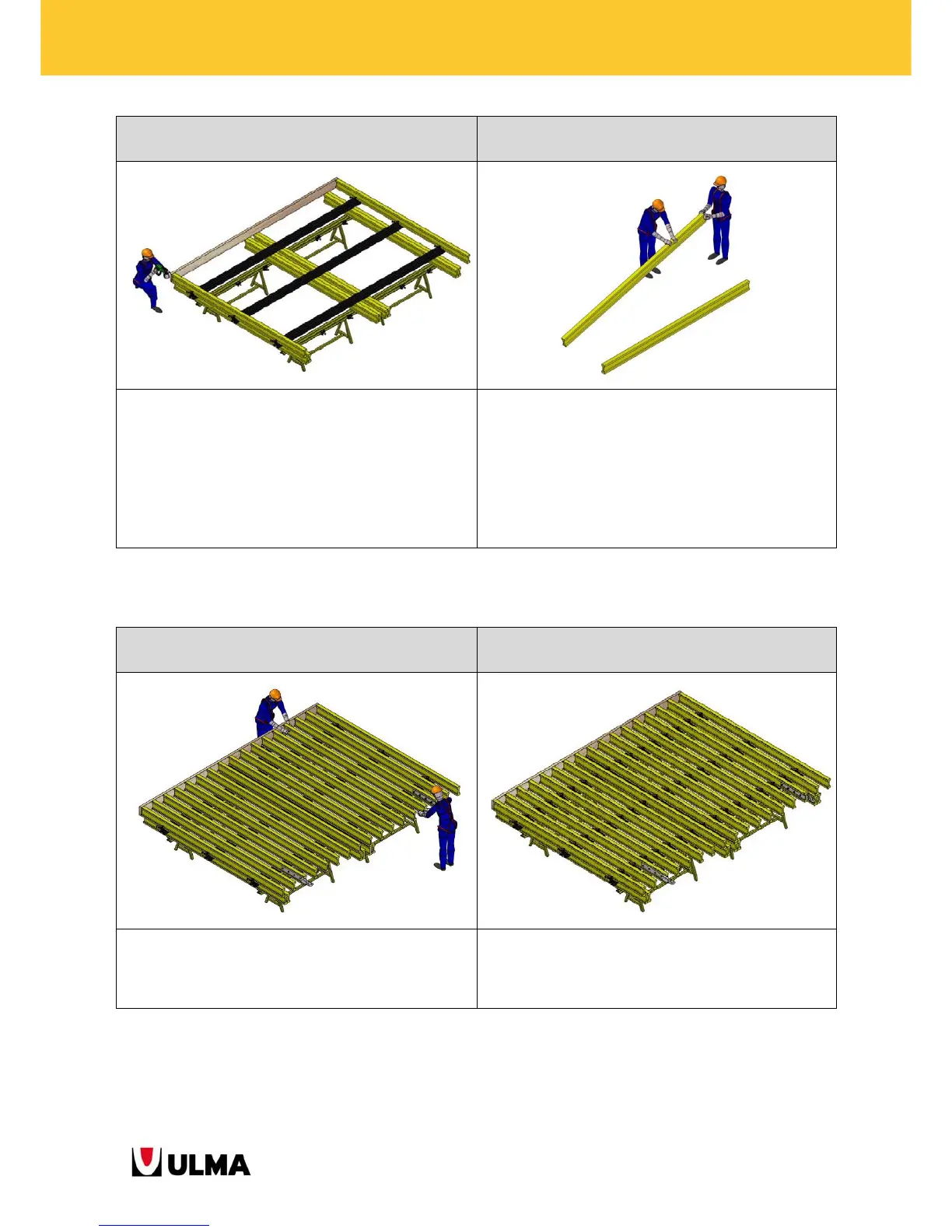

Place 2 VM 20 BEAMS of both corners as indicated in
the drawing.
The joint between VM 20 BEAMS and MK-120
WALERS will be carried out by means of the WALER-
VM20 CLAMP.
Place a plank in the bottom of the PANEL.
Place the E
V
-100 LIFTING BRACKETS to the VM 20
BEAMS.
7 8
Place the VM 20 BEAMS that are left. Join all the VM 20 BEAMS to the WALERS (manually,
or with an electrical screwer) by means of the RVM20
CLAMPS.
