Ultimaker ORIGINAL+ - Page 77

Step 3: clamp assembly Assembling the material feeder 77

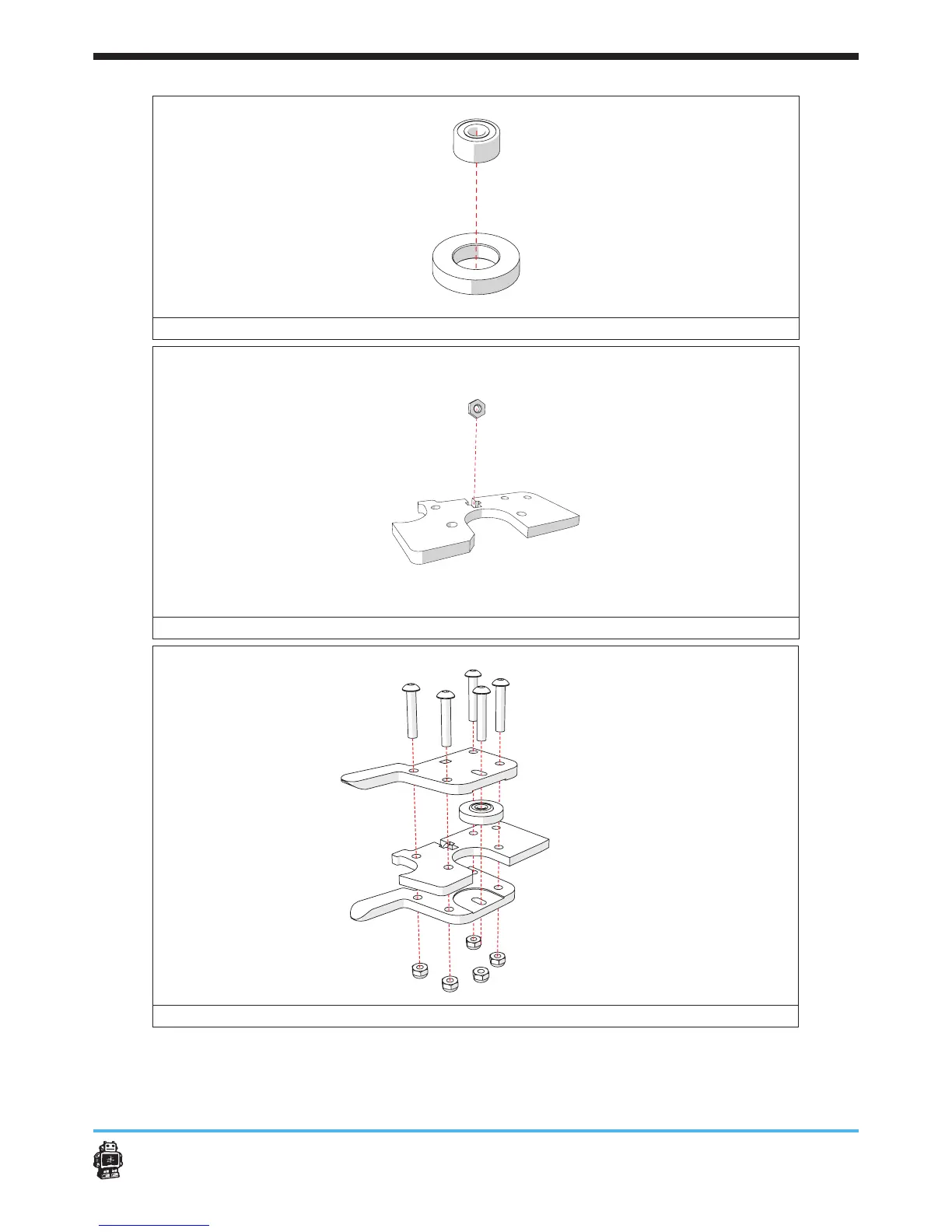

image 94: pushing the ball bearing 8mm in the black wheel
image 95: placing a hex nut 3mm in the mounting plate
image 96: placing the side plates over de mounting plate
