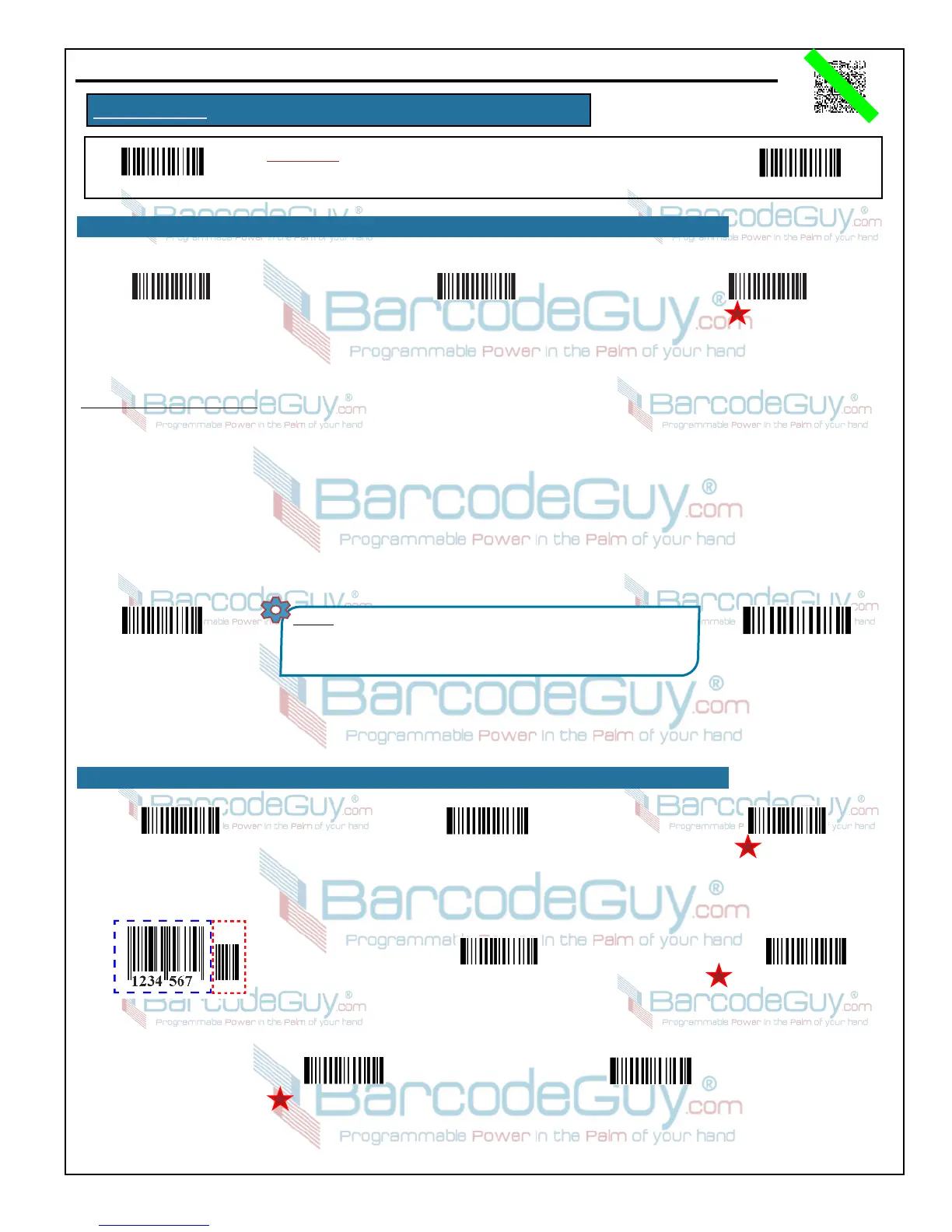

APPENDIX B - SP2100 2D Imager Setup Barccodes, con’t
BarcodeGuy.com® - UnionNet SP2100 User’s Guide
2D Imager
Only
Programming “ON”
Programming “OFF”
Figure B.0
Instructions: To change the option, first scan the Programming “ON” barcode.
Then scan the Option Code. Finally scan the Programming “OFF” barcode.
26
B.3 - Code 128
Set Code 128
Factory Defaults
Enable
Code 128
Disable
Code 128
Use these General Settings to enable or disable all or whole types of barcode symbologies
Min and Max String Lengths - To limit the length of the barcode string as a form of validation, you can set a minimum and
maximum string length. These lengths include check and stop/start digits if applicabl to the symbology. To set the string length:
1. Scan the Programming “ON” barcode.
2. Scan the Set Min Length barcode, then scan the digit code(s) from Section B.29 of this Appendix (B) for the number representing
the minimum length.
3. Scan the Save Programming barcode.
4. Scan the Set Max Length barcode, then scan the digit code(s) from Section B.29 of this Appendix (B) for the number representing
the minimum length.
Set Code 128
Min Code Length
(Default = 1)
Set Code 128
Max Code Length
(Default = 48)
NOTES: * String length must be less than 127 bytes.
* MAX LENGTH must be less than or equal to MIN LENGTH.
* If MIN LENGTH = MAXLENGTH, only that single length barcode
string will be allowed.
B.4 - UCC/EAN-8
Set EAN-8
Factory Defaults
Enable
EAN-8
Disable
EAN-8
2-Digit Addenda Code in Red
Transmit EAN-8
2-Digit Addenda
Don’t Transmit
EAN-8 2-Digit Addenda
Transmit EAN-8
Check Digit
(Single, Right)
Don’t Transmit
EAN-8 Check Digit
(Single, Right)
