UnionNet SP2100 - Data Matrix; B.26 - Data Matrix

APPENDIX B - SP2100 2D Imager Setup Barccodes, con’t
BarcodeGuy.com® - UnionNet SP2100 User’s Guide
2D Imager
Only
Programming “ON”
Programming “OFF”
Figure B.0
Instructions: To change the option, first scan the Programming “ON” barcode.
Then scan the Option Code. Finally scan the Programming “OFF” barcode.
43

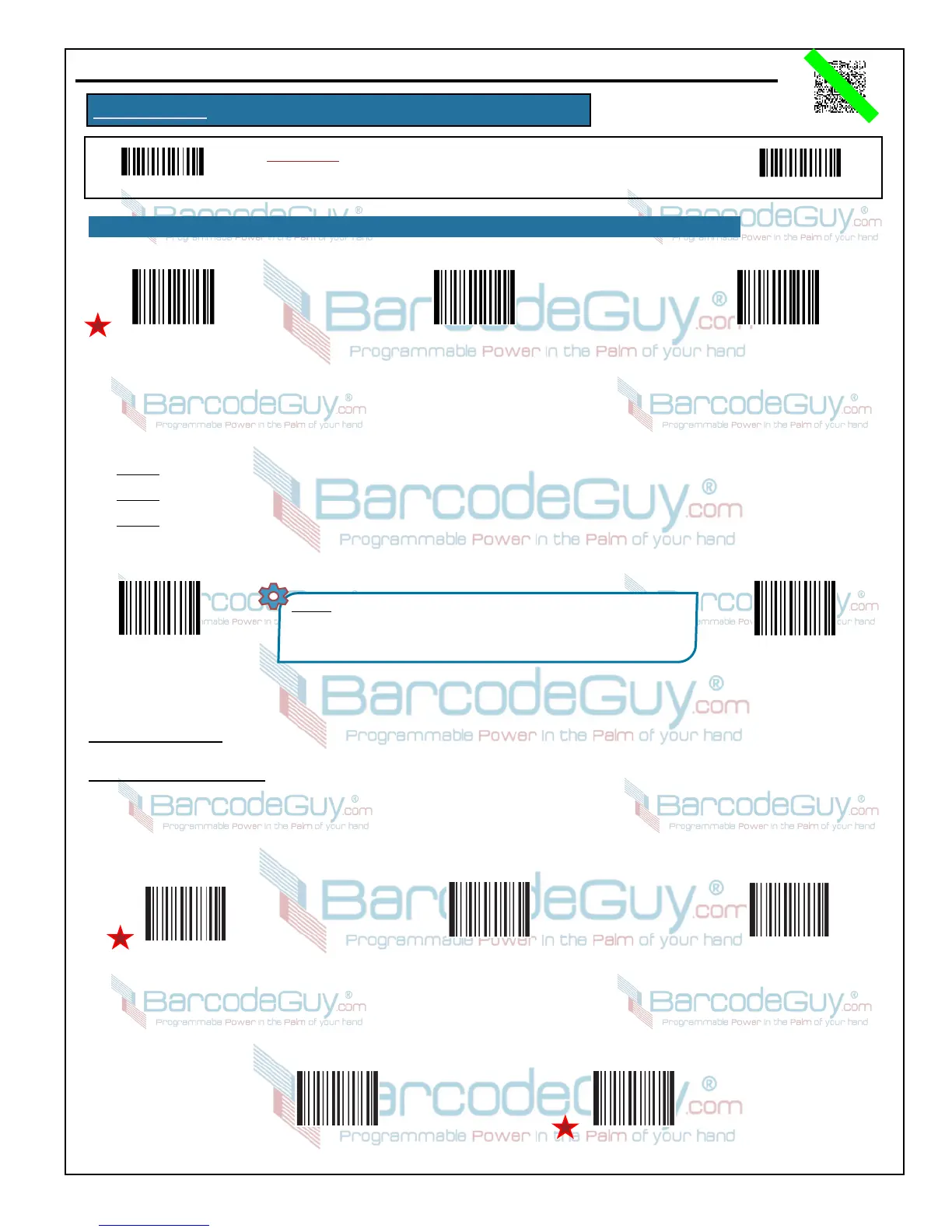

B.26 - Data Matrix
Set Data Matrix
Factory Defaults
Enable
Data Matrix
Disable
Data Matrix
4. Scan the Set Max Length barcode, then scan the digit code(s) from Section B.29 of this Appendix (B) for the number
representing the minimum length.
5. Scan the Save Programming barcode, then scan the Programming “OFF” barcode.
You can read multiple barcodes within the imager’s field of view. There are three modes:
● Mode 1Readonebarcodeonly.
● Mode 2Readfixednumberofbarcodesonly.
● Mode 3CompositeReading.Trytodecodethefixednumberofbarcodes.Iffailurethenreadonebarcodeonly.
Set Data Matrix
Max Code Length
(Default = 3116)
Set Data Matrix
Min Code Length
(Default = 1)
NOTES: * String length must be less than 65535 bytes.
* MAX LENGTH must be less than or equal to MIN LENGTH.
* If MIN LENGTH = MAXLENGTH, only that single length barcode
string will be allowed.
Data Matrix
Single Code
Data Matrix
Twin Code
Data Matrix
Single & Twin Code
Programming Method: Scan the Programming “ON” barcode, then the Mode Barcode. If you scan Mode 2 or Mode 3, then
scan the appropriate “Number of Barcodes” numeric code below. Then scan the Programming “OFF” barcode.
Min and Max String Lengths - To limit the length of the barcode string as a form of validation, you can set a minimum and
maximum string length. These lengths include check and stop/start digits if applicabl to the symbology. To set the string length:
1. Scan the Programming “ON” barcode.
2. Scan the Set Min Length barcode, then scan the digit code(s) from Section B.29 of this Appendix (B) for the number
representing the minimum length.
3. Scan the Save Programming barcode.
4. Scan the Set Max Length barcode, then scan the digit code(s) from Section B.29 of this Appendix (B) for the number
representing the minimum length.
Data Matrix
Square Only
Data Matrix
Square & Rectangular
