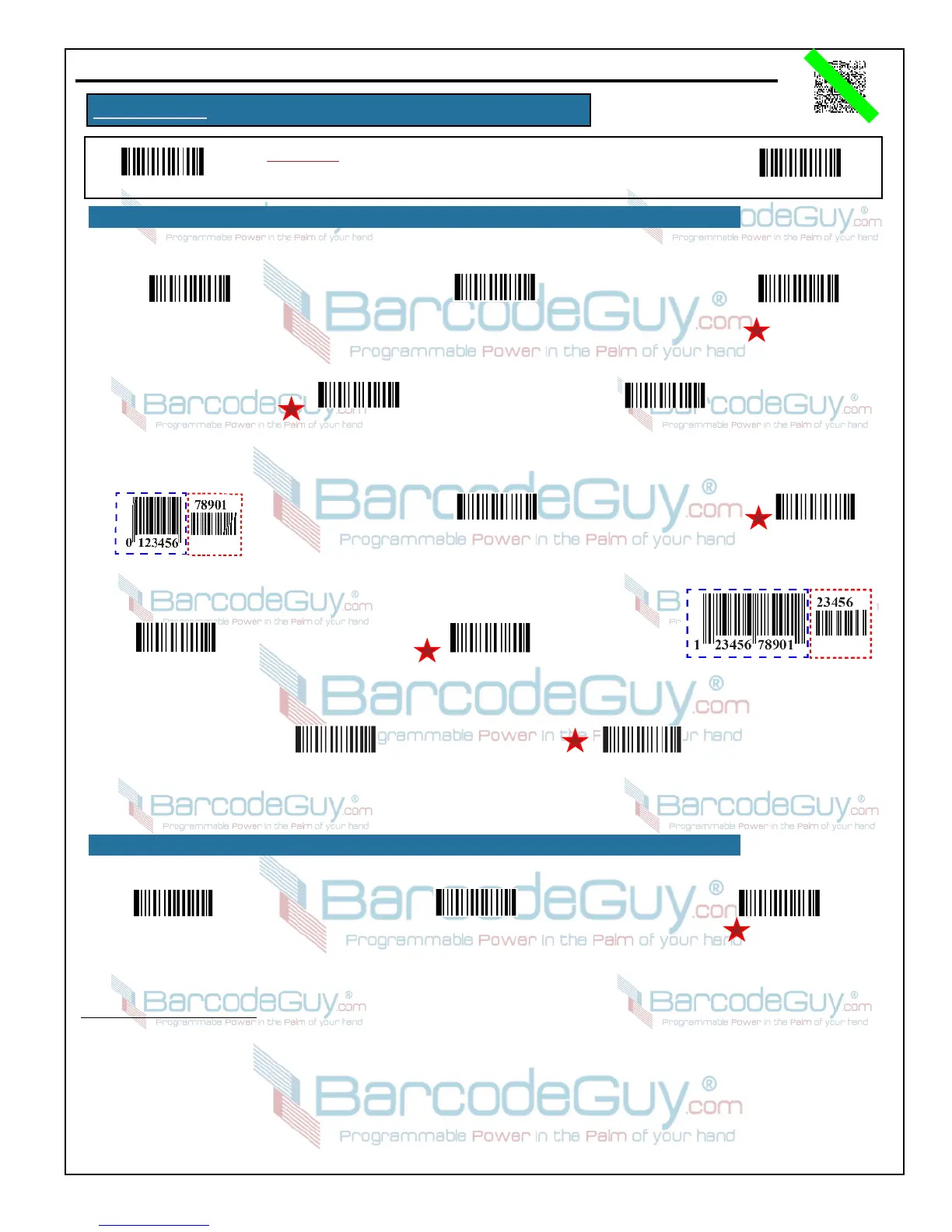

APPENDIX B - SP2100 2D Imager Setup Barccodes, con’t
BarcodeGuy.com® - UnionNet SP2100 User’s Guide
2D Imager
Only
Programming “ON”
Programming “OFF”
Figure B.0
Instructions: To change the option, first scan the Programming “ON” barcode.
Then scan the Option Code. Finally scan the Programming “OFF” barcode.
29
B.7 - UPC-A
Enable
UPC-A
Disable
UPC-A
Set UPC-A
Factory Defaults
Transmit UPC-A
Check Digit
(Single, Right)
Don’t Transmit
UPC-A Check Digit
(Single, Right)
Transmit UPC-A
2-Digit Addenda
Don’t Transmit
UPC-A 2-Digit Addenda
5-Digit Addenda Code in Red
Transmit UPC-A
5-Digit Addenda
Don’t Transmit
UPC-A 5-Digit Addenda
2-Digit Addenda Code in Red
UPC-A Transmit
Default 0
UPC-A Don’t Transmit
Transmit Default 0
B.8 - Interleaved 2 of 5 ( I2of5 )
Enable
I2of5
Disable
I2of5
Set I2of5
Factory Defaults
5. Scan the Save Programming barcode, then scan the Programming “OFF” barcode.
Min and Max String Lengths - To limit the length of the barcode string as a form of validation, you can set a minimum and maximum
string length. These lengths include check and stop/start digits if applicabl to the symbology. To set the string length:
1. Scan the Programming “ON” barcode.
2. Scan the Set Min Length barcode, then scan the digit code(s) from Section B.29 of this Appendix (B) for the number representing the
minimum length.
3. Scan the Save Programming barcode.
4. Scan the Set Max Length barcode, then scan the digit code(s) from Section B.29 of this Appendix (B) for the number representing the
minimum length.
