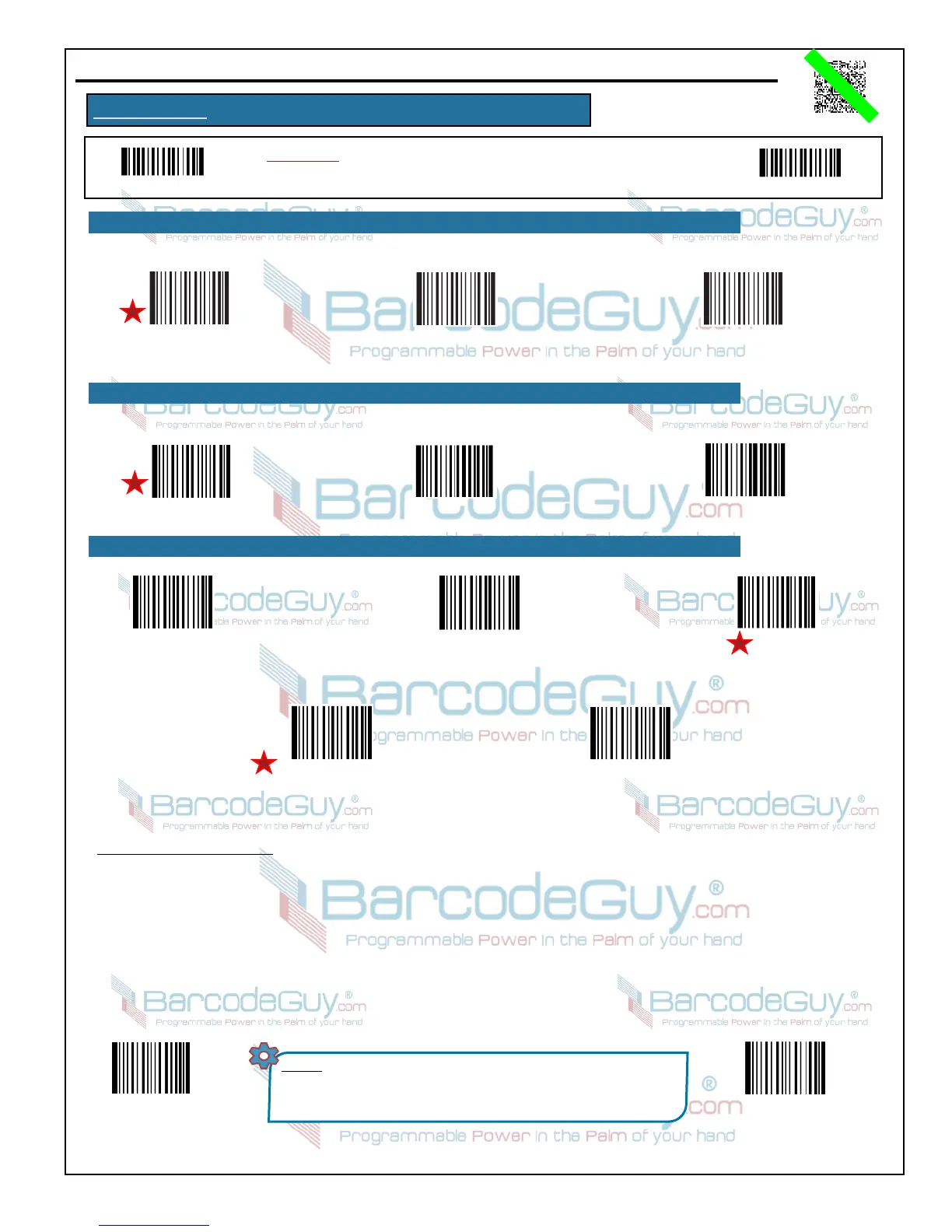

APPENDIX B - SP2100 2D Imager Setup Barccodes, con’t
BarcodeGuy.com® - UnionNet SP2100 User’s Guide
2D Imager
Only
Programming “ON”
Programming “OFF”
Figure B.0
Instructions: To change the option, first scan the Programming “ON” barcode.
Then scan the Option Code. Finally scan the Programming “OFF” barcode.
31
B.10 - ITF-6
B.9 - ITF-14
5. Scan the Save Programming barcode, then scan the Programming “OFF” barcode.
Disable ITF-14
Enable ITF-14 Do Not
Transmit Check Digit
Enable ITF-14 Transmit
Check Digit
ITF-14 is a 14 character long Interleaved 2 of 5 barcode with a check digit.
Disable ITF-6
Enable ITF-6 Do Not
Transmit Check Digit
Enable ITF-6 Transmit
Check Digit
B.11 - Code 39
Set Code 39
Factory Defaults
Enable
Code 39
Disable
Code 39
ITF-6 is a 6 character long Interleaved 2 of 5 barcode with a check digit.
Transmit Code 39
Start / Stop Digits
Don’t Transmit Code 39
Start / Stop Digits
Because Code 39 is commonly generated without a check digit, it has asterick (*) start and stop characters surrounding the encoded string:
Min and Max String Lengths - To limit the length of the barcode string as a form of validation, you can set a minimum and maximum
string length. These lengths include check and stop/start digits if applicabl to the symbology. To set the string length:
1. Scan the Programming “ON” barcode.
2. Scan the Set Min Length barcode, then scan the digit code(s) from Section B.29 of this Appendix (B) for the number representing
the minimum length.
3. Scan the Save Programming barcode.
4. Scan the Set Max Length barcode, then scan the digit code(s) from Section B.29 of this Appendix (B) for the number representing
the minimum length.
Set Code 39
Min Code Length
(Default = 1)
Set Code 39
Max Code Length
(Default = 42)
NOTES: * String length must be less than 127 bytes.
* MAX LENGTH must be less than or equal to MIN LENGTH.
* If MIN LENGTH = MAXLENGTH, only that single length barcode
string will be allowed.
To Next Page
