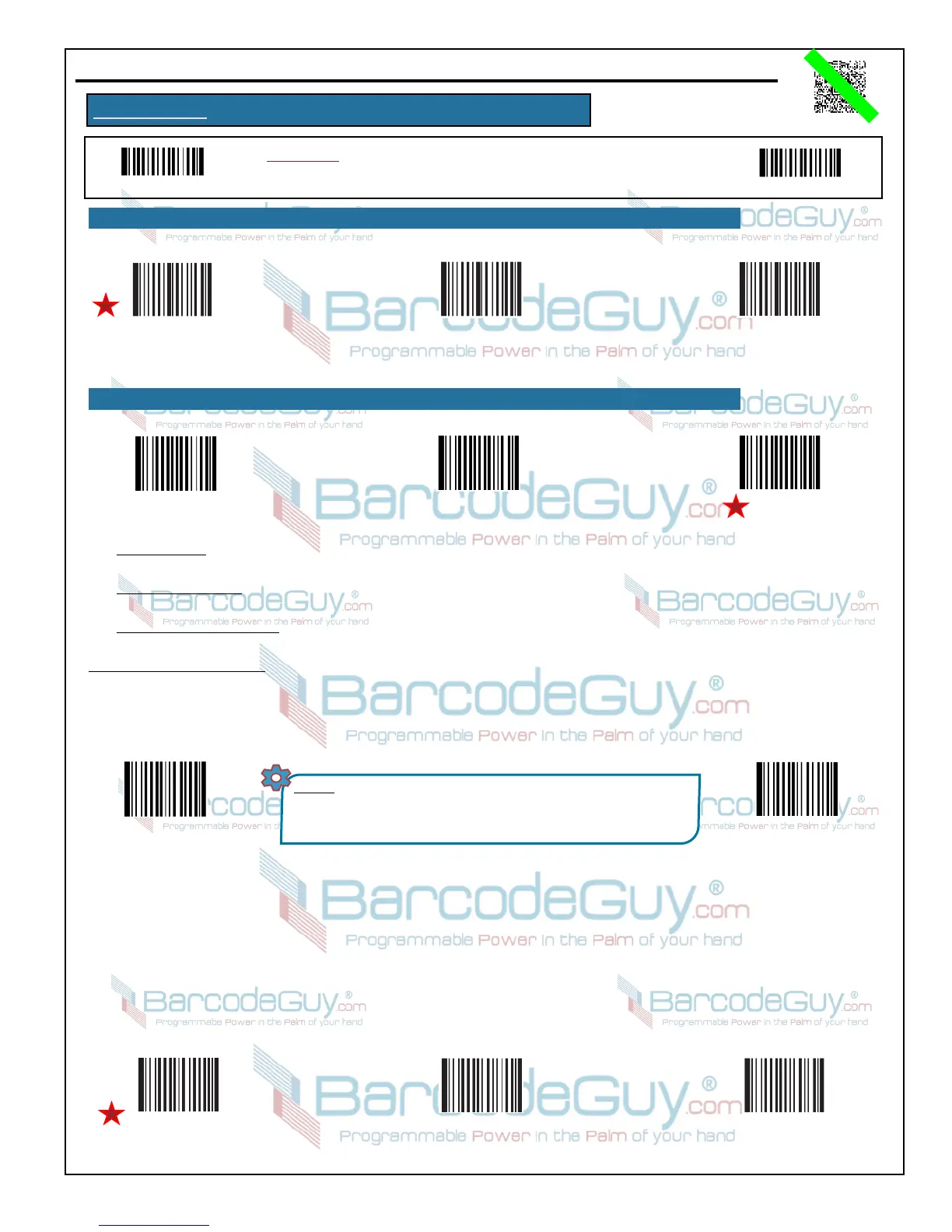

APPENDIX B - SP2100 2D Imager Setup Barccodes, con’t
BarcodeGuy.com® - UnionNet SP2100 User’s Guide
2D Imager
Only
Programming “ON”
Programming “OFF”
Figure B.0
Instructions: To change the option, first scan the Programming “ON” barcode.
Then scan the Option Code. Finally scan the Programming “OFF” barcode.
40
B.22 - MSI-Plessey, con’t
MSI-Plessey - Double Check
Digits, MOD 10/ MOD 10
MSI-Plessey - Single
Check Digit, MOD 10
MSI-Plessey - Double Check
Digits, MOD 10/ MOD 11
B.23 - PDF417
Set PDF417
Factory Defaults
Enable
PDF417
Disable
PDF417
● No Check Digit - Read without performing the check using the last digit and transmit all digits. In effect, there is no check
digit present.
● Transmit Check Digit - The last digit is a check digit. Perform the mathematical check using the last digit as validation.
Transmit the check digit as part of the string to the host.
● Check Digit Don’t Transmit - The last digit is a check digit. Perform the mathematical check using the last digit as validation,
but don't transmit the check digit to the host.
Min and Max String Lengths - To limit the length of the barcode string as a form of validation, you can set a minimum and
maximum string length. These lengths include check and stop/start digits if applicabl to the symbology. To set the string length:
1. Scan the Programming “ON” barcode.
Set PDF417
Max Code Length
(Default = 2710)
Set PDF417
Min Code Length
(Default = 1)
NOTES: * String length must be less than 65535 bytes.
* MAX LENGTH must be less than or equal to MIN LENGTH.
* If MIN LENGTH = MAXLENGTH, only that single length barcode
string will be allowed.
2. Scan the Set Min Length barcode, then scan the digit code(s) from Section B.29 of this Appendix (B) for the number
representing the minimum length.
3. Scan the Save Programming barcode.
4. Scan the Set Max Length barcode, then scan the digit code(s) from Section B.29 of this Appendix (B) for the number
representing the minimum length.
5. Scan the Save Programming barcode, then scan the Programming “OFF” barcode.
Single PDF417
Only
Single & Twin
PDF417
Twin PDF417
Only
