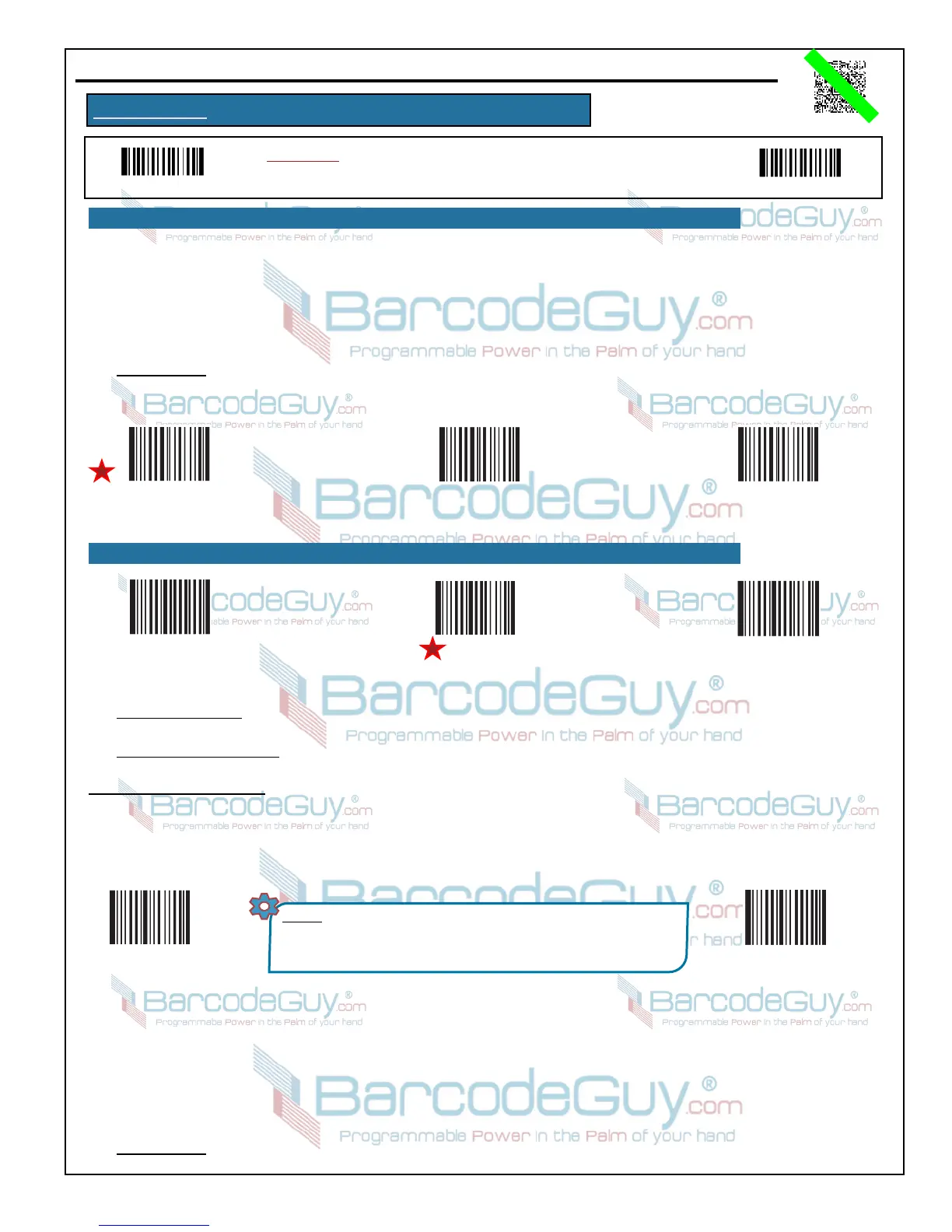

APPENDIX B - SP2100 2D Imager Setup Barccodes, con’t
BarcodeGuy.com® - UnionNet SP2100 User’s Guide
2D Imager
Only
Programming “ON”
Programming “OFF”
Figure B.0
Instructions: To change the option, first scan the Programming “ON” barcode.
Then scan the Option Code. Finally scan the Programming “OFF” barcode.
38
B.20 - Standard 25, con’t
3. Scan the Save Programming barcode.
4. Scan the Set Max Length barcode, then scan the digit code(s) from Appendix G for the number representing the minimum length.
5. Scan the Save Programming barcode, then scan the Programming “OFF” barcode.
Stanedard 25 may include Check Digit (not compulsory) as the last digit of the encoded string. When used, the check digit is the result of
the symbology's mathematical check of the preceding digits. Below are the options:
● No Check Digit - Read without performing the check using the last digit and transmit all digits. In effect, there is no check digit
present.
Standard 25 - Check Digit
Don’t Transmit
Standard 25 - Transmit
Check Digit
Standard 25
No Check Digit
B.21 - Plessey
Set Plessey
Factory Defaults
Enable
Plessey
Disable
Plessey
● Transmit Check Digit - The last digit is a check digit. Perform the mathematical check using the last digit as validation.
Transmit the check digit as part of the string to the host.
● Check Digit Don’t Transmit - The last digit is a check digit. Perform the mathematical check using the last digit as validation,
but don't transmit the check digit to the host.
Min and Max String Lengths - To limit the length of the barcode string as a form of validation, you can set a minimum and
maximum string length. These lengths include check and stop/start digits if applicabl to the symbology. To set the string length:
1. Scan the Programming “ON” barcode.
2. Scan the Set Min Length barcode, then scan the digit code(s) from Section B.29 of this Appendix (B) for the number
representing the minimum length.
Set Plessey
Max Code Length
(Default = 48)
Set Plessey
Min Code Length
(Default = 4)
NOTES: * String length must be less than 127 bytes.
* MAX LENGTH must be less than or equal to MIN LENGTH.
* If MIN LENGTH = MAXLENGTH, only that single length barcode
string will be allowed.
3. Scan the Save Programming barcode.
4. Scan the Set Max Length barcode, then scan the digit code(s) from Section B.29 of this Appendix (B) for the number representing
the minimum length.
5. Scan the Save Programming barcode, then scan the Programming “OFF” barcode.
Plessey may include a Check Digit (not compulsory) as the last digit of the encoded string. When used, the check digit is the result of the
symbology's mathematical check of the preceding digits. Below are the options:
● No Check Digit - Read without performing the check using the last digit and transmit all digits. In effect, there is no check digit
present.
