Unitronics Unistream URD-0800 - Wiring Diagram

Unitronics
141

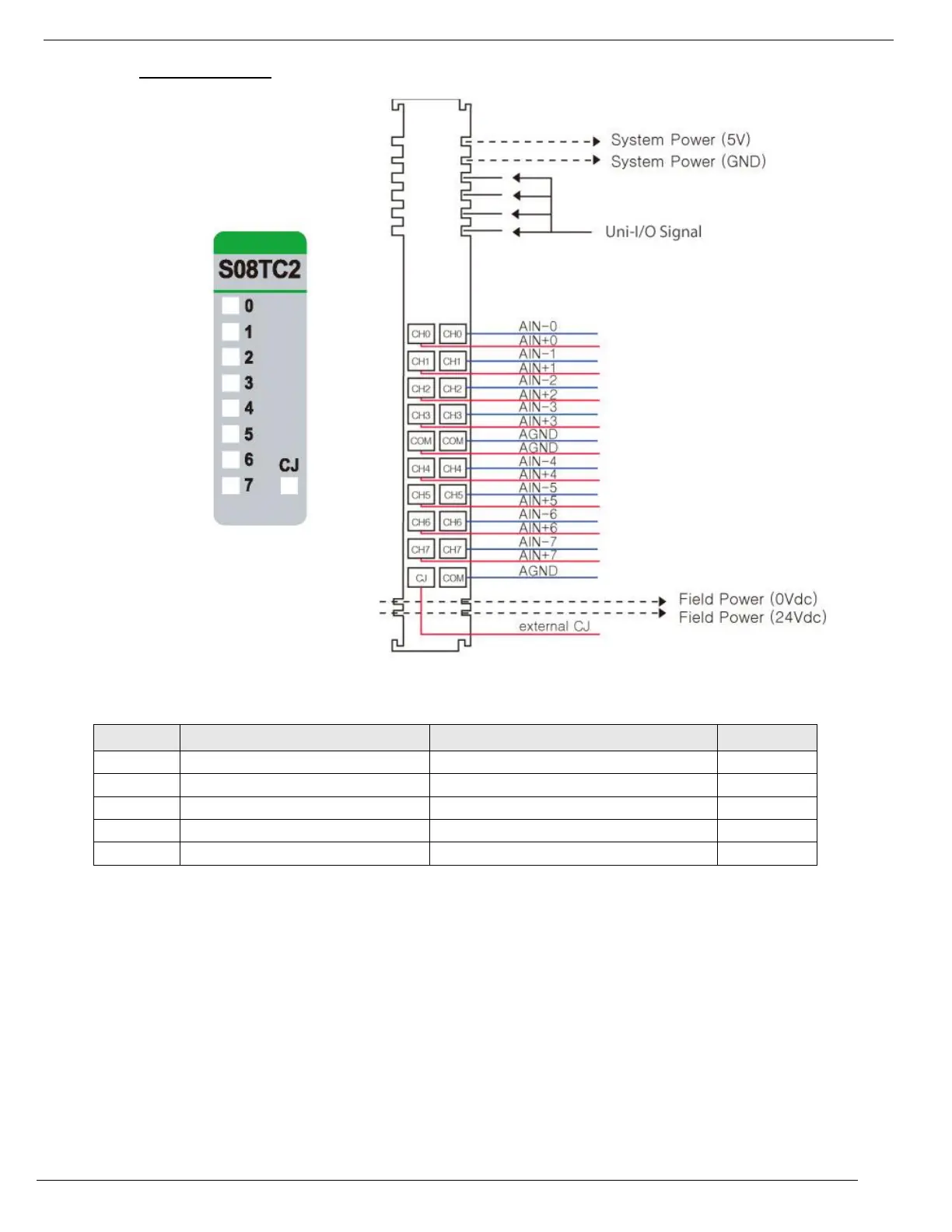

1. Wiring Diagram
Pin No.
Signal Description
Signal Description
Pin No.
0
TC 0+
TC 0-
1
2
TC 1+
TC 1-
3
4
TC 2+
TC 2-
5
6
TC 3+
TC 3-
7
8
CJ
AGND
9
