Unitronics Unistream URD-0800 - Wiring Diagram

Unitronics
45

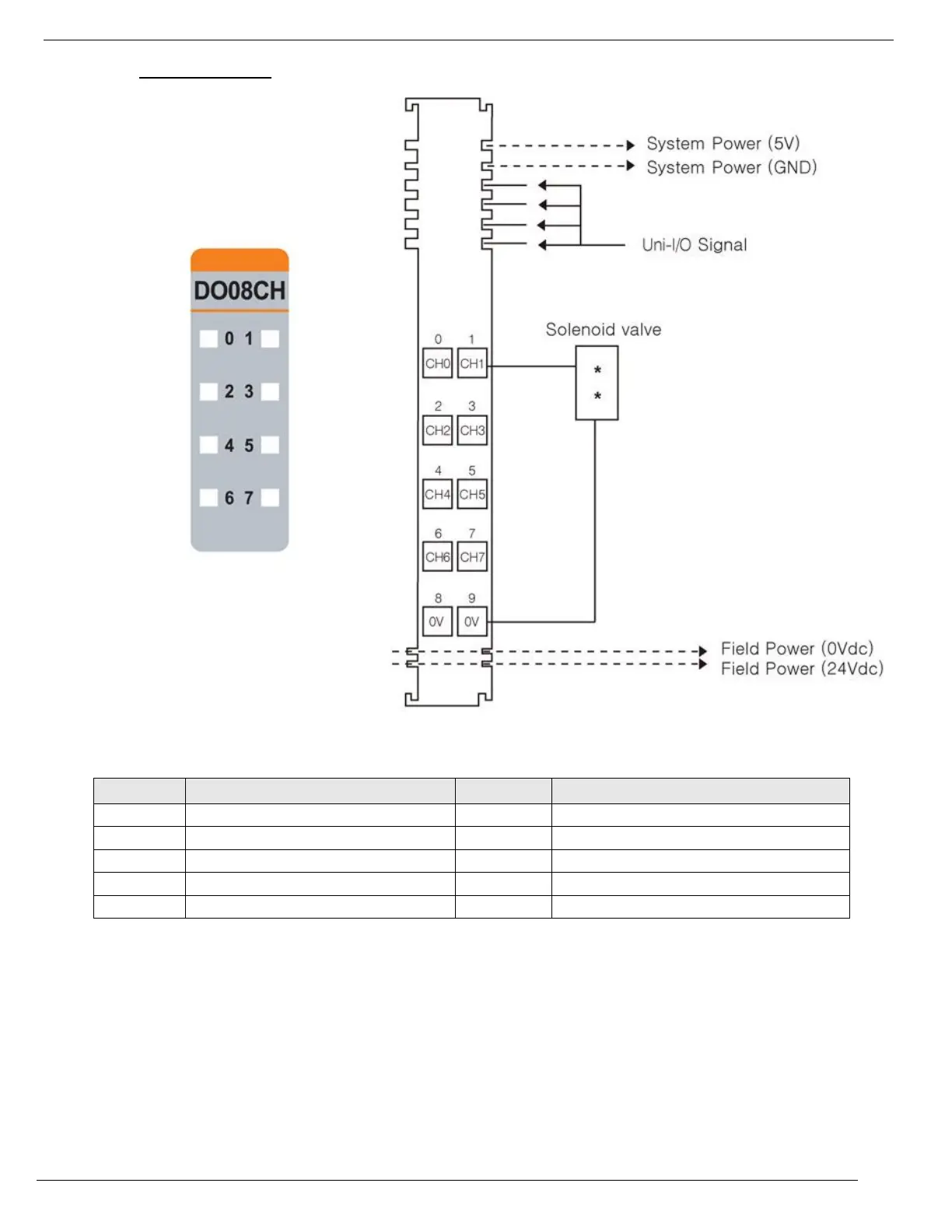

1. Wiring Diagram
Pin No.
Signal Description
Pin No.
Signal Description
0
Output 0
1
Output 1
2
Output 2
3
Output 3
4
Output 4
5
Output 5
6
Output 6
7
Output 7
8
Common (Field Power 0V)
9
Common (Field Power 0V)
