Unitronics Unistream URD-0800 - Wiring Diagram

4/19
Unitronics
36

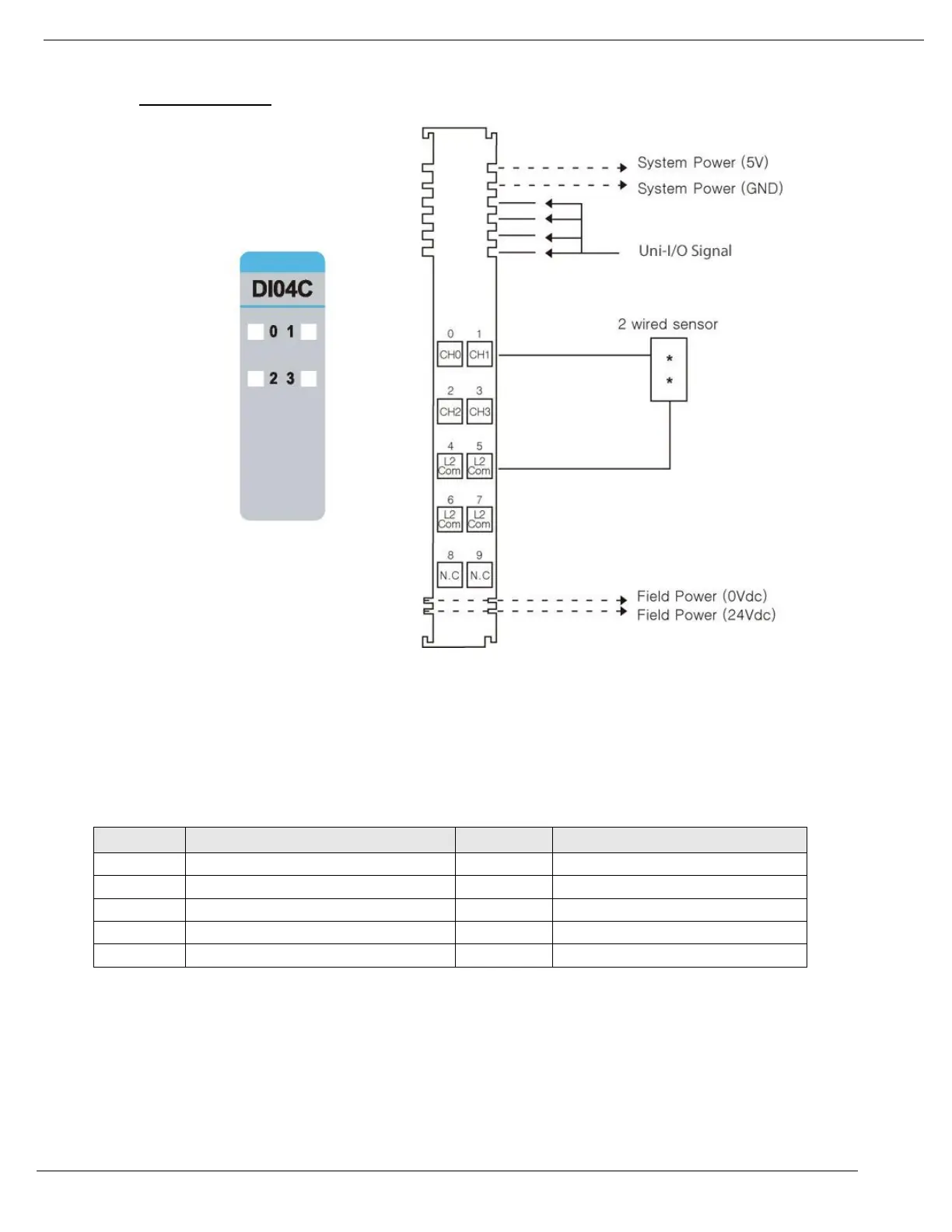

1. Wiring Diagram
Pin No.
Signal Description
Pin No.
Signal Description
0
Input 0
1
Input 1
2
Input 2
3
Input 3
4
Input Common ( L2/N )
5
Input Common ( L2/N )
6
Input Common ( L2/N )
7
Input Common ( L2/N )
8
N.C
9
N.C
