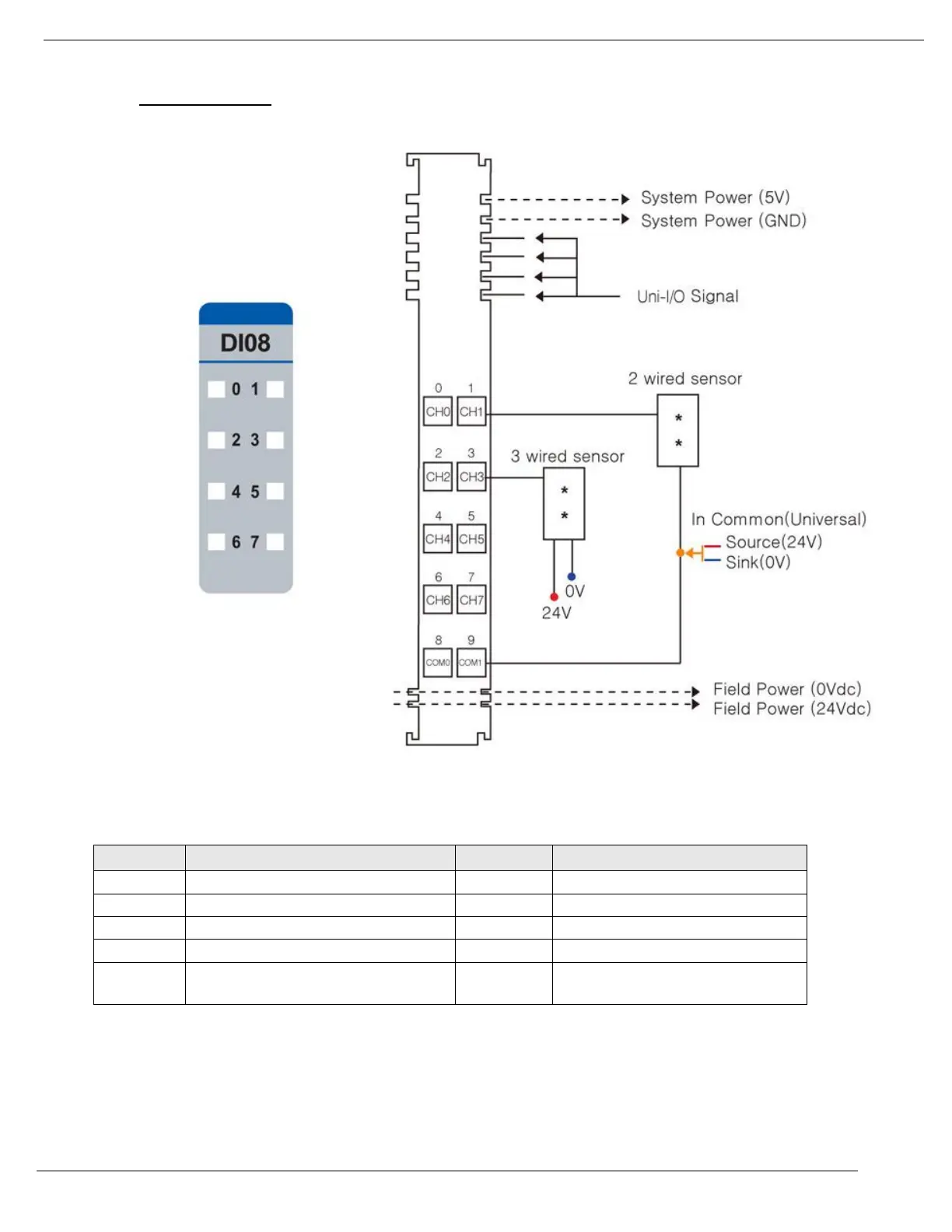

1. Wiring Diagram
Pin No.
Signal Description
Pin No.
Signal Description
0
Input 0
1
Input 1
2
Input 2
3
Input 3
4
Input 4
5
Input 5
6
Input 6
7
Input 7
8
Common(Sink Oper.0V /
Source Oper.24V)
9
Common(Sink Oper.0V /
Source Oper.24V)
