Unitronics Unistream URD-0800 - Wiring Diagram

4/19
Unitronics
96

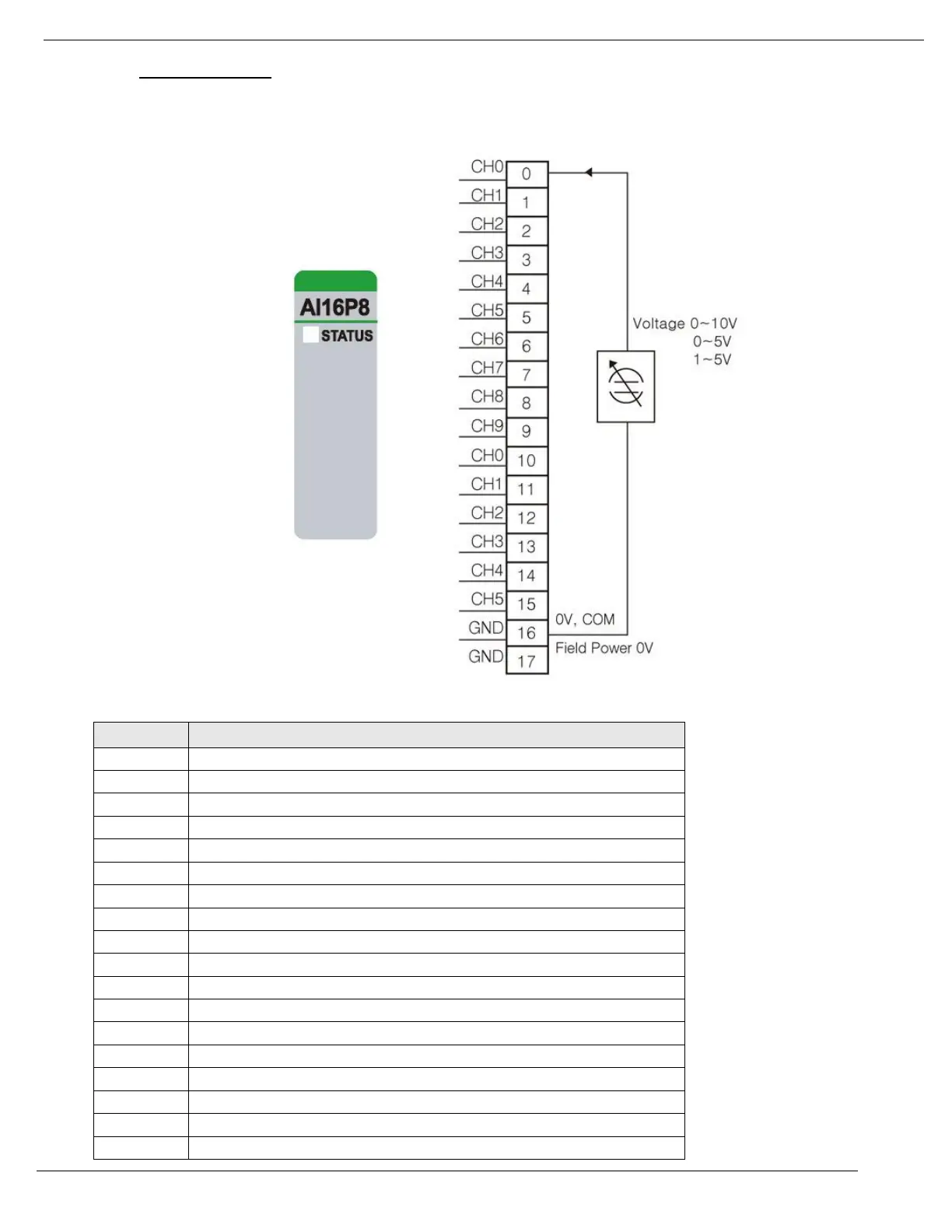

1. Wiring Diagram
Pin No.
Signal Description
0
Input 0
1
Input 1
2
Input 2
3
Input 3
4
Input 4
5
Input 5
6
Input 6
7
Input 7
8
Input 8
9
Input 9
10
Input 10
11
Input 11
12
Input 12
13
Input 13
14
Input 14
15
Input 15
16
Input Common(AGND)
17
Input Common(AGND)
