Unitronics Unistream URD-0800 - Wiring Diagram; RJ45 Socket

4/19
Unitronics
16

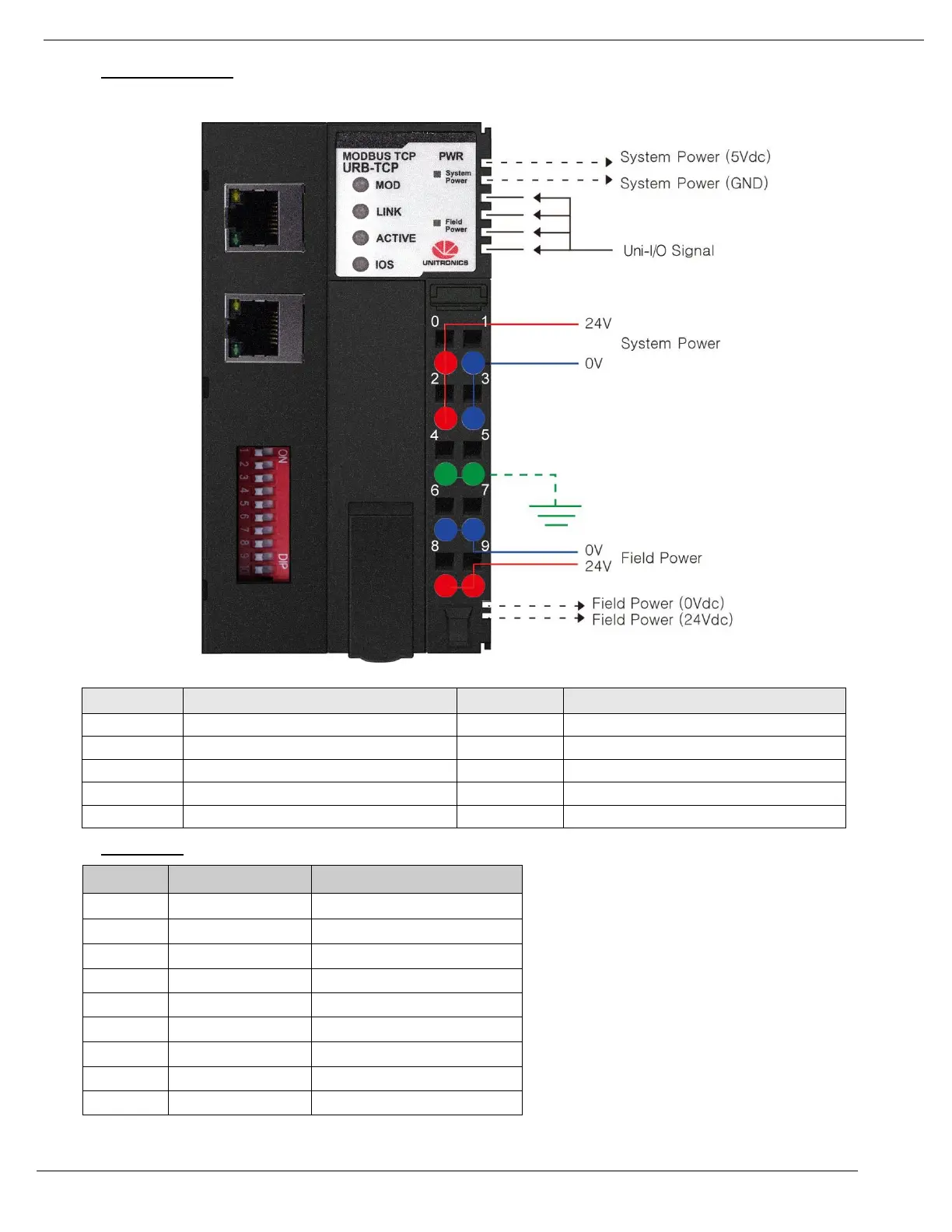

Wiring Diagram
Pin No.
Signal Description
Pin No.
Signal Description
0
System Power, 24V
1
System Power, Ground
2
System Power, 24V
3
System Power, Ground
4
F.G
5
F.G
6
Field Power, Ground
7
Field Power, Ground
8
Field Power, 24V
9
Field Power, 24V
RJ45 Socket
RJ-45
Signal Name
Description
1
TD+
Transmit +
2
TD-
Transmit -
3
RD+
Receive +
4
-
5
-
6
RD-
Receive -
7
-
8
-
Case
Shield
