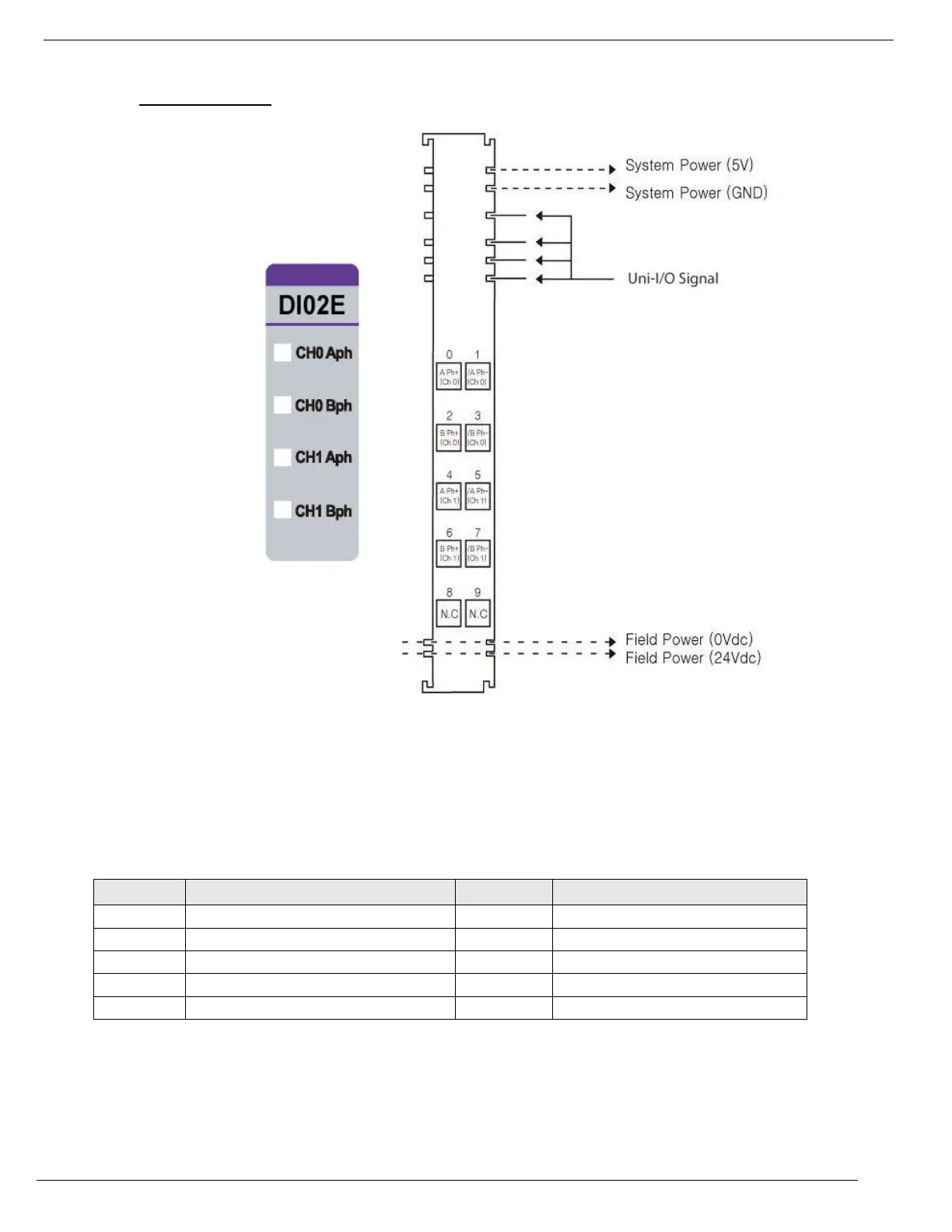

1. Wiring Diagram
Pin No.
Signal Description
Pin No.
Signal Description
0
Aph Input+ Ch# 0
1
/Aph Input - Ch# 0
2
Bph Input+ Ch# 0
3
/Bph Input - Ch# 0
4
Aph Input+ Ch# 1
5
/Aph Input - Ch# 1
6
Bph Input+ Ch# 1
7
/Bph Input - Ch# 1
8
N.C
9
N.C
