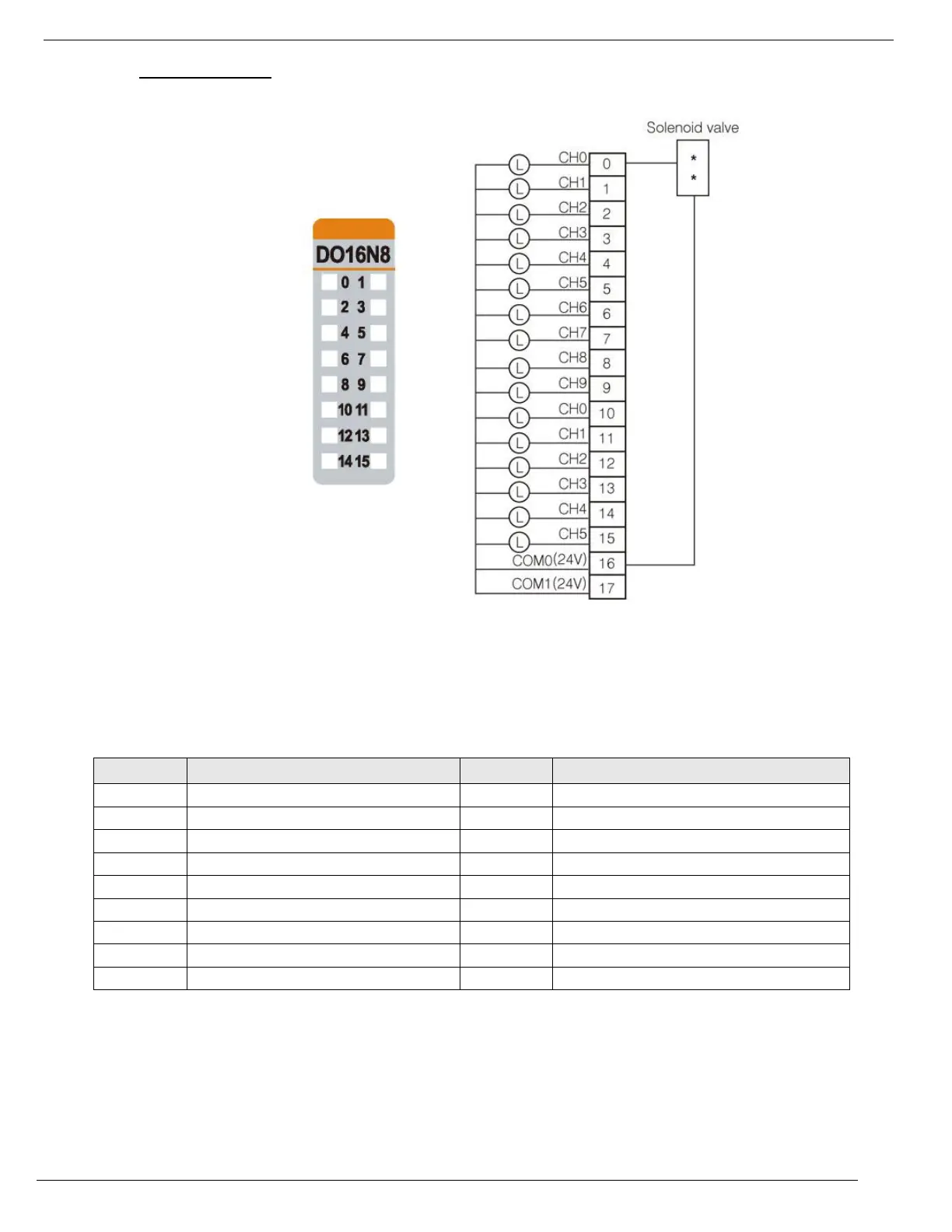

1. Wiring Diagram
Pin No.
Signal Description
Pin No.
Signal Description
0
Output 0
1
Output 1
2
Output 2
3
Output 3
4
Output 4
5
Output 5
6
Output 6
7
Output 7
8
Output 8
9
Output 9
10
Output 10
11
Output 11
12
Output 12
13
Output 13
14
Output 14
15
Output 15
16
Common (Field Power 24V)
17
Common (Field Power 24V)
