Quick start guide
Register thermostat with external sensor

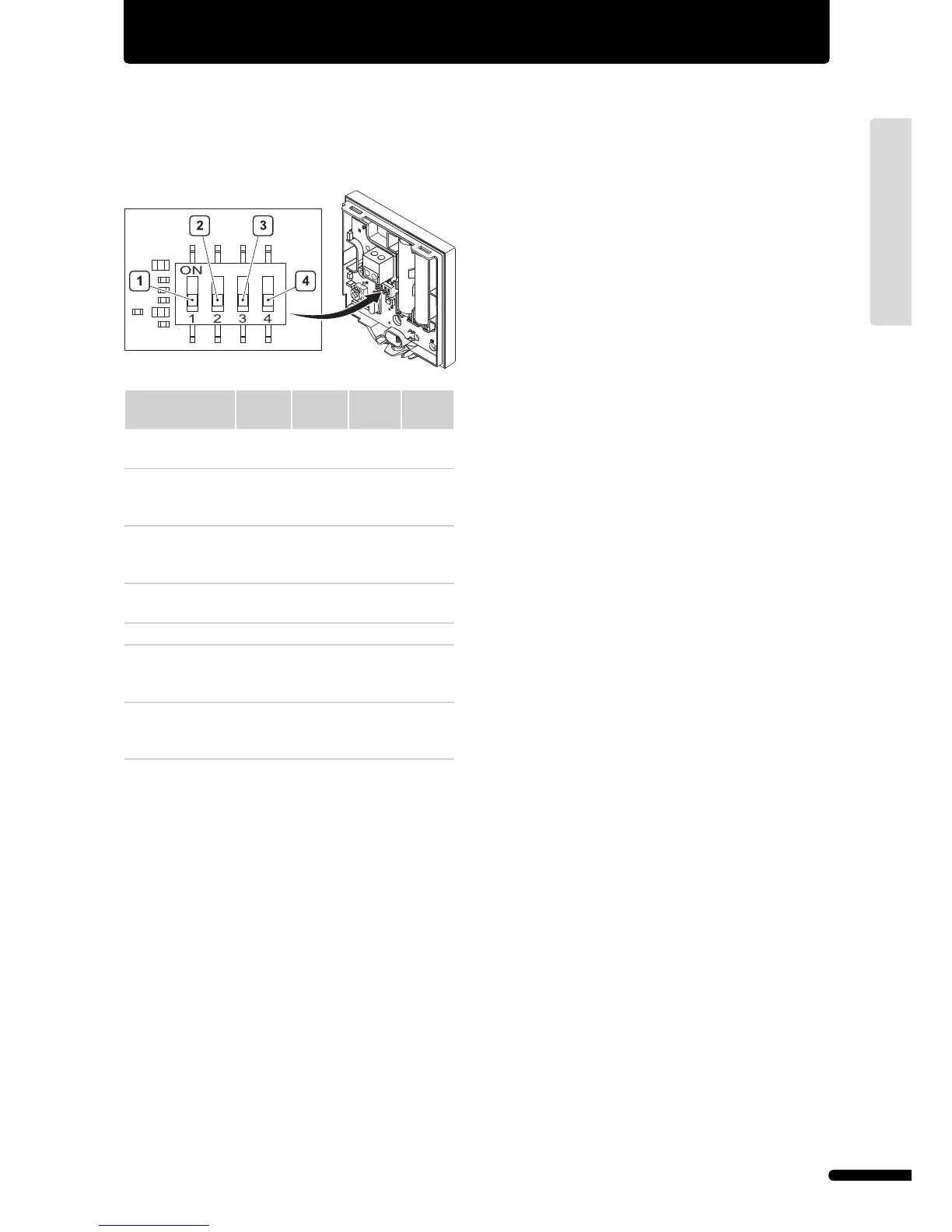

Before the thermostat is registered, the confi guration switches
on the thermostat must be set according to the way Uponor
Thermostat T-54 will be used:
Function
Switch
1
Switch
2
Switch
3
Switch
4
Used as a standard
room thermostat
Off Off Off Off
Used with a fl oor
sensor, max.
limitation
On
Off Off Off
Used with a fl oor
sensor, min.
limitation
On
Off Off
On
Used with an
outdoor sensor
Off
On
Off Off
Technical alarm Off Off
On
Off
Used with Uponor
Remote access
module R-56
Off Off Off
On
External (fl oor)
sensor for room
temperature
Off
On
Off
On
Test communication
1 Press and release the Test button on the controller. The
LEDs for all registered channels come on.
2 Press the registration button of each registered thermostat.
If communication is good, then the LEDs for the channels
registered to the thermostat go off.
3 To exit test mode, press the Test button on the controller.
Deregister single thermostats
1 Press and release the Test button on the controller. The
LEDs for all registered thermostats come on.
2 Press and hold the button of the chosen channel until the
channel LED goes off. The thermostat is now unregistered.
3 Press and release the Test button to exit. The test LED goes
off.
Deregister all thermostats (factory setting)
1 Press and release the Test button on the controller. The
LEDs for all registered thermostats comes on.
2 Press and hold the Test button on the controller until all
channel LEDs go off (can take several seconds).
3 Press and release the Test button to exit. The test LED goes
off.
Room by-pass (Uponor Interface I-76 only)
1 On the Uponor screen, select Main Menu > Settings >
Rooms > By Pass.
2 Choose controller.
3 Choose the room for the by-pass function.
Auto-balance (Uponor Interface I-76 only)
The auto-balance function removes the need for manual
balancing of the manifold at installation. The auto-balance
function
requires an Interface I-76 and is activated with
Installer level access.
1 On the Uponor screen, select Main Menu > Settings >
System Parameters > Auto Balance.
2 On the auto-balance screen, select Active and press OK.
The auto-balance function is now activated.
When Auto-balancing is used, all balancing valves on the
manifold must be fully open.
5
UPONOR CONTROL SYSTEM – INSTALLATION AND OPERATION MANUAL
UK English
