Page 6-2

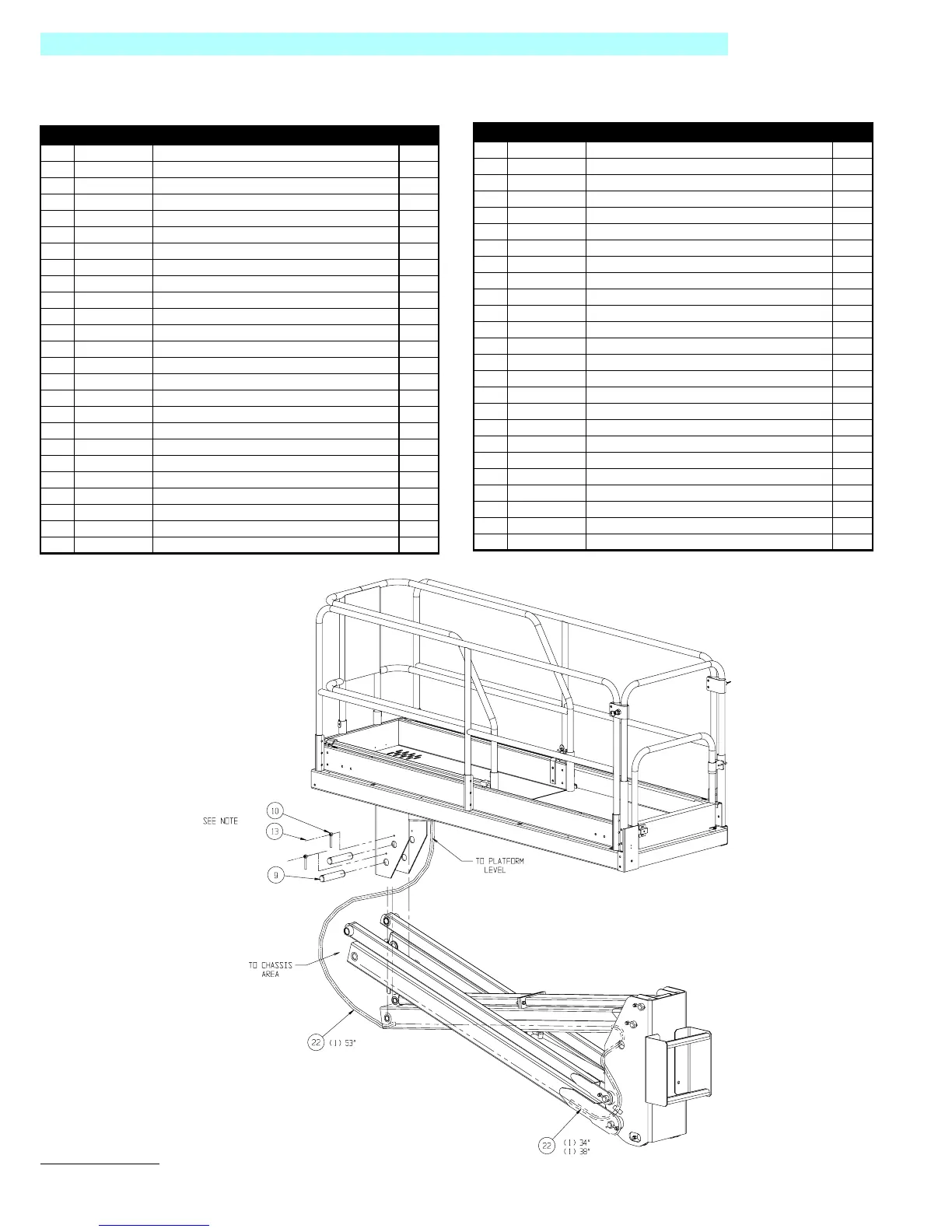

Illustrated Parts Breakdown -FinalAssembly
SL20
Final Assembly
101000-021
Drawing # 1 of 3
Item Part Description QTY.
1 101001-020 BASIC ASSEMBLY 1
2 101003-001 POWER MODULE ASSEMBLY 1
3 101005-021 CONTROL MODULE ASSEMBLY 1
4 066490-021 SWITCH ROLLER DOUBLE 1
5 011248-003 NUT HEX ESNA 10-24 2
6 013949-004 WASHER 1/4 STAR 2
7 065610-021 CONTROLLER ASSEMBLY 1
8 011709-008 SCREW 10-24 UNC X 1 2
9 101010-000 PIN - PLATFORM 2
10 065214-000 ROD END 2
11 101007-021 PLATFORM/GUARDRAIL ASSY 1
12 011254-012 SCREW, HHC GR5 3/8-16 UNC X 1 1/2 4
13 011254-006 SCREW, HHC GR5 3/8-16 UNC X 3/4 2
14 029418-099 WIRE, 12 AWG RED/BLK 5 FT
15 101180-020 HYDRAULIC SCHEMATIC REF
16 065616-023 ELECTRICAL SCHEMATIC REF
17 101179-020 HOSE KIT / INSTALLATION 1
18 101009-021 LABEL KIT / INSTALLATION 1
101009-220 LABEL KIT/ GERMAN
101009-320 LABEL KIT/FRENCH
101009-420 LABEL KIT/SPANISH
19 101238-000 CONTROL CABLE ASSEMBLY 1
20 101239-000 WIRE HARNESS ASSY, CHASSIS 1
21 101028-000 SHIM, 16GA AR
22 065369-099 HOSE GUARD 8 FT
23 064195-065 CABLE ASSEMBLY X 65 1
24 064195-044 CABLE ASSEMBLY X 44 1
25 064195-001 CABLE ASSEMBLY X 12 3
26 062125-011 CABLE ASSEMBLY X 9 3
27 064195-004 CABLE ASSEMBLY X 4 1
28 029461-099 WIRE, 14GA BLACK 10 FT
29 029620-002 CONNECTOR, BUTT 16-14GA 1
30 010154-000 COVER BATTERY TERMINAL 8
31 029601-015 CONNECTOR, RING 16-14GA 3/8 DIA. 3
32 064195-022 CABLE ASSEMBLY X 22 1
33 065746-000 CONTROLLER GUIDE 1
34 011252-006 SCREW 1/4-20 X 3/4 2
35 011248-004 NUT 1/4 - 20 ESNA
37 029620-003 CONNECTOR, BUTT 12-10GA INSL. 1
38 101236-000 VALVE BLOCK CABLE ASSY 1
39 101237-000 LOWER CONTROL CABLE ASSY 1
41 101212-000 CAP, TAMPER-PROOF
42 063965-001 CONNECTOR, GAGE 1
44 029601-021 CONNECTOR, RING 12-10GA 3/8 DIA. 4
45 101028-001 COMPRESSION SHIM, 18GA 2
46 101028-002 COMPRESSION SHIM, 20GA 3
48 029610-018 CONNECTOR, FORK 12-10GA #8 1
53 029435-099 WIRE 14 AWG 3 COND
54 029461-099 WIRE, BLK 14 AWG .5 FT
55 101008-020 DECK EXTENSION 1
Item Part Description QTY.
