Page 6-20

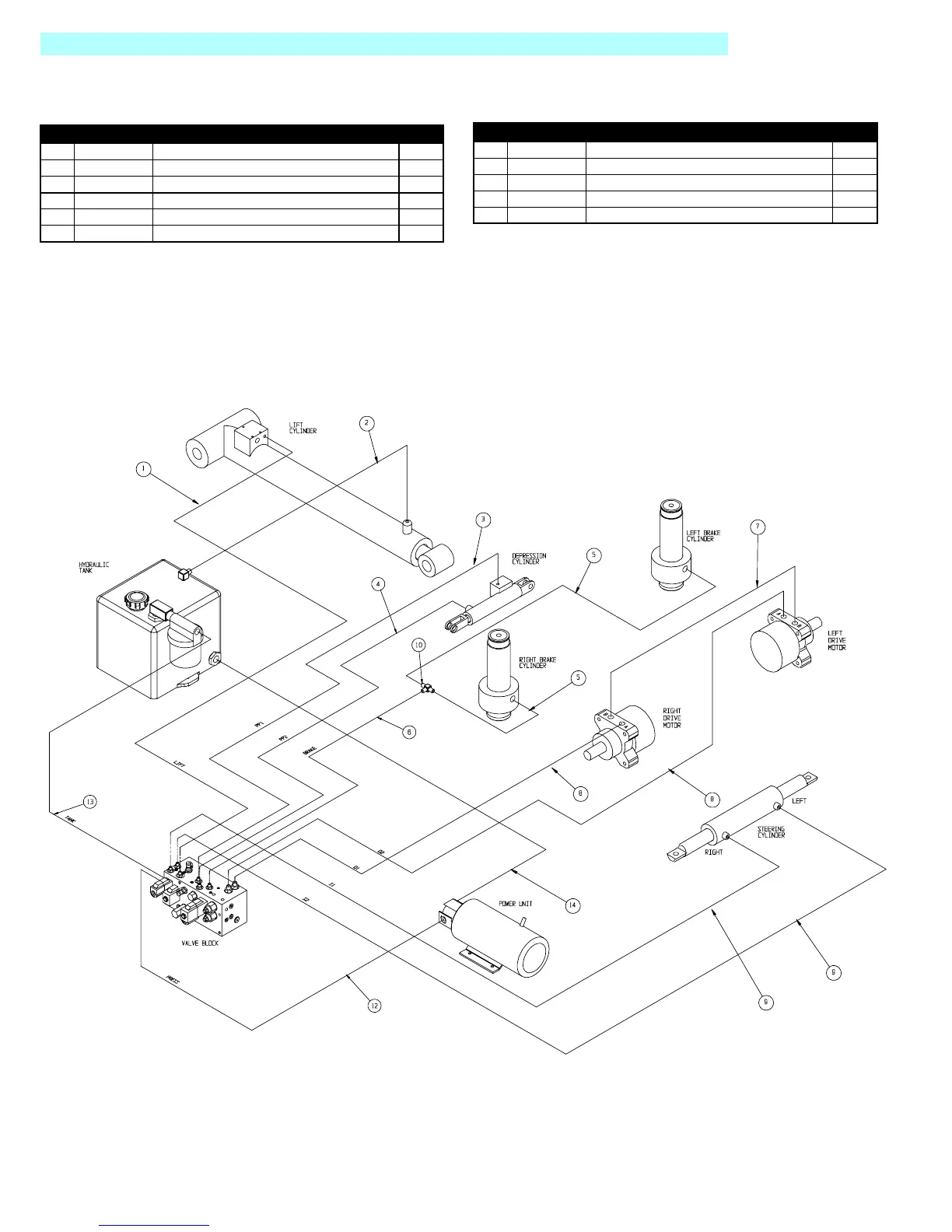

Illustrated Parts Breakdown - Hose Kit Installation
SL20
Hose Kit Installation
101179-020
Item Part Description QTY.
1 068965-206 HOSE ASSEMBLY, 3/8 DIA 6FJX-6FJX 90 X 206 1
2 060861-210 HOSE ASSEMBLY, 3/8 DIA 6FJX-6FJX X 210 1
3 069650-024 HOSE ASSEMBLY, 1/4 DIA 4FJX-4FJX 90 X 24 2
5 065234-021 HOSE ASSEMBLY, 1/4 DIA 4FJX-4FJX X 21 2
6 069650-041 HOSE ASSEMBLY, 1/4 DIA 4FJX-4FJX 90 X 41 1
7 060861-049 HOSE ASSEMBLY, 3/8 DIA 6FJX-6FJX X 28 1
8 068965-050 HOSE ASSEMBLY, 3/8 DIA 6FJX-6FJX 90 X 50 2
9 069650-046 HOSE ASSEMBLY, 1/4 DIA 4FJX-4FJX 90 X 46 2
10 020032-001 FITTING, TEE 4MJ-4MJ-4MJ REF
12 068965-015 HOSE ASSEMBLY, 3/8 DIA 6FJX-6FJX 90 X 15 2
14 061789-012 HOSE ASSEMBLY, 3/4 DIA 12FJX-12MP X 13 1
