Upright SL20 Series User Manual

Page 6-5

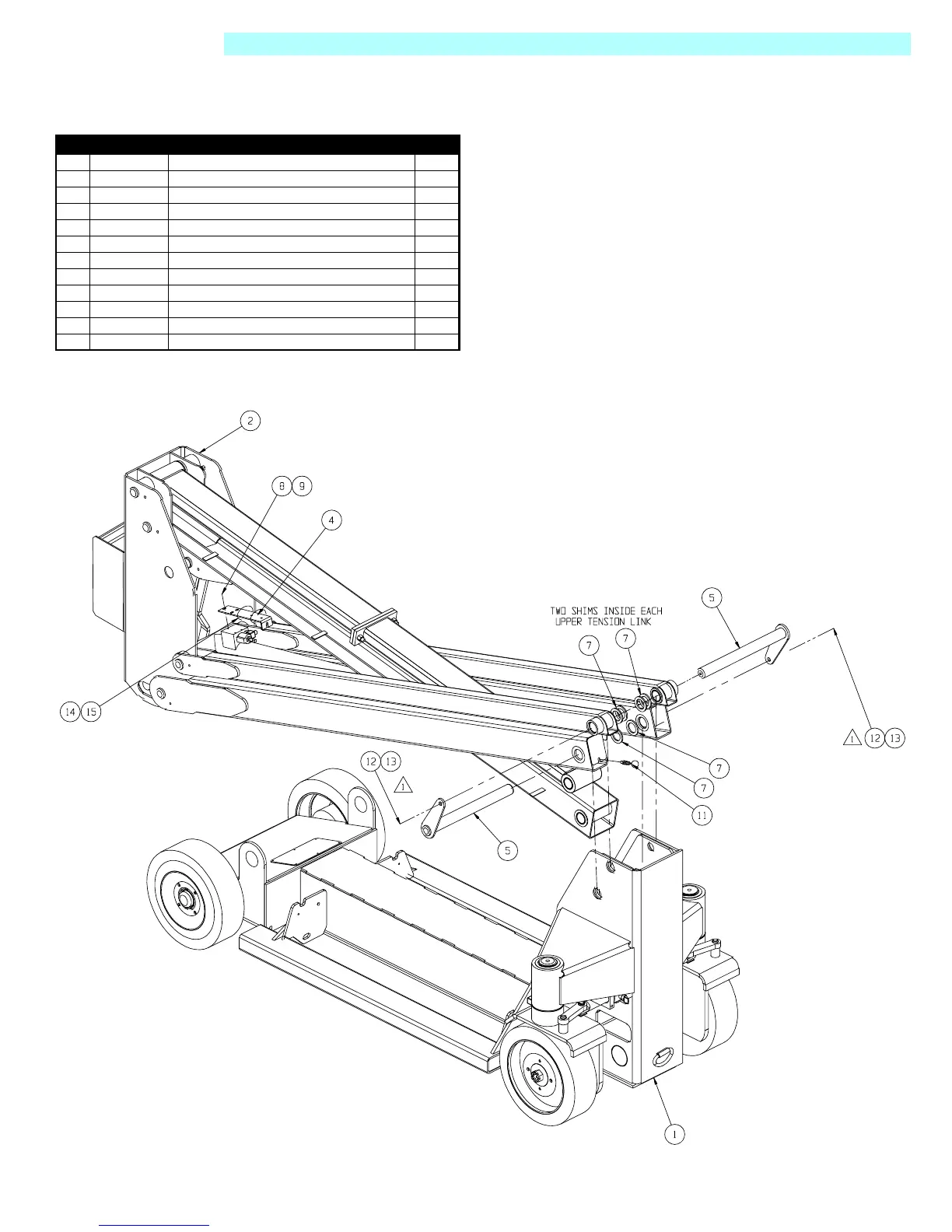

Illustrated Parts Breakdown -BasicAssembly
SL20
Basic Assembly
101001-020
Item Part Description QTY.
1 101002-020 CHASSIS ASSEMBLY 1
2 101004-020 LINKAGE ASSEMBLY 1
4 065770-000 BRACKET, CABLE 1
5 101042-000 PIN WELDMENT 2
7 101224-000 SHIM 6
8 011252-004 SCREW, 1/4-20 UNC HEX HD CAP X 1/2 3
9 011238-004 LOCKWASHER, 1/4 DIA SPLIT 3
11 065754-005 CABLE, EMERGENCY DOWN X 12’ -
12 011256-008 SCREW, 1/2-13 UNC HEX HD CAP X 1 2
13 011238-008 LOCKWASHER, 1/2 DIA SPLIT 2
14 015963-099 STRAP, EL -TY 2
15 015964-000 STRAP HEAD, EL -TY
