Upright SL20 Series User Manual

Page 6-19

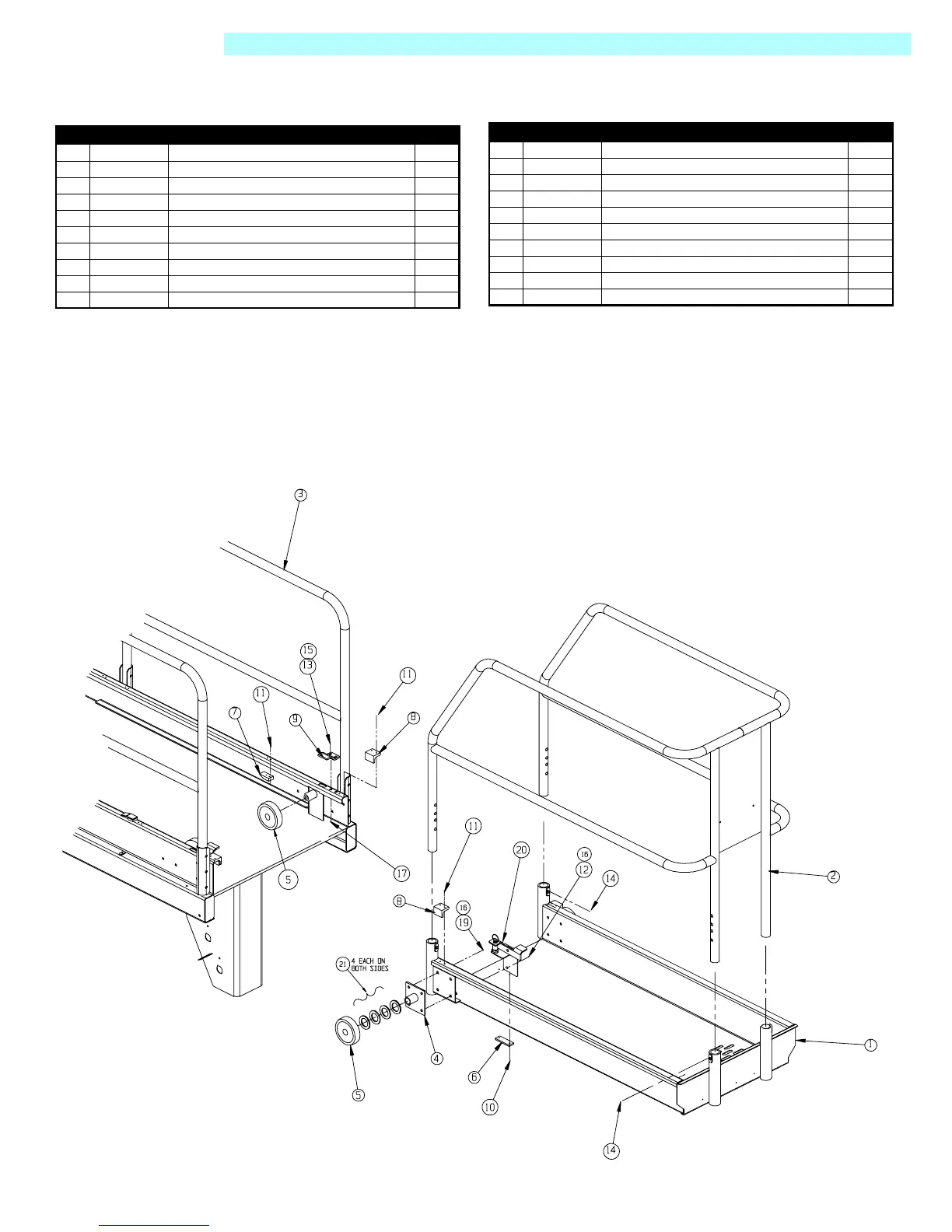

Illustrated Parts Breakdown -RollOutDeckExtension
SL20
Roll Out Deck Extension
10108-020
Item Part Description QTY.
1 101130-000 DECK EXTENTION WELDMENT 1
2 101132-000 MAIN GUARDRAIL WELDMENT 1
3 101007-000 PLATFROM ASSEMBLY REF
4 066256-000 ROLLER MOUNT WELDMENT 2
5 101106-000 ROLLER 4
6 066198-000 WEAR PAD 1
7 066193-000 STOP 4
8 066170-000 WEAR PAD 4
9 066407-000 BRACKET 2
10 026553-004 RIVET, 3/16 DIA X 3/8 GRIP 2
11 026553-008 RIVET, 3/16 DIA X .50 GRIP 16
12 011254-014 SCREW, 3/8-16 UNC HEX HD CAP X 1 3/4 2
13 011252-006 SCREW, 1/4-20 UNC HEX HD CAP X 3/4 4
14 066171-003 BOLT, 3/8-16 UNC TAP X 2 1/4 4
15 011240-004 WASHER, 1/4 DIA STD FLAT 4
16 011238-006 WASHER, 3/8 DIA SPLIT LOCK 8
17 011248-004 LOCKNUT, 1/4-20 UNC HEX 4
19 011254-012 SCREW, 3/8-16 UNC HEX HD CAP X 1 1/2 6
20 067185-000 DECK STOP ASSEMBLY 1
21 003570-001 WASHER SAE 1-1/4 ZINC PLATED 1
