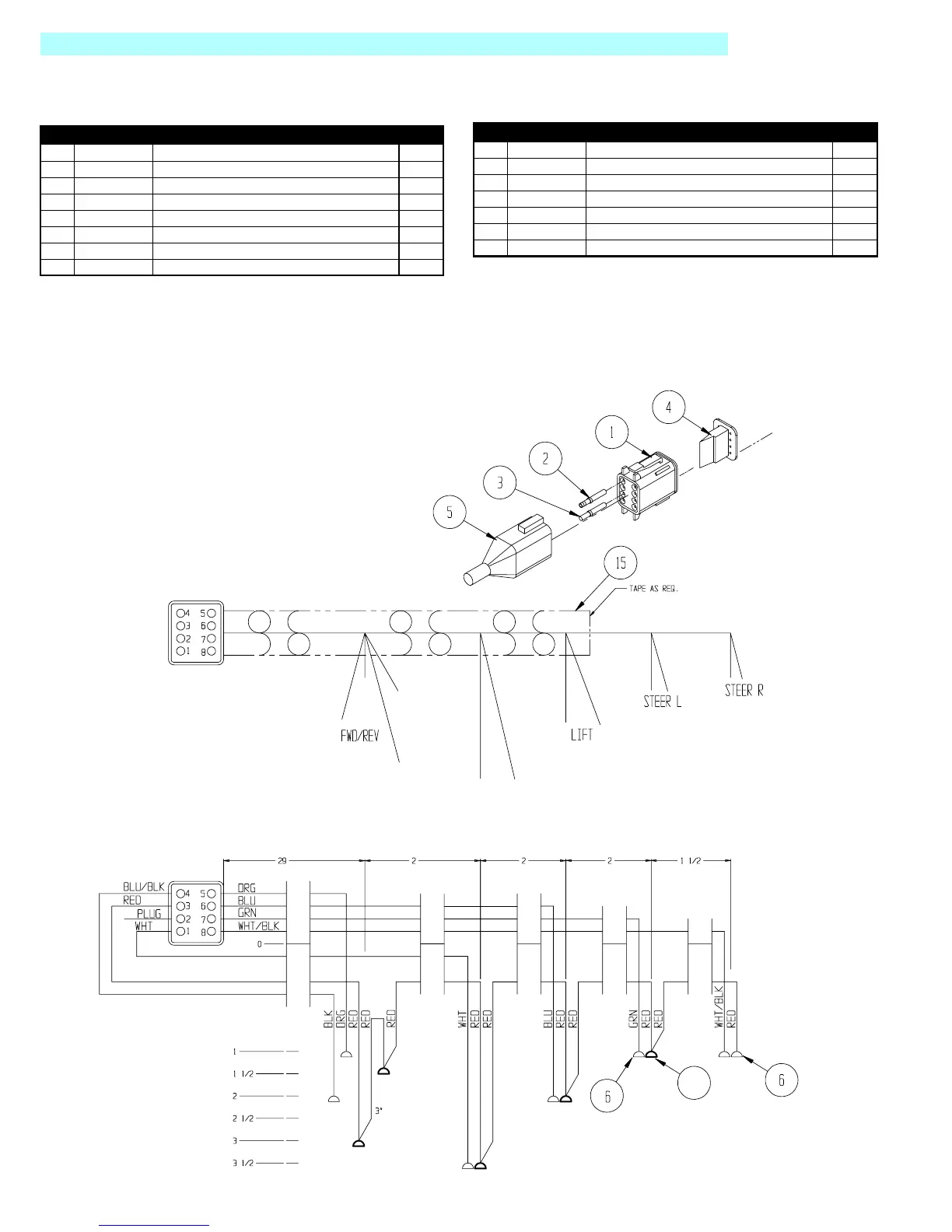

Illustrated Parts Breakdown - Valve Block Cable Assembly (J2)
SL20
Valve Block Cable Assembly (J2)
101236-000
Item Part Description QTY.
1 068760-008 8 SOCKET PLUG, DEUTSCH#DT06-8SA 1
2 068762-001 CONTACT SOCKET, DEUTSCH#0460-209-16141 7
3 068764-000 SEAL PLUG, DEUTSCH#114017 1
4 068761-009 LOCKING WEDGE, DEUTSCH#W8S 1
5 068908-002 BOOT DT , DEUTSCH#DT8S-BT 1
6 029931-003 CONN FM PUSH 1/4 14-16 12
7 029479-099 WIRE 16 AWG WHT/BLK 3.5
8 029452-099 WIRE 16 AWG BLU/BLK 3
Depression
Mechanism
BLU/
14
9 029450-099 WIRE 16 AWG BLU 3
10 029457-099 WIRE 16 AWG GRN 3.5
11 029453-099 WIRE 16 AWG ORG 2.5
12 029451-099 WIRE 16 AWG WHT 3
13 029454-099 WIRE 16 AWG RED 4
14 029931-005 CONN FM PUSH 1/4 10-12 GA
15 068642-099 LOOM 1/2 3
Item Part Description QTY.
To Next Page
