Upright SL20 Series User Manual

Page 6-18

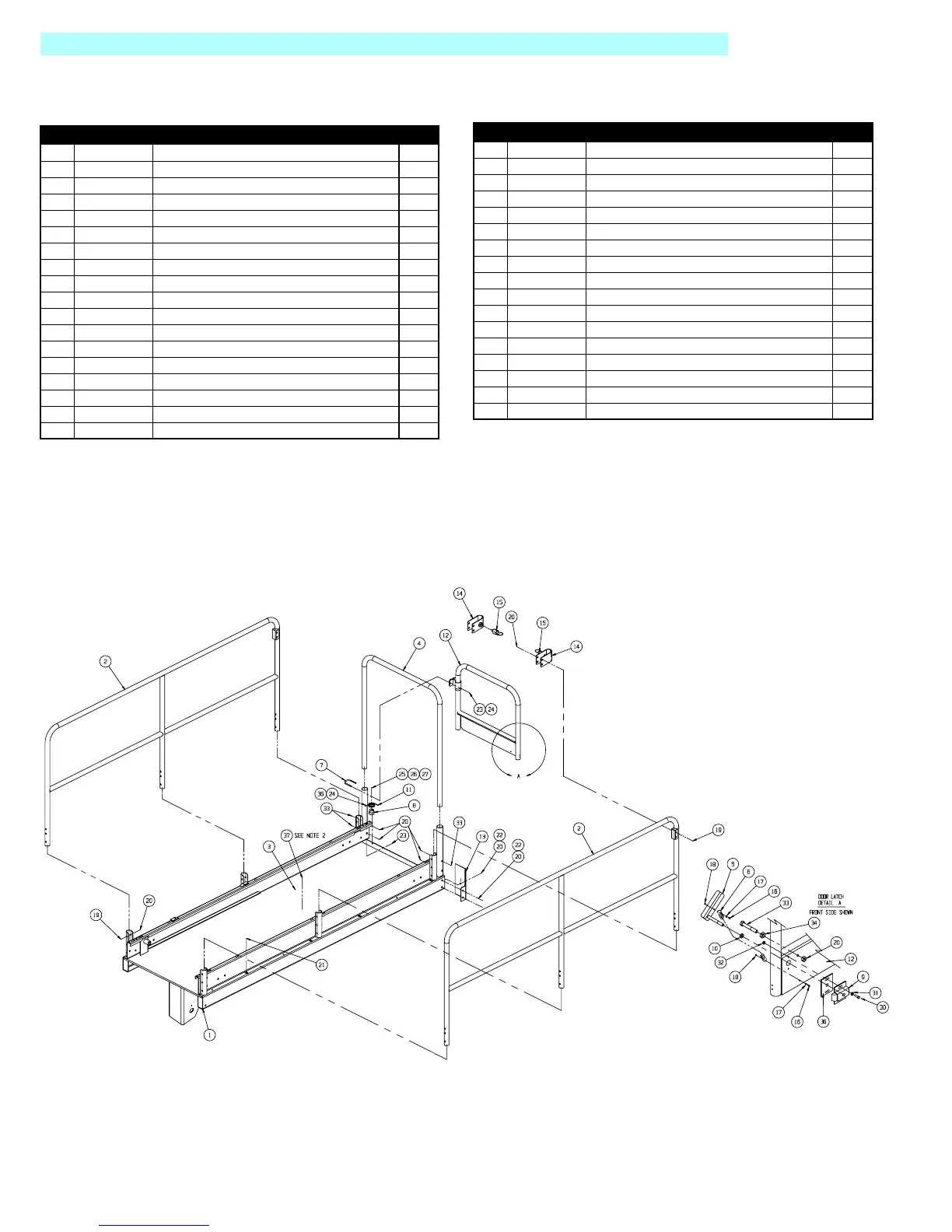

Illustrated Parts Breakdown - Platform Assembly
SL20
Platform Assembly
101007-021
Item Part Description QTY.
1 101006-020 PLATFORM WELDMENT 1
2 101101-010 SIDE RAIL WELDMENT 2
3 024611-033 DECK, PLYWOOD 1
4 101164-002 END RAIL - EURO 1
5 030745-002 ACTUATOR WELDMENT 1
6 012097-018 SPRING 1
7 027899-000 U-BOLT 1
8 065784-000 DOOR SLIDE 1
9 062791-000 SLAM LATCH 1
10 063947-008 NUT, M8 X 1.25 HEX 1
11 066526-001 SPRING 1
12 101119-000 GATE WELDMENT 1
13 101124-000 GATE STOP 1
14 101233-000 LATCH WELDMENT 2
15 003570-002 ASSY PULL PIN 2
16 011708-004 SCREW MACH RD HD 8-32 X 1/2 2
17 011240-002 WASHER #8 STD FLAT 2
18 011248-002 NUT HEX ESNA #8-32 2
19 011254-018 SCREW, 3/8-16 UNC HEX HD CAP X 2 1/4 16
20 011248-006 LOCKNUT, 3/8-16 UNC HEX 21
21 011252-004 SCREW, 1/4-20 UNC HEX HD CAP X 1/2 8
22 011254-008 SCREW, 3/8-16 UNC HEX HD CAP X 1 3
23 011248-004 LOCKNUT, 1/4-20 UNC HEX 6
24 011240-004 WASHER, 1/4 DIA STD FLAT 3
25 011248-005 LOCKNUT, 5/16-18 UNC HEX 2
26 011240-005 WASHER, 5/16 DIA STD FLAT 2
27 011253-016 SCREW, 5/16-18 UNC HEX HD CAP X 2 1
28 011253-006 SCREW, 5/16-18 UNC HEX HD CAP X 3/4 1
30 011275-004 SCREW, #10-32 UNF HEX HD CAP X 1/2 2
31 011240-003 WASHER, #10 STD FLAT 2
32 011249-003 LOCKNUT. #10 -32 UNF HEX 2
33 011254-020 SCREW HHC 3/8-16 X 2 1/2 1
34 020795-012 NUT HEX JAM 3/8-16 1
36 062791-000 SPACER SLAM LATCH 1
37 026554-004 RIVET 1/4 DIA X 1/2 - 5/8 GRIP 10
Item Part Description QTY.
