Vaisala DRYCAP DMT143 - DMT143 with NPT Thread; Figure 2 DMT143 Parts - Model with NPT Thread

2.3.2 DMT143 with NPT Thread
1
2
3
4
5
6
7

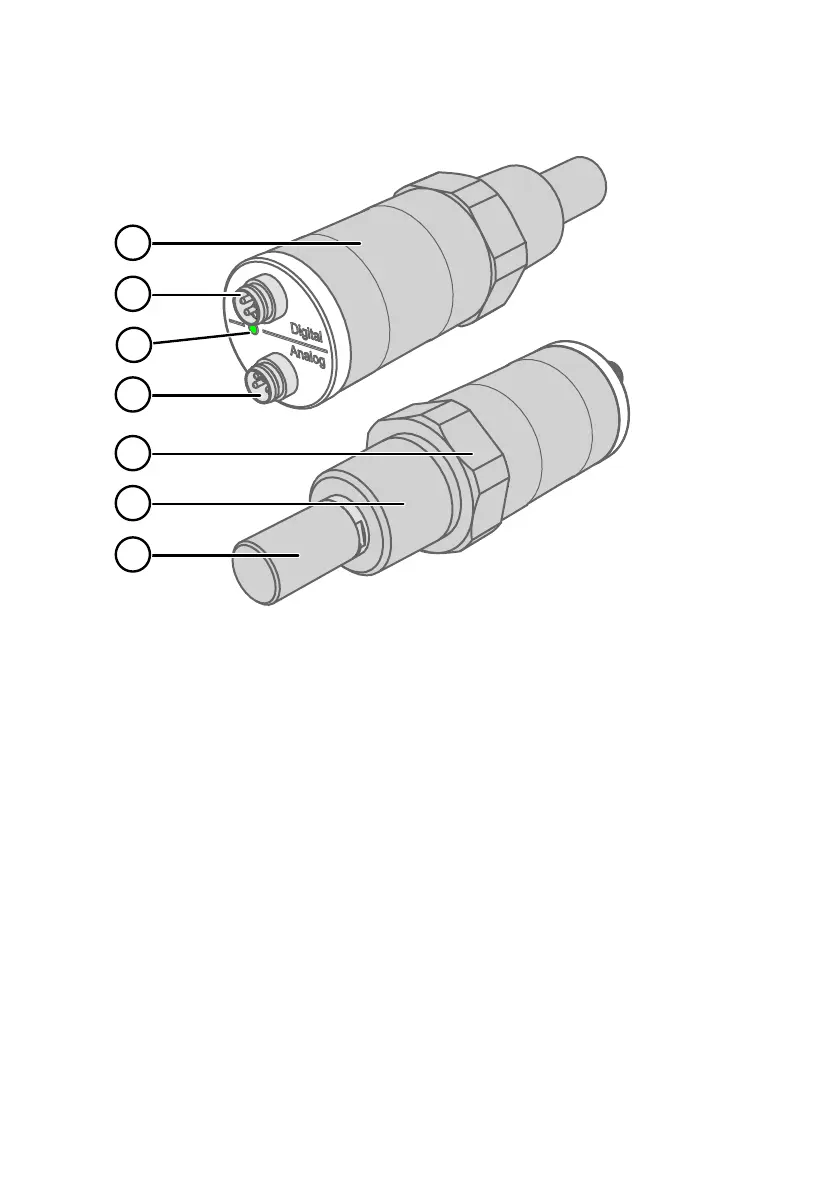

Figure 2 DMT143 Parts – Model with NPT Thread
1 Transmitter body. Type label is applied here.
2 Digital output: non-isolated RS-485
3 Alarm LED
4 Analog output
5 30 mm nut
6 Connection thread: NPT 1/2"
7 DRYCAPâ 180D sensor protected with sintered filter
