Vaisala HMD60 Series - Transmitter Parts

2.5 Transmitter Parts
1
2
3
4
5
6
7
8
9

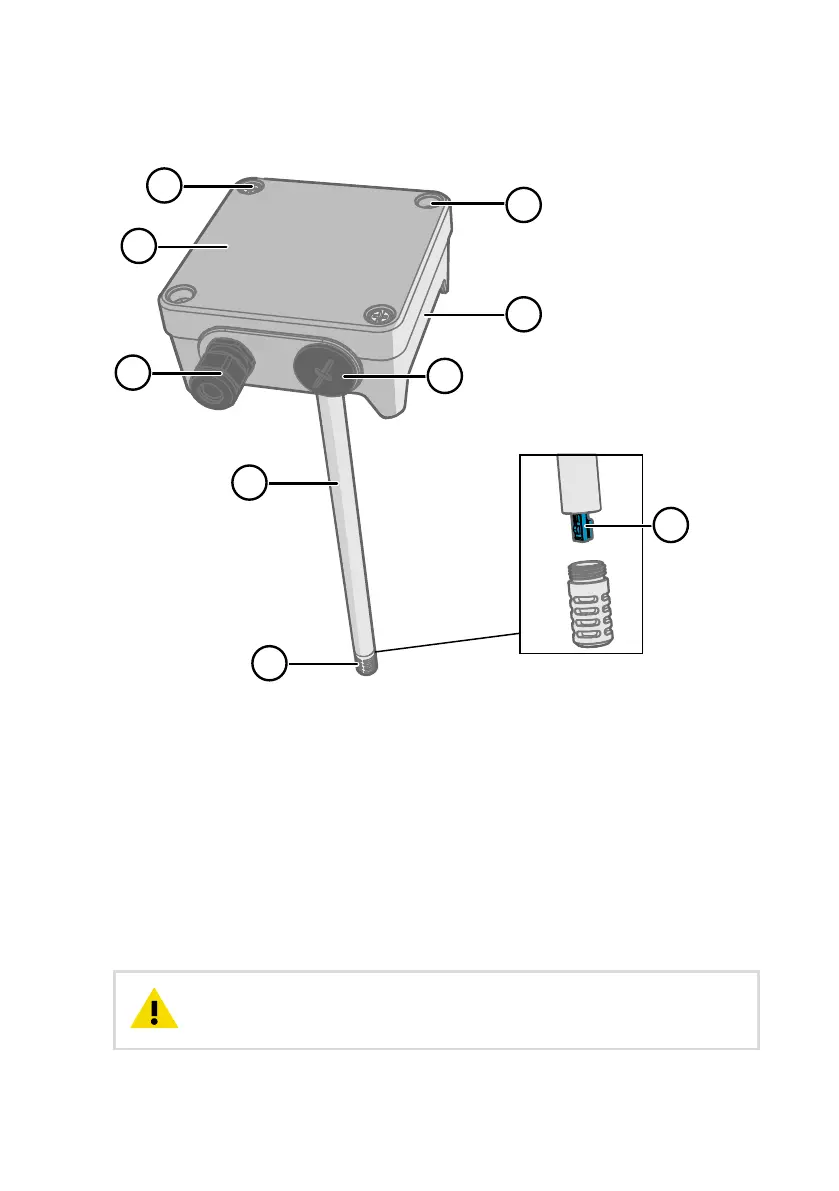

Figure 1 HMD65 Transmitter Parts Overview
1
Captive screw (2 pcs, cross-head) for attaching the lid of the transmitter.
2 Screw (2 pcs) for mounting the transmitter on the installation surface.
3 Transmitter lid. Open the captive screws of the lid to access input and output electronics.
4 Transmitter base. Contains the input and output connectors on the transmitter board: see
Transmitter Board (page 9).
5 Cable gland (M16 x 1.5 lead-through) for leading wires into the transmitter.
6 Alternative lead-through (M20 x 1.5) for wiring.
7 Probe body. Long (shown) and short probe options available: see Transmitter Dimensions
(page 13).
8 Probe filter (default option: AISI 316L stainless steel).
9 HUMICAPâ sensor inside the probe filter.
Do not touch the sensor element.CAUTION!
Chapter 2 – Product Overview
7
